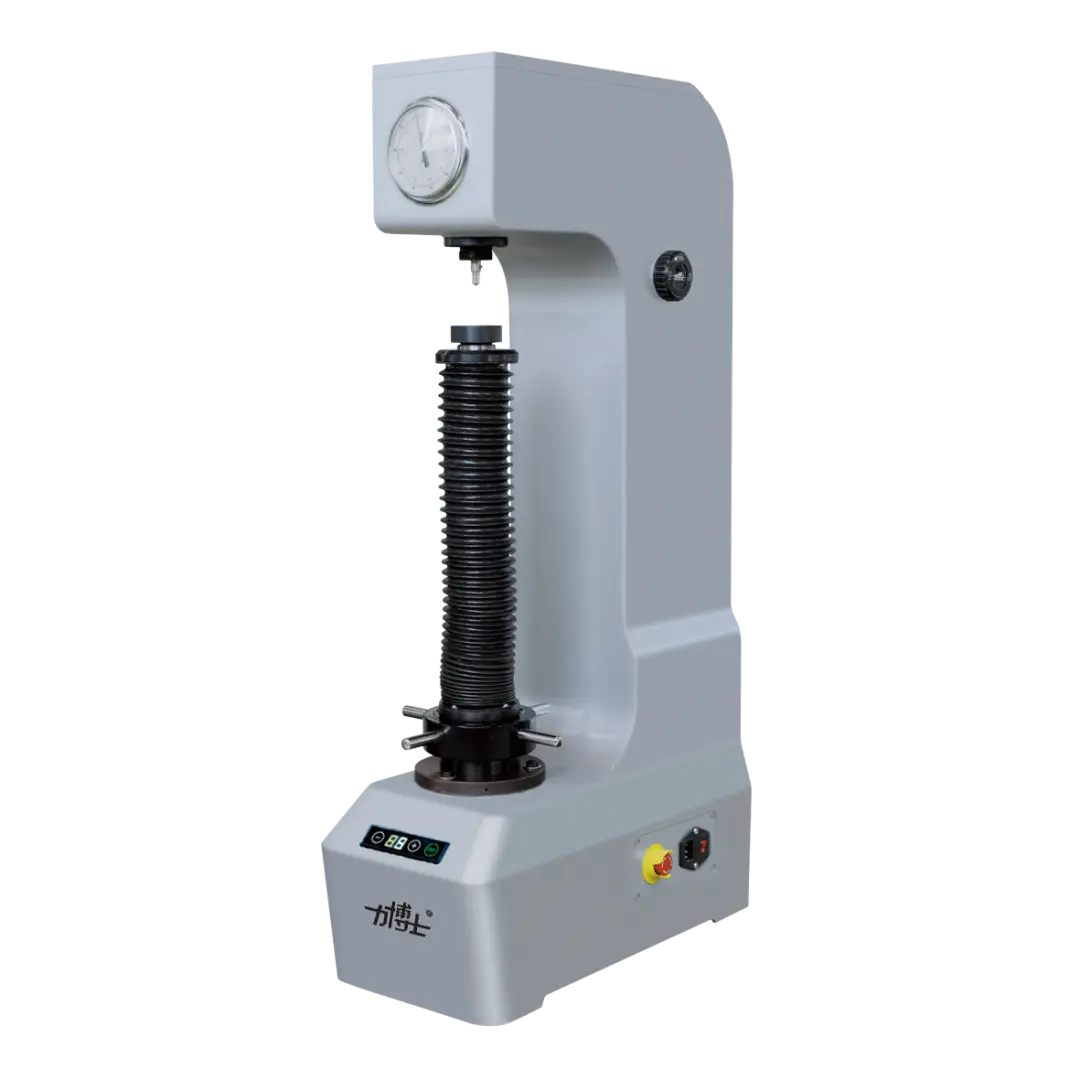

HRD-150B Heightened Rockwell Hardness Tester

Discover Veiyee HRD-150B heightened Rockwell hardness tester. Featuring an extended 400mm test height and automatic electric operation, it is the perfect solution for large workpieces.

Product Information

Veiyee HRD-150B Heightened Rockwell Hardness Tester: The Ultimate Solution for Large Workpieces

In the mechanical manufacturing and metallurgical industries, material hardness testing is a critical step that determines product reliability. However, inspecting oversized components, long shafts, or bulky molds with standard testing equipment has always been a major challenge. To address this industrial pain point, Veiyee (China) introduced the HRD-150B Rockwell hardness tester. Featuring a specialized heightened design, this machine has become a top choice for heat treatment workshops and quality control laboratories worldwide.

1. What is the HRD-150B Heightened Rockwell Hardness Tester?

The HRD-150B is an electro-mechanical Rockwell hardness tester that combines high-rigidity mechanical engineering with automated electrical control. The letter “B” in the model name signifies its “Heightened” or extended-axis capability. Unlike standard hardness testers that limit sample height to around 170mm, the HRD-150B provides a massive vertical testing space of up to 400mm.
This model fully supports the three classic Rockwell scales: HRA, HRB, and HRC. The entire testing cycle—including preliminary loading, main load application, dwell time, and unloading—is driven automatically by an electric motor. This automated process optimizes cycle times and eliminates human errors during physical operation.

2. Technical Specifications of the HRD-150B Model

To help quality control managers evaluate the compatibility of this machine with their production requirements, here are the detailed technical specifications:
  • Supported Hardness Scales: HRA, HRB, HRC
  • Preliminary Test Force (Minor Load): 10 kgf (98.07 N)
  • Total Test Forces (Major Loads): 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N)
  • Maximum Testing Height (Extended Capacity): 400 mm
  • Throat Depth (Indenter Center to Machine Body): 165 mm
  • Operation Control: Automatic loading, dwelling, and unloading via electric motor
  • Dwell Time Range: Adjustable from 0 to 60 seconds
  • Hardness Indication: Direct reading on an analogue dial gauge (Dial display)
  • Compliance Standards: GB/T230.2, ISO 6508-2, ASTM E18

3. Outstanding Advantages of the Veiyee HRD-150B

Ultra-Large Testing Space

The primary advantage of this heightened Rockwell hardness tester is its ability to accommodate oversized parts. The 400mm vertical capacity allows operators to easily place large crankshafts, heavy-duty gears, forging dies, or thick metal blocks onto the anvil without space constraints. This eliminates the need to cut expensive samples down to size just to fit inside a standard machine.

High-Precision Automatic Motor Drive

Instead of relying on a manual hand lever—which often introduces human error due to inconsistent pulling speeds—the HRD-150B utilizes an electric motor drive system. Once the operator sets the initial load and presses the start button, the machine applies the major load smoothly, holds it for the precise pre-set dwell time, and unloads automatically. This uniform process ensures maximum repeatability and data integrity.

Heavy-Duty Cast Iron Construction

The structural body of the machine is manufactured using high-quality cast iron. This heavy-duty casting acts as a natural dampener against ambient workshop vibrations. Inside the machine, a friction-free spindle system transfers the testing force directly to the diamond cone or steel ball indenter with absolute precision, ensuring long-term mechanical stability.

4. Practical Industrial Applications

Thanks to its robust construction and extended dimensions, the HRD-150B Rockwell hardness tester is widely used in multiple industrial sectors:
  • Heat Treatment Industry: Verifying the superficial and core hardness of steel parts after quenching, nitriding, carburizing, or high-frequency induction hardening (using the HRC scale).
  • Machining and Tooling: Inspecting heavy molds, long shafts, and rough steel castings before they undergo high-precision CNC machining.
  • Metallurgy and Foundries: Testing softer metals like copper alloys, aluminum alloys, and malleable cast iron (using the HRB scale), as well as ultra-hard materials like cemented carbides (using the HRA scale).

5. Conclusion

Although the HRD-150B relies on an analogue dial gauge that requires the operator to read results manually, it remains a highly valuable investment. The machine perfectly balances the precision of an automated electric drive, an extra-large vertical clearance, and a highly competitive price point from Veiyee China.
If your facility is searching for a dependable, cost-effective, and heightened Rockwell hardness tester capable of handling heavy industrial workloads, the Veiyee HRD-150B is an exceptional choice.
