Comprehensive RoHS 2.0 Compliance Testing Solutions: Choosing the Optimal Conoma Instrument for Factories and Testing Laboratories
In the context of the global manufacturing industry continually tightening technical barriers to environmental protection, controlling hazardous chemical substances in electrical and electronic products is no longer just an advantage—it has become a prerequisite for business survival. One of the most stringent and widespread regulations worldwide today is the RoHS 2.0 Directive (Restriction of Hazardous Substances). To achieve and maintain compliance, enterprises must strictly implement RoHS 2.0 compliance testing from raw material procurement to finished product outbound delivery.
However, every manufacturing facility faces a unique set of operational challenges: large-scale production plants require rapid screening speeds; small and medium-sized enterprises (SMEs) need to optimize capital expenditure and physical space; while high-end analytical laboratories (Testing Labs) require absolute precision with legal and regulatory validity. To address these diverse industry demands, Conoma (Shenzhen Junhuiteng Technology Co., Ltd.) has developed a versatile ecosystem of specialized analytical instruments.
This comprehensive guide delivers an in-depth analysis of how to select the most suitable Conoma testing instrument tailored to the specific requirements of your factory floor or analytical laboratory, helping your business optimize quality control workflows and enhance international market competitiveness.
1. Understanding the RoHS 2.0 Directive and the Critical Importance of Compliance Testing
What is the RoHS 2.0 Directive and its Strict Threshold Limits?
The original RoHS Directive (2002/95/EC) restricted only 6 hazardous substances: Lead (Pb), Mercury (Hg), Cadmium (Cd), Hexavalent Chromium (Cr⁶⁺), Polybrominated Biphenyls (PBB), and Polybrominated Diphenyl Ethers (PBDE).
With the enforcement of the updated RoHS 2.0 Directive (2011/65/EU) and its subsequent amendments, this restricted list was expanded to include 4 hazardous phthalate esters (plasticizers commonly found in polymers): BBP, DBP, DEHP, and DIBP. The regulatory threshold for these phthalates is exceptionally low, strictly capped at a maximum concentration of 0.1% (1000 ppm) by weight in homogeneous materials.
High Risks of Skipping In-House Compliance Testing
If a company’s products are found to contain restricted substances above the legal limit during customs inspection in destination markets like the European Union (EU), the United States (under California Proposition 65 regulations), or East Asian countries, the consequences are devastating:
  • The entire product shipment will be confiscated, impounded, or ordered for immediate destruction at the port of entry.
  • The manufacturing enterprise will face catastrophic financial penalties and legal liability.
  • Severe damage to brand reputation, often resulting in being blacklisted by global electronic components distributors and major retail chains.

Consequently, establishing a proactive, internal quality control workflow using dedicated RoHS 2.0 compliance testing hardware at your own production site or central testing laboratory represents the most secure and sustainable corporate strategy.
2. The Advanced RoHS 2.0 Compliance Testing Instrument Ecosystem by Conoma
Conoma, a premier brand under Shenzhen Junhuiteng Technology Co., Ltd., is an industry-leading pioneer dedicated to R&D and manufacturing of environmental compliance instrumentation. Conoma’s core competitive advantage lies in its extensive diversification of analytical technologies: ranging from standard High-Performance Liquid Chromatography (HPLC) and Gas Chromatography-Mass Spectrometry (GC-MS) to disruptive innovations like Pyrolysis Gas Chromatography (Py-GC) and integrated automation powered by Artificial Intelligence (AI).
Conoma systems not only comply fully with major international testing standards—such as IEC 62321, T/CESA 1063-2019, and SJ/T 11920-2023—but are also ergonomically and operationally optimized to align with the specific infrastructure and workforce skill levels of various industrial enterprises.
3. Selecting RoHS 2.0 Compliance Testing Systems Based on Factory Floor Requirements
For direct production facilities—particularly injection molding plants, wire and cable extruders, electronic component manufacturers, toy makers, textiles, and hardware producers—the core priorities for testing hardware are: rapid throughput, simple user operation (no advanced degree required for operators), low maintenance overhead, and no requirement for complex chemical chemical-handling environments [4].
Conoma offers two specialized systems engineered explicitly for busy production environments:
3.1. Conoma PY-GC90 Pyrolysis Gas Chromatography Instrument – The Speed Champion for Production Workshops
When a factory needs to screen hundreds of incoming resin batches, plastic films, or cable jackets daily, the Conoma PY-GC90 is the ultimate solution.
  • Core Analytical Technology: The system integrates pyrolytic thermal desorption technology with rapid gas chromatographic separation and detection. It is fine-tuned to quickly isolate and quantify the 4 critical regulated phthalates (BBP, DBP, DEHP, and DIBP).
  • Direct Solid-State Testing – Zero Pretreatment Required: This is the defining feature that sets the PY-GC90 apart from traditional analytical instruments on the factory floor. Operators simply cut a tiny solid fragment from the sample material, drop it into the sample cup, and load it into the machine. There is absolutely no need to use hazardous acids or organic solvents to dissolve the polymer sample.
  • Ultra-Fast Turnaround Time: Reliable qualitative and quantitative analysis reports are completely generated and available within just 18 minutes.
  • Maximum Operational Cost Reduction: Factories do not need to install complex laboratory ventilation or exhaust extraction systems. Because no chemical reagents are required, consumption expenses are virtually eliminated, and general workshop employees can operate the system flawlessly after a brief training session.

3.2. Conoma EGC-PRO AI 9000 Fully Automated Integrated System – For Smart Manufacturing & Industry 4.0
For high-capacity manufacturing complexes running continuous Quality Control (QC) shifts, the EGC-PRO AI 9000 completely redefines the workflow of RoHS 2.0 compliance testing.
  • All-in-One Hardware Integration: The system integrates an automated liquid infusion pump, an online degassing module, a fully automated purge and plunger cleaning mechanism, precise column temperature control, and a built-in high-performance database workstation computer operated via a Full HD touchscreen.
  • 24/7 Unattended Autonomous Operation: Empowered by intelligent AI sub-systems and real-time safety monitoring sensors, the system can continuously load samples, execute tests, clean its internal flow lines, and monitor for alarms day and night without requiring human presence.
  • One-Click Instant Report Generation: Equipped with Conoma’s leading specialized RoHS 2.0 analysis software, users can compile and print the inspection report with a single tap on the screen, entirely removing the risk of manual mathematical calculation errors.

4. Selecting RoHS 2.0 Compliance Testing Systems for Advanced Analytical Laboratories
In contrast to factory floors, advanced analytical laboratories (such as corporate central R&D centers, independent third-party testing organizations, and national research institutes) prioritize absolute accuracy, ultimate detection limits, multi-structural structural analysis, and the strict legal defensibility of data [2]. Their data is used to issue certifications for global customs clearance or resolve compliance disputes.
Conoma meets these elite requirements with two heavy-duty analytical instruments:
4.1. Conoma GC-MS7220 Gas Chromatography-Mass Spectrometry System – The “Gold Standard” of Organic Analysis
In chemical analysis, GC-MS represents the definitive baseline methodology. The Conoma GC-MS7220 is a high-performance single-quadrupole system engineered to serve as the benchmark for definitive RoHS 2.0 compliance testing.
  • Comprehensive Analysis Coverage: The instrument effortlessly quantifies the 4 primary Phthalate esters while simultaneously analyzing challenging flame retardants like Polybrominated Biphenyls (PBBs), Polybrominated Diphenyl Ethers (PBDEs), Azo dyes (AZO), and Short-Chain Chlorinated Paraffins (SCCP).
  • Near-Absolute Detection Sensitivity: The single-quadrupole mass spectrometer boasts an extraordinary detection limit of under 10⁻¹² g, surpassing mainstream competitive products globally. This delivers qualitative and quantitative data of the highest legal and regulatory caliber, fully adhering to international standard IEC 62321-8:2017.
  • Operational Demands: The system requires comprehensive sample preparation workflows, including ultrasonic extraction or Soxhlet extraction using chemical solvents. It must be housed within a regulated laboratory environment and operated by skilled laboratory technicians well-versed in mass spectrometry software.

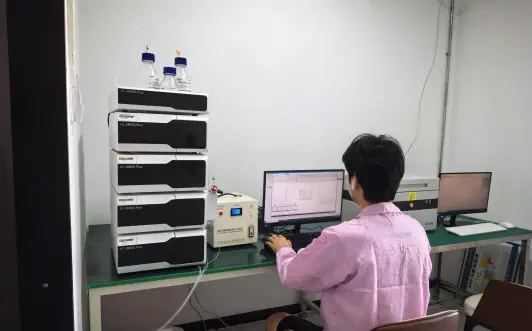

4.2. Conoma LC-2800G Plus Comprehensive Organic Compound Tester (HPLC)
If your laboratory requires a traditional High-Performance Liquid Chromatography setup but demands enhanced hardware configuration and automated data integrity, the LC-2800G Plus is the ideal choice.
  • Outstanding Repeatability and Stability: Having earned the prestigious Performance Evaluation Certificate from the Ministry of Industry and Information Technology (MIIT), this instrument utilizes a modular-free, full software-controlled design to guarantee exceptional flow accuracy and high injection repeatability.
  • Versatile Multi-Target Chemical Testing: Beyond testing the 4 standard RoHS 2.0 Phthalates in accordance with T/CESA 1063-2019 and SJ/T 11920-2023, the system’s high sensitivity can expand to analyze Bisphenol A (GB/T 45235-2025), Formaldehyde, Polycyclic Aromatic Hydrocarbons (PAHs), and Dimethyl Formamide (DMFa), making it a versatile asset for multi-industry polymer testing.

5. Summary Matrix: Choosing the Right Conoma Instrument for Your Business
To assist your executive procurement team and laboratory managers in making an optimal capital investment decision, the matrix below outlines the direct matching criteria for Conoma’s RoHS 2.0 compliance testing lineup:

Selection CriteriaPY-GC90 Screening InstrumentEGC-PRO AI 9000 Automated SystemGC-MS7220 Premium SystemLC-2800G Plus Organic Tester
Best-Fit Target EnvironmentManufacturing workshops, plastic molding sites, rapid IQC/OQC [4]Large-scale factories, high-throughput automated QC [1]Central laboratories, testing agencies, research institutes [2]Standard analytical labs, multi-parameter organic testing [2, 3]
Primary Corporate GoalFast sample throughput, zero chemical preparation [4]Continuous 24/7 testing, labor cost minimization [1]Supreme accuracy, legal validity, full-spectrum scanning [2]High flow repeatability, modular data system control [3]
Sample PretreatmentNone (direct analysis of solid-state raw materials) [4]Simplified automated extraction/infusion [1]Complex (requires Soxhlet or ultrasonic extraction) [2]Standard liquid chromatography filtration and preparation [2, 3]
Analysis Speed~ 18 minutes per sample [4]Automated cyclic continuous testing [1]Dependent on extraction method and column temperature run [2]Standard liquid chromatography runtime [1, 3]
Laboratory InfrastructureNone required (can be placed directly next to production lines) [1, 4]No dedicated ventilation or chemical room needed [1, 4]Mandatory dedicated lab with adequate ventilation infrastructure [2, 4]Standard chemical laboratory environment [2, 4]

6. Where to Buy Authentic Conoma RoHS 2.0 Compliance Testing Instruments in Vietnam?
Investing in high-end RoHS 2.0 compliance testing infrastructure is a major capital decision that demands technical support. Therefore, choosing a procurement partner goes far beyond negotiating the initial cost of the instrument. Enterprises must look for comprehensive technology transfer, on-site installation, application development, standard calibration, and long-term technical service availability.
In the Vietnamese market, Maxlab Equipment Joint Stock Company (Maxlab JSC) is the proud, officially authorized distributor of advanced RoHS 2.0 compliance testing instruments manufactured by Conoma.
Why Global and Local Enterprises Choose Conoma Solutions from Maxlab:
  1. 100% Genuine Manufacturer Guarantee: Every single instrument—including the EGC-PRO AI 9000, GC-MS7220, and PY-GC90—is imported directly from the Conoma manufacturing plant, arriving complete with authentic Certificates of Origin (CO) and Certificates of Quality (CQ).
  2. Specialized Application Engineers: Maxlab retains a dedicated team of application specialists trained directly at Conoma’s R&D headquarters. We do not just drop off equipment; we work closely with your quality control team to develop customized testing methods tailored to your specific raw materials and polymer matrices.
  3. Turnkey Laboratory Solutions: For premium hardware setups like the GC-MS7220, Maxlab provides full-scope consulting, encompassing laboratory architectural layout design, gas line integration, exhaust extraction infrastructure installation, and the provisioning of high-purity chemical reference standards.
  4. Rapid Maintenance & Calibration Response: Knowing that any downtime in your QC department halts your entire shipping line, Maxlab is committed to delivering rapid on-site technical support, routine calibration, and immediate access to original factory spare parts.

If your enterprise is facing strict export compliance requirements, aiming to upgrade internal quality assurance, or seeking to build an international-standard testing laboratory, contact the authorized Conoma distributor in Vietnam today:
  • Company Name: Maxlab Equipment Joint Stock Company (Maxlab JSC)
  • Hotline / Contact Number: 0986.666.914
  • Inquiry & Quotation Email: marketing@maxlab-jsc.com

Let Maxlab and Conoma empower your manufacturing processes and safeguard your journey into the global marketplace!
