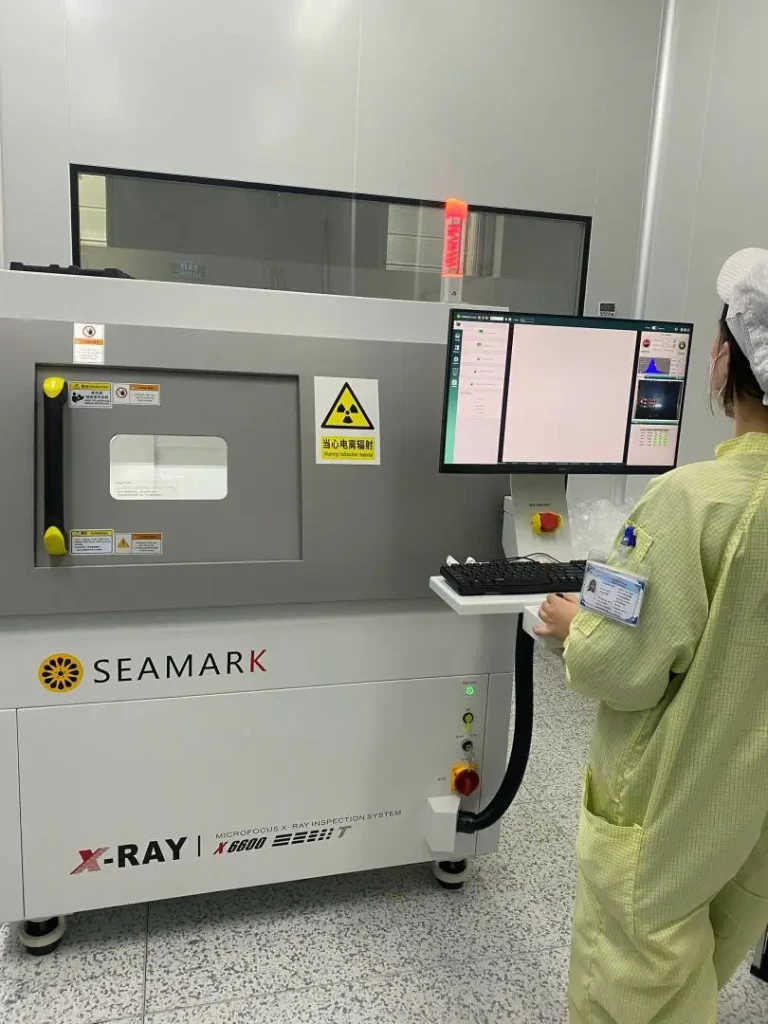

Maxlab Handed Over Seamark X6600T Industrial X-ray Machine to Customer Value Plus Vina

Recently, Maxlab Equipment Joint Stock Company

successfully handed over the premium industrial X-ray machine, model X6600T manufactured by Seamark ZM, to our strategic partner Value Plus Vina. In the context of Vietnam’s electronics, semiconductor, and precision engineering industries demanding increasingly stringent quality control (QC/QA) standards, the application of advanced Non-Destructive Testing (NDT) solutions has become a vital factor for sustainable business growth. This collaboration not only affirms the technical competence and professional service quality of Maxlab JSC but also marks an important milestone helping Value Plus Vina comprehensively optimize its circuit board defect inspection workflow, achieve breakthrough productivity, and perfectly satisfy rigorous international technical standards from the most demanding markets.

As a leading FDI enterprise specializing in manufacturing and assembling sophisticated electronic components, particularly high-end PCBA products containing new-generation chipsets with dense pin configurations, Value Plus Vina continuously faces the challenge of controlling hidden defects inside solder joints. Serious defects such as voids, bridging, cracking, or head-in-pillow errors are impossible to detect with the naked eye or conventional Automated Optical Inspection (AOI) systems.

To completely solve this problem, the board of directors and the technical team of Value Plus Vina set a requirement to find an offline micro-focus industrial X-ray machine featuring ultra-high resolution, stable operation, and smart software automation utilizing AI deep learning algorithms.

After a rigorous survey and capability assessment among numerous suppliers, Maxlab surpassed many major competitors to become the chosen partner thanks to two core advantages:

The X6600T model, researched and developed by Seamark ZM, is a micro-focus X-ray inspection system that possesses superior configuration specifications, specialized for in-depth analysis of hidden defects inside material structures:

The equipment integrates a premium imported sealed micro-focus X-ray tube with flexible operating voltage options (90kV to 130kV) and a maximum output power of up to 39W. The extremely small focal spot size (Spot Size: 5µm – 15µm) allows the system to achieve a magnificent magnification of up to 1000X. Consequently, the emitted X-ray beam can penetrate thick materials, such as high-power IGBT modules or metal shields, displaying ultra-sharp real-time images down to nanoscale details.

The X6600T features an industrial TFT dynamic flat panel detector with a massive 1536×1536 pixel matrix, a high resolution of up to 5.8 Lp/mm, and a real-time frame processing speed of 20fps. The 16-bit AD signal conversion delivers outstanding image contrast, instantly assisting technicians in precisely analyzing the voiding ratio of BGA solder joints.

A major advantage that makes the X6600T highly regarded by industry experts is the flexible synchronized tilt-and-rotate mechanism between the X-ray tube and the detector. The system allows a maximum tilt angle of up to 65 degrees, creating intuitive 2.5D multi-dimensional views without physically shifting or warping the sample PCB. Detecting wire bonding breaks or defects in QFN and multi-pin IC packages becomes easier than ever.

The device incorporates an extra-large sample stage measuring up to 540mm × 440mm, equipped with color image and laser-guided automatic navigation features. Operators only need to perform “point-and-click” actions directly on the 24-inch monitor, and the XYZ axis system will automatically navigate to the exact inspection spot. In particular, the CNC automated programming mode sets up multi-point arrays, completely automating the batch testing workflow for large production lines.

This delivery project of the X6600T industrial X-ray machine was given the highest priority by Maxlab’s leadership, tightly controlled under international standard procedures:

After putting the Seamark ZM X6600T industrial X-ray machine into direct operation on the line, the quality management board of Value Plus Vina recorded remarkable improvements:

The successful handover of the premium Seamark ZM X6600T quality inspection solution to Value Plus Vina once again demonstrates Maxlab’s leading position in distributing high-tech industrial supporting equipment in Vietnam. Going beyond just selling products, Maxlab constantly strives to deliver a perfect closed-loop value chain: from solution consulting, providing authentic equipment, installation, periodic warranty, to dedicated intensive training.

Should your company look for advanced solutions regarding industrial X-ray machines, X-ray SMD component counters, or advanced BGA Rework Stations, please contact Maxlab immediately for expert consultation and the most competitive quote:
