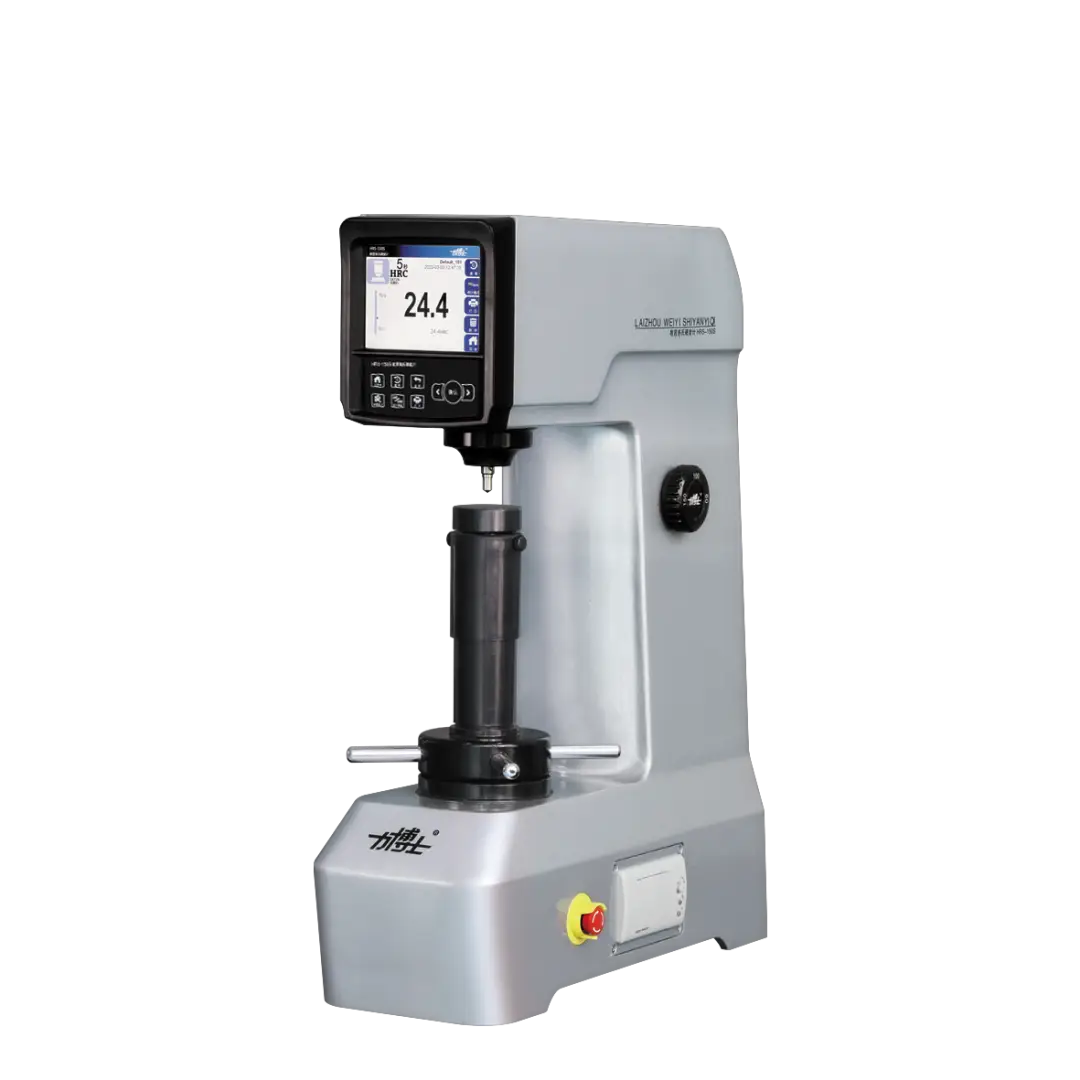

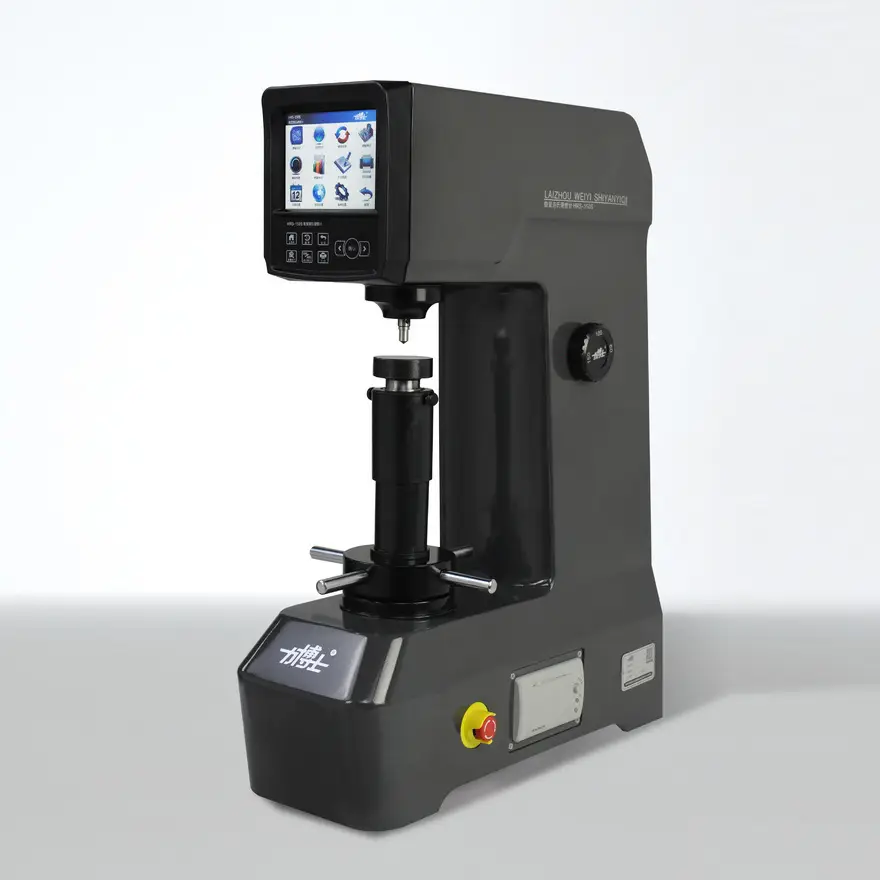

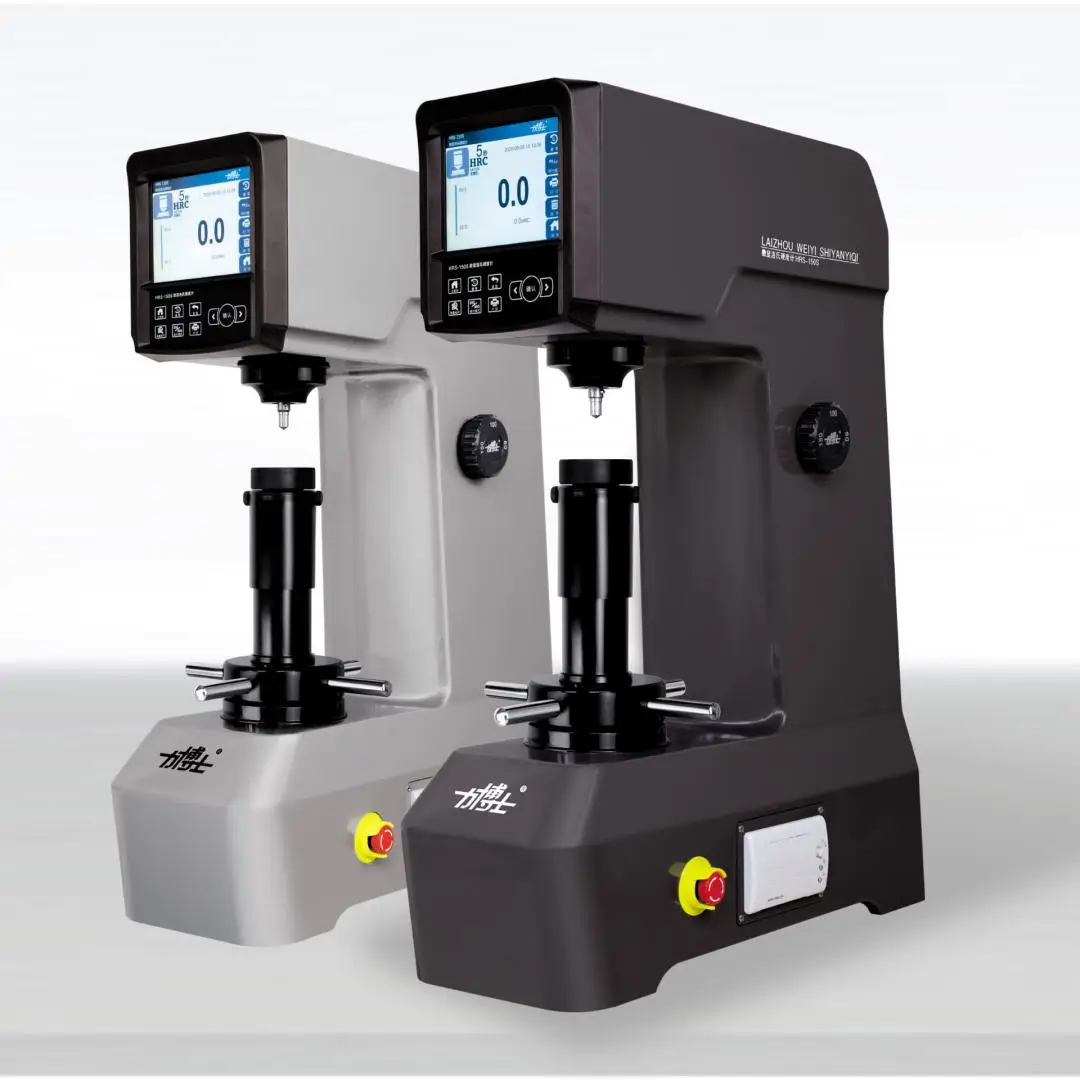

HRS-150S Digital Rockwell Hardness Tester

5.6-inch Digital Touchscreen
Automatic Sample Loading, Holding, and Unloading
200 Single Data Group Storage Function
100 Group Data Storage Function
Single Data Viewing and Analysis Function
Integrated Printer
12-Language System (Simplified Chinese, Traditional Chinese, English, French, German, Russian, Portuguese, Spanish, Korean, Japanese, Italian, Thai)
Accuracy Complies with GB/T 230.2, ISO 6508-2, and ASTM E18 Standards

Product Information

Main Features

5.6-inch Digital Touchscreen
Automatic Sample Loading, Holding, and Unloading
200 Single Data Group Storage Function
100 Group Data Storage Function
Single Data Viewing and Analysis Function
Integrated Printer
12-Language System (Simplified Chinese, Traditional Chinese, English, French, German, Russian, Portuguese, Spanish, Korean, Japanese, Italian, Thai)
Accuracy Complies with GB/T 230.2, ISO 6508-2, and ASTM E18 Standards

Applications

Suitable for determining the Rockwell hardness of ferrous metals, non-ferrous metals, and non-metallic materials. Widely applicable in Rockwell hardness testing for heat-treated materials, such as quenching, hardening, and tempering, etc.

Specifications

Rockwell ScalesHRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR、HRS、HRV
Initial test force98.07N(10kgf)
Total test force588.4N(60kgf)980.7N(100kgf)1471N(150kgf)
Duration Time0-60S
DisplayTouch screen
Hardness Resolution0.1HR
Loading mode of test forceAutomatic Loading, Loading and Unloading
Hardness Value ConversionHRA、HRB、HRC、HRE、HRF、HRG、HRK、HRH、HR15T、HR30T、HR45T、HR15N、HR30N、HR45N、HV0.1、HV1、HV5、HV10、HV15、HV30、HV50、HBS2、HBS10、HBS30、HBW、HK0.5、HK1、HLD、HS、Mpa
Conversion standardASTM-E140-12be、ISO-18265-2013、GB/T1172
Language typesSimplified Chinese, Traditional Chinese, English, French, German, Russian, Portuguese, Spanish, Korean, Japanese, Italian, Thai
Instrument correction range-10.0HR~+10.0HR;Step value 01.HR
data processingProvide 200 groups of single data storage function and 100 groups of data storage function, and can provide a single data view and data analysis function.
Print ConfigurationBuilt-in printer
Maximum height of specimenWith Lead screw protective sleeve 100mm,without Lead screw protective sleeve 170mm
Distance from indentation center to engine wall118mm
Outline size500×225×660(mm)
Net weight68kg
Executive standardGB/T230.2,JJS Z2245,EN-ISO6508,ASTME-18
