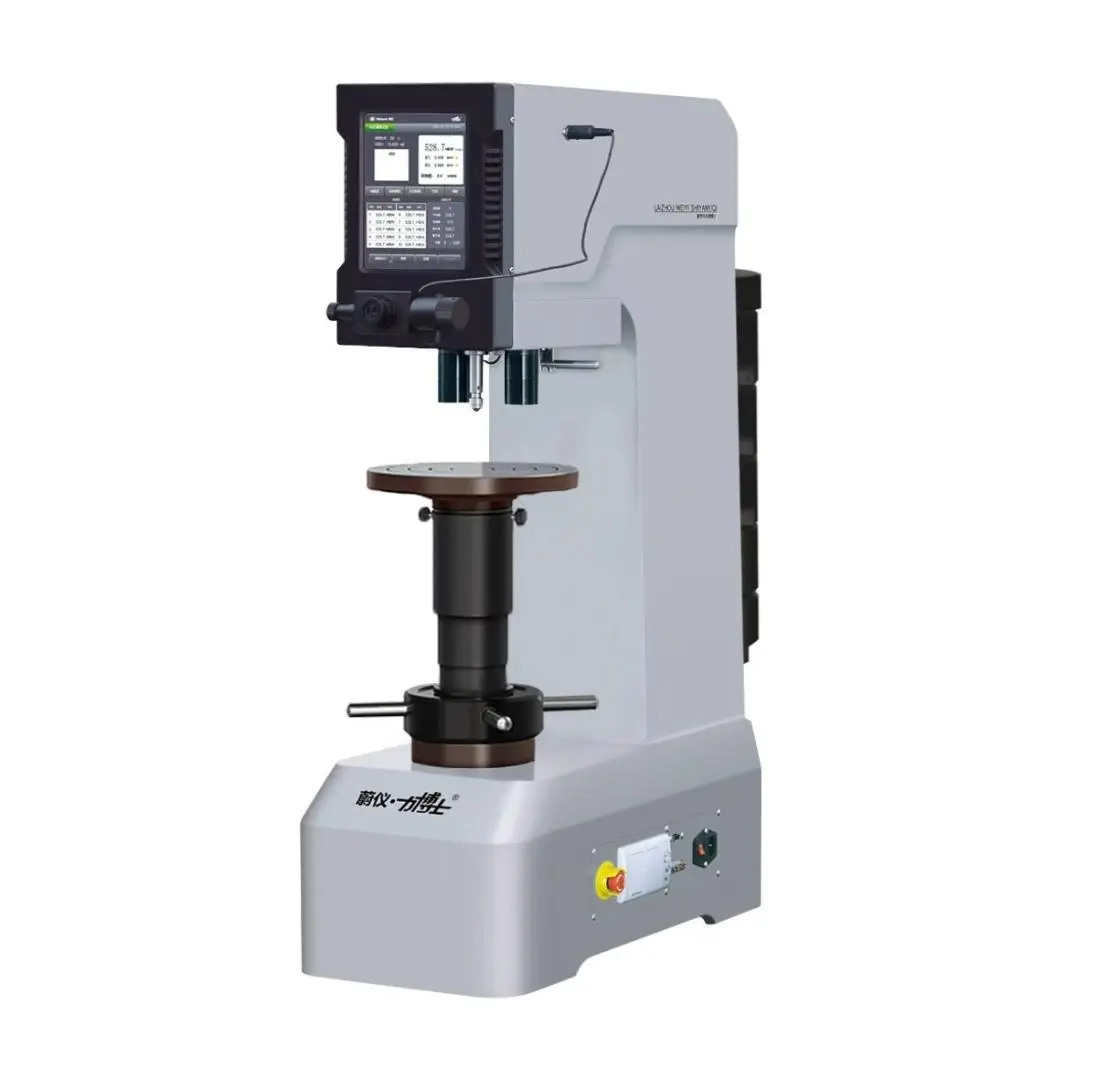

HBS3000-212 Digital Brinell Hardness Tester by Veiyee

Discover the genuine HBS3000-212 digital Brinell hardness tester Veiyee at Maxlab Equipment. Featuring a closed-loop load cell system, automatic loading, smart scale conversion, and a massive 3000kgf load capacity. The ultimate mechanical testing solution for cast iron, forged steel, and coarse industrial materials.

Product Information

Mastering Material Testing: HBS3000-212 Digital Brinell Hardness Tester by Veiyee

In mechanical manufacturing, metallurgy, and heat treatment, measuring material hardness with absolute precision is a critical factor for product durability. For materials with coarse or non-uniform structures like cast iron, forged steel, and non-ferrous alloys, the Brinell test method remains the golden industrial standard.
To deliver an optimized, highly automated, and precise testing solution, Maxlab Equipment proudly introduces the HBS3000-212 digital Brinell hardness tester Veiyee. This premium equipment is engineered by one of China’s most trusted and long-standing manufacturers of material testing machines.

1. Overview of the Veiyee Brand

Veiyee (Laizhou Weiyi) holds a prestigious reputation in researching and manufacturing hardness testers and metallographic sample preparation equipment. Veiyee products are highly regarded worldwide for their robust mechanical structures, high precision, and strict compliance with international standards such as ISO 6506 and ASTM E10. The HBS3000-212 model perfectly showcases the brand’s integration of precision heavy-duty mechanics and modern digital electronics.

2. Advanced Technological Features of the HBS3000-212

State-of-the-Art Closed-Loop Load System

Unlike traditional mechanical hardness testers that rely on heavy, error-prone deadweights, the HBS3000-212 features an electronic motor-driven system combined with a high-precision load cell (accurate to 0.5%). The internal microcomputer continuously monitors force signals in real time and automatically compensates for any friction or load drop. This eliminates over-loading or under-loading, ensuring that the force applied to the specimen is consistently accurate.

Fully Automated Operation Cycle

The instrument optimizes user experience through a seamless one-touch testing cycle. The core stages of loading, dwelling, and unloading are entirely automated by advanced electronic circuitry. Eliminating human intervention during the force application process removes subjective operator errors, ensuring uniform repeatability across different test batches.

Intuitive Digital LCD Interface

The HBS3000-212 model is equipped with a large, bright LCD screen. It displays all vital real-time testing parameters including the selected test force, dwell time, indentation diameters (d1, d2), and the final Brinell hardness value (HBW). Technicians no longer need to perform tedious manual chart lookups, which multiplies daily testing throughput.

Automatic Hardness Scale Conversion

A standout benefit of this digital model is its built-in smart conversion software. Immediately after computing the Brinell hardness value, the system can automatically convert the result into other widely used industrial scales, such as Rockwell (HRC, HRB) or Vickers (HV). This feature offers supreme flexibility when dealing with diverse engineering blueprints and varying international standards.

3. Key Technical Specifications

  • Wide Testing Force Range: Supports a broad spectrum from a light 62.5 kgf up to a maximum heavy-duty load of 3000 kgf (612.9N to 29420N). This enables the machine to test soft metals up to ultra-hard steels.
  • Durable Carbide Indenters: Utilizes premium Tungsten Carbide ball indenters in standard diameters (10mm, 5mm, and 2.5mm).
  • Broad Measuring Range: Capably measures a wide hardness spectrum from 8 to 650 HBW.
  • Digital Optical System: Features a high-magnification reading microscope integrated with an electronic digital encoder, automatically syncing indentation size data directly to the main display.
  • Integrated Mini Thermal Printer: Enables instant on-site printing of test data and results, serving as immediate documentation for quality acceptance.

4. Practical Industrial Applications

Thanks to its massive 3000 kgf force capacity and broad indentation area, the HBS3000-212 digital Brinell hardness tester Veiyee is the premier choice for:
  • Foundries, steel forging plants, and heavy-duty metal heat treatment facilities.
  • Testing large-scale parts or components with coarse, rough, or uneven surfaces such as railway tracks, crankshafts, and heavy machine beds.
  • Quality control (QC) laboratories in automotive manufacturing, shipbuilding, and structural steel construction sectors.
  • Material science research institutes, laboratories, and technical universities.

5. Why Choose Maxlab Equipment?

Maxlab Equipment is a premier, reliable distributor of authentic Veiyee hardness testing machines. Choosing your equipment from Maxlab guarantees:
  • 100% genuine imported products, accompanied by full CO and CQ certifications from the manufacturer.
  • Comprehensive long-term warranty policies alongside lifetime technical support.
  • An experienced team of service engineers providing on-site installation, calibration, and thorough operational training.
  • Highly competitive pricing and a dedicated, customer-first after-sales service.
Contact Maxlab Equipment today to receive a detailed quotation and secure the most effective material measurement solution for your business!
