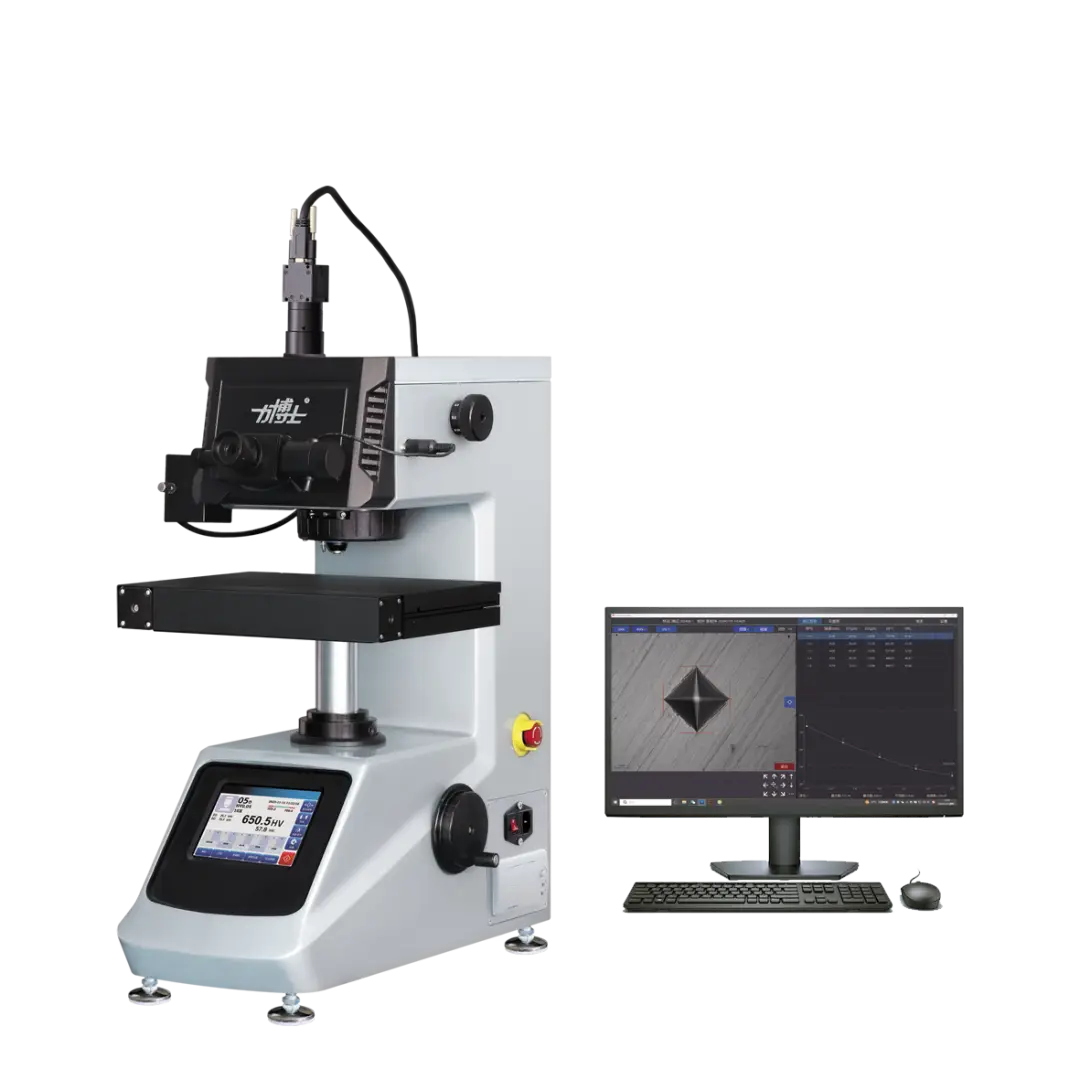

BHV-1000TPTA Veiyee Semi-Automatic Digital Micro Vickers Hardness Tester
Discover the BHV-1000TPTA Veiyee semi-automatic digital micro Vickers hardness tester distributed by Maxlab Equipment. An absolute precision solution for testing coatings and thin films with a 10gf-1kgf force range and an intelligent auto-turret system.
Product Information
Semi-Automatic Digital Micro Vickers Hardness Tester BHV-1000TPTA Veiyee – The Ultimate Solution for High-Precision Material Testing
In the industries of precision engineering, metallurgy, and electronic component manufacturing, quality control of material surfaces plays a vital role. For ultra-thin parts, electroplated layers, or shallow surface coatings, conventional hardness testers fail to meet requirements due to excessive indentation force that destroys the samples. To solve this challenge, Maxlab Equipment proudly introduces the BHV-1000TPTA semi-automatic digital Micro Vickers hardness tester from the prestigious brand Veiyee. This is a top-tier solution that delivers absolute accuracy in micro-scale testing for modern laboratories and workshops.
General Overview of BHV-1000TPTA Veiyee
The BHV-1000TPTA model belongs to the high-end Micro Vickers hardness tester line. The device is specially designed to determine the hardness of materials with micro dimensions or ultra-thin surface coatings. The letters “TPTA” in the model code represent the most advanced automation technologies from Veiyee today, which help optimize the testing process and minimize human errors.
Key Features Attracting Quality Control Engineers
1. Flexible Micro Test Force Range
The BHV-1000TPTA features a micro-test load range varying from 10 gf to 1000 gf (1 kgf). This fine force distribution allows the device to measure accurately on brittle and fragile materials such as glass, crystalline ceramics, or ultra-thin electroplated layers (only a few micrometers thick) without cracking or deforming the surrounding structure of the indentation.
2. Auto-Turret Technology
The letter “T” (Turret) confirms that the machine is equipped with an intelligent automatic turret system. When the engineer presses the start button, the system automatically swaps positions between the microscope objective lens and the diamond indenter. Once the loading process is complete, the turret automatically rotates back to the initial objective position for the user to observe the indentation. This operation completely eliminates manual turret rotation, protecting the diamond indenter from accidental physical collisions.
3. Convenient Semi-Automatic Operation Workflow
The letter combination “PA” (Program & Auto-testing) demonstrates the automation capability of the test cycle. The machine automatically performs 3 full steps: Loading ➔ Dwell ➔ Unloading according to the preset time. After that, the engineer only needs to perform a single manual step: aligning the two diagonals of the indentation on the screen using the optical measuring eyepiece. The system will automatically calculate the data and immediately display the Vickers hardness value (HV) on the digital screen without requiring manual lookup tables.
4. Intuitive Digital Display
No more eye strain from mechanical scale divisions. The BHV-1000TPTA displays all parameters, including test force, dwell time, indentation diagonal lengths d₁ and d₂, and the Vickers hardness value directly on a sharp digital screen. This improves work efficiency and ensures the objectivity of the data.
Practical Applications in Factories and R&D Labs
Thanks to its ultra-small force range and superior accuracy, the BHV-1000TPTA Veiyee micro Vickers hardness tester is widely applied in various fields:
- Surface coating inspection: Measuring the hardness of electroplated layers, chemical plating, metallic thin films, nitrided layers, or shallow carburized surfaces.
- Electronic component industry: Measuring IC structures, connector pins, thin metal wires, or metal foils used in printed circuit boards.
- Material research: Analyzing the hardness of different phase structures inside the microstructures of metals and alloys.
- Hard non-metallic materials: Measuring on the surfaces of technical ceramics, glass, gemstones, and composite materials.
Why Choose Equipment from Maxlab?
Maxlab Equipment is proud to be a leading reputable supplier of genuine material measurement solutions in Vietnam. When choosing Veiyee hardness testing machines at Maxlab, customers are guaranteed:
- 100% genuine imported products with full CO/CQ certification.
- A team of experienced engineers supporting installation, calibration, and technology transfer on-site.
- Long-term warranty policy with genuine replacement parts available for maintenance.
Elevate the accuracy of your laboratory today with the BHV-1000TPTA!
