BHV-TPTA Veiyee Semi-Automatic Vickers Hardness Tester
Discover the genuine Veiyee BHV-TPTA semi-automatic Vickers hardness tester at Maxlab Equipment. Detailed specifications of 5/10/30/50 TPTA versions, auto-turret benefits, and precise material testing applications for Lab rooms.
Product Information
Semi-Automatic Vickers Hardness Tester BHV-TPTA Veiyee is a cutting-edge technological solution genuinely distributed by Maxlab Equipment. This strategic product line fully meets the most stringent inspection standards in modern precision engineering, machinery manufacturing, and metallurgy.
If your enterprise is looking for a measurement device that delivers absolute accuracy, stable operation, and optimized investment costs, let Maxlab analyze this equipment line in detail below.

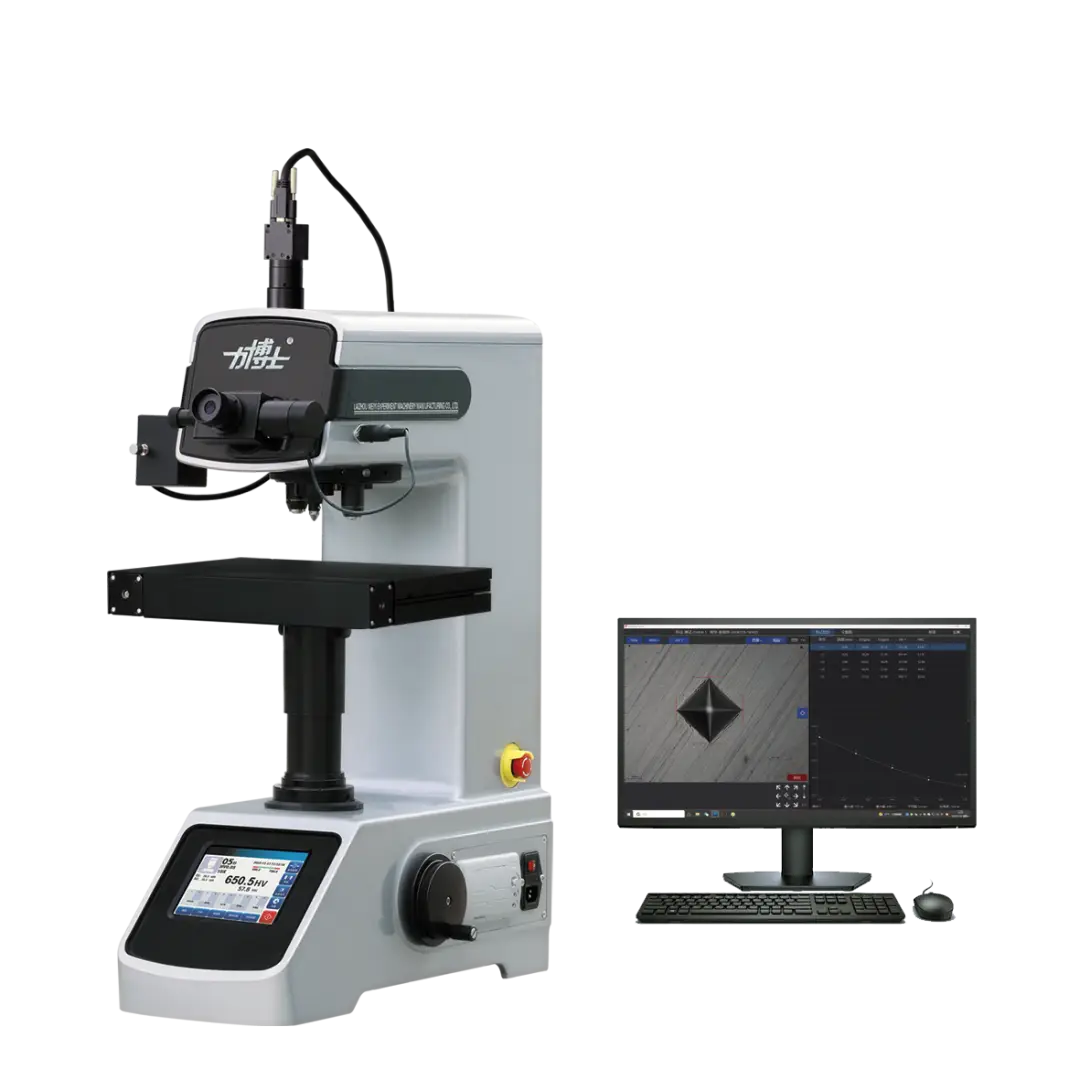

Overview of the BHV-TPTA Veiyee Semi-Automatic Vickers Hardness Tester
The BHV-TPTA semi-automatic Vickers hardness tester line comes from Veiyee (Laizhou Weiyi), a leading manufacturer of material testing equipment. The acronym TPTA represents the manufacturer’s highest-end configuration version. The machine features a large, intuitive LCD touch screen combined with an Auto-Turret mechanism.
This mechanism allows the device to flexibly switch between the diamond indenter and the observation objective immediately after completing the indentation cycle. As a result, technicians save maximum operation time and eliminate mechanical manual shifting errors.
Detailed Technical Specifications of Versions: 5 / 10 / 30 / 50 TPTA
To meet the diverse thicknesses and characteristics of each material type, Maxlab Equipment provides a full range of 4 versions with test force ranges from micro to macro scales:
| Technical Specifications | BHV-5TPTA | BHV-10TPTA | BHV-30TPTA | BHV-50TPTA |
|---|---|---|---|---|
| Maximum Test Force | 5 kgf (49 N) | 10 kgf (98 N) | 30 kgf (294 N) | 50 kgf (490 N) |
| Test Force Range | 0.2, 0.5, 1.0, 2.0, 3.0, 5.0 kgf | 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 kgf | 0.5, 1.0, 3.0, 5.0, 10.0, 20.0, 30.0 kgf | 1.0, 2.0, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0 kgf |
| Objective Magnification | 10× (Observation), 40× (Measurement) | 10× (Observation), 40× (Measurement) | 10× (Observation), 20× (Measurement) | 10× (Observation), 20× (Measurement) |
| Dwell Time | Customizable from 5 to 60 seconds | Customizable from 5 to 60 seconds | Customizable from 5 to 60 seconds | Customizable from 5 to 60 seconds |
| Maximum Specimen Height | 110 mm | 110 mm | 160 mm | 160 mm |
| Distance from Center to Body | 130 mm | 130 mm | 135 mm | 135 mm |
| Display Resolution | 0.0625 μm | 0.0625 μm | 0.25 μm | 0.25 μm |
| Applicable Standards | ISO 6507, ASTM E384, ASTM E92, JIS Z2244 | ISO 6507, ASTM E384, ASTM E92, JIS Z2244 | ISO 6507, ASTM E92, JIS Z2244 | ISO 6507, ASTM E92, JIS Z2244 |
Outstanding Advantages of the BHV-TPTA Series
1. Intelligent Digital Control System
The BHV-TPTA semi-automatic Vickers hardness tester frees users from complex manual calculations of HV values. After measuring the two diagonal lengths of the indentation (d1, d2) via the digital electronic eyepiece, the Vickers hardness value and its equivalent conversions to other scales (HRC, HRB, HBW) will immediately display on the LCD touch screen.
2. Sharp Optical System with High Contrast
Veiyee equips the TPTA series with an optimized optical path system treated with high-grade anti-glare coatings. Consequently, the diamond indentation image always appears crystal clear. This assists technicians in precisely identifying the corner vertices of the rhombus, even on rough material surfaces or those with poor reflectivity.
3. Flexible Upgrade Capability for the Future
A major advantage of the BHV-TPTA series provided by Maxlab is the built-in expansion port. When your business grows and requires full automation, you can easily integrate a CCD camera system and image analysis software on a computer. This allows for automatic edge detection without having to replace the entire machine body.
Practical Applications of the Equipment
- BHV-5TPTA and BHV-10TPTA Versions: The perfect choice for testing ultra-small mechanical parts, thin coating materials, electroplated layers, metal wires, or determining the hardness of thin carbon/nitrogen nitrided layers on steel surfaces.
- BHV-30TPTA and BHV-50TPTA Versions: Specialized for larger specimens, structural components subjected to heavy load after heat treatment, alloy steels, non-ferrous metals, or industrial ceramic materials and glass.
Why Buy Veiyee Hardness Testers at Maxlab Equipment?
Maxlab Equipment is proud to be a reputable partner specializing in providing genuine Veiyee BHV-TPTA semi-automatic Vickers hardness testers in the market. When choosing our products, customers will receive:
- 100% officially imported products with full CO and CQ certifications.
- Calibration services, technology transfer, and on-site installation by a highly specialized engineering team.
- Long-term warranty policy with genuine replacement parts always available.
Contact Maxlab Equipment today to receive the best promotional price quote for the Veiyee BHV-TPTA semi-automatic Vickers hardness tester series!
