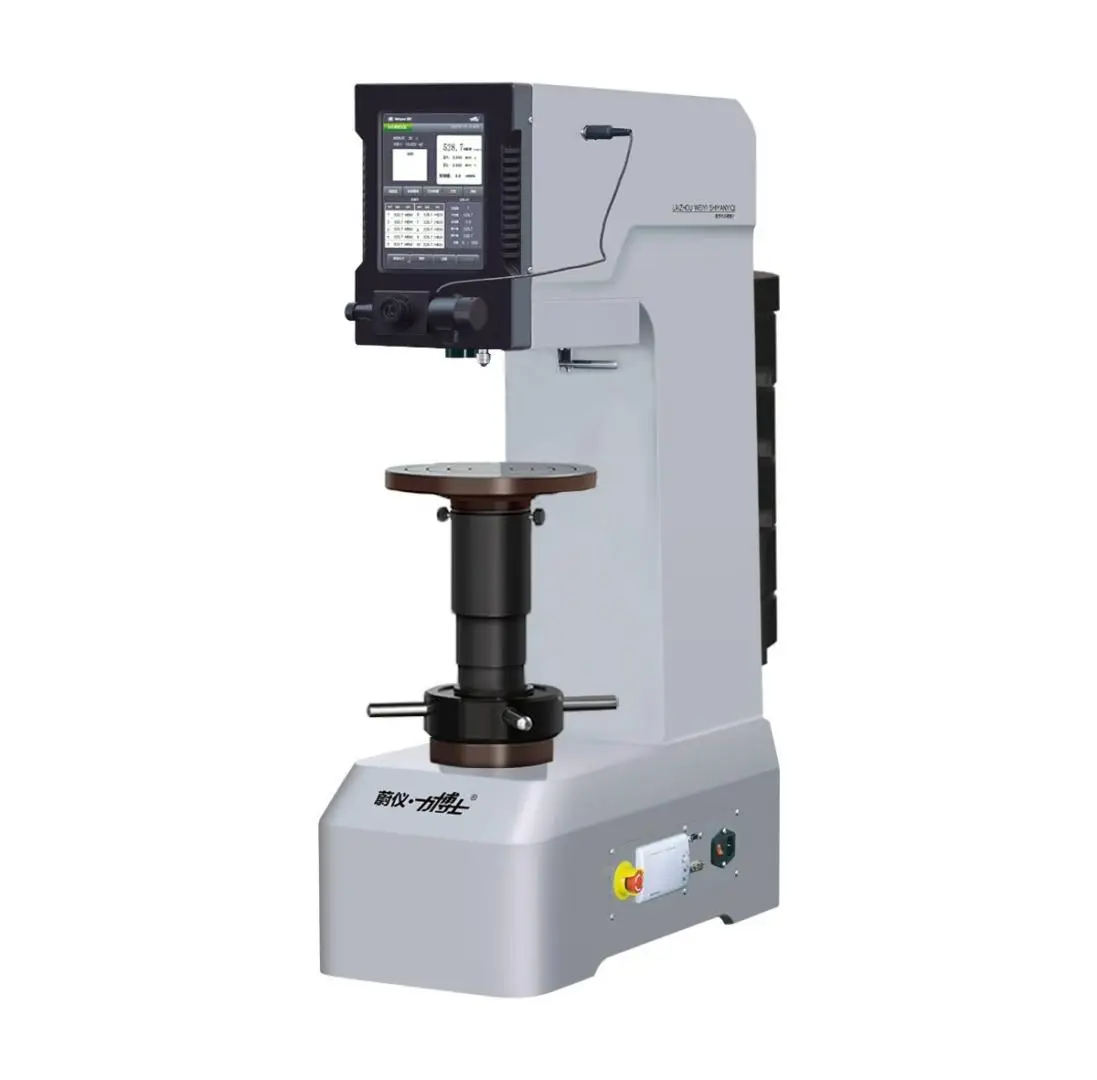

HBS3000-210 VEIYEE HBS3000-210 DIGITAL BRINELL HARDNESS TESTER

Discover the genuine digital Brinell hardness tester Veiyee HBS3000-210 at Maxlab Equipment. Features an automated closed-loop system, intelligent LCD screen, and up to 3000kgf test force, ideal for cast iron, steel, and non-ferrous metals. View full specs here!

Product Information

DIGITAL BRINELL HARDNESS TESTER VEIYEE HBS3000-210 – THE PRECISION MEASUREMENT SOLUTION FOR ALL METALLIC MATERIALS
In the fields of mechanical manufacturing, metallurgy, and quality control (QC), determining hardness accurately is crucial for evaluating a material’s durability and load-bearing capacity. If your business is seeking a highly accurate, durable, and time-saving testing device, the Digital Brinell Hardness Tester Veiyee HBS3000-210 is the premier choice. Distributed genuinely by Maxlab Equipment, this model represents a technological breakthrough in testing coarse-grained materials and industrial-scale castings.

Overview of the Digital Brinell Hardness Tester Veiyee HBS3000-210

The Veiyee HBS3000-210 is a high-end, new-generation Brinell hardness tester that seamlessly integrates mechanical, electronic, and optical technologies. The device utilizes the Brinell scale (HBW) by pressing a tungsten carbide ball indenter into the specimen surface under a stable, high-magnitude test force.
The most significant difference between this model and traditional mechanical testers is its intelligent digital control system. The entire process—including loading, dwell time retention, and unloading—is fully automated and programmable. This advanced improvement eliminates human-induced operational errors, delivering test results with exceptional repeatability and reliability.

Outstanding Technological Advantages Beyond Legacy Systems

1. High-Precision Closed-Loop Control System

Instead of using bulky traditional weight-stack mechanisms that are prone to mechanical deviation over time, the Veiyee HBS3000-210 is equipped with a high-accuracy load cell sensor paired with a micro-step stepping motor. This closed-loop system continuously monitors and automatically compensates for force loss throughout the testing process. Consequently, the applied force always remains perfectly accurate, strictly meeting rigorous international standards such as ISO 6506 and ASTM E10.

2. Automated Operation and Intuitive Interface

The equipment features a large, clear LCD screen that dynamically displays vital test parameters, including test force, dwell time, indentation diameter, and direct hardness values. Operators only need to perform simple button presses. The closed-loop, automated testing sequence dramatically reduces processing times in high-frequency laboratories.

3. Flexible Hardness Scale Conversion

Another prominent feature of the digital Brinell hardness tester Veiyee HBS3000-210 is its capability to automatically convert Brinell results into other widely used hardness scales, such as Rockwell (HR) or Vickers (HV). This smart functionality saves engineers from manual look-up charts, simplifying cross-referencing and technical reporting.

4. Convenient 20X Digital Micrometer Microscope

The machine comes standard with a high-definition 20X optical micrometer eyepiece. Operators can easily measure the indentation diameter on the material surface with crystal clarity. Once the dimension data is entered into the system, the built-in microprocessor instantly computes and displays the HBW value without requiring complex manual calculations.

Impressive Technical Specifications of the Veiyee HBS3000-210

  • Wide Hardness Range: From 8 to 650 HBW, accommodating materials ranging from ultra-soft metals to high-hardness alloys.
  • Versatile Test Forces: Integrates multiple force levels starting from 62.5 kgf (612.9N) for smaller specimens, up to a maximum load of 3000 kgf (29421N) for large steel blocks.
  • Standard Indenters: Equipped with premium tungsten carbide ball indenters in diameters of 2.5mm, 5mm, and 10mm.
  • Optimal Testing Space: Provides a maximum specimen height capacity of 280mm and a throat depth of 150mm from the indenter center to the inner wall, allowing easy placement of oversized or complex-shaped mechanical parts.
  • Rapid Data Output: Features an integrated mini thermal printer on the chassis for immediate printouts alongside an RS232 port for seamless data transmission to computers.

Practical Applications Across Industries

Because the Brinell method creates a relatively large indentation area, it accurately reflects the overall bulk hardness of the material structure without being affected by localized micro-inconsistencies. Therefore, the Veiyee HBS3000-210 is an indispensable tool in:
  • Foundries and metallurgical plants for testing raw cast iron, cast steel, and unquenched steels.
  • Metal forming industries for assessing non-ferrous metal blocks and heavy-duty bearing alloys.
  • Material research institutes and technical university laboratories.

Why Buy the Veiyee HBS3000-210 from Maxlab Equipment?

Maxlab Equipment takes pride in being a leading, reputable provider of advanced measurement solutions. When choosing the digital Brinell hardness tester Veiyee HBS3000-210 at Maxlab, customers receive:
  • 100% genuine products imported directly from Veiyee China, complete with quality certifications.
  • Long-term warranty policies and lifetime technical support from highly experienced engineers.
  • On-site delivery, installation, and operational training nationwide.
Contact Maxlab Equipment today to receive the best promotional quotation for this outstanding model!
