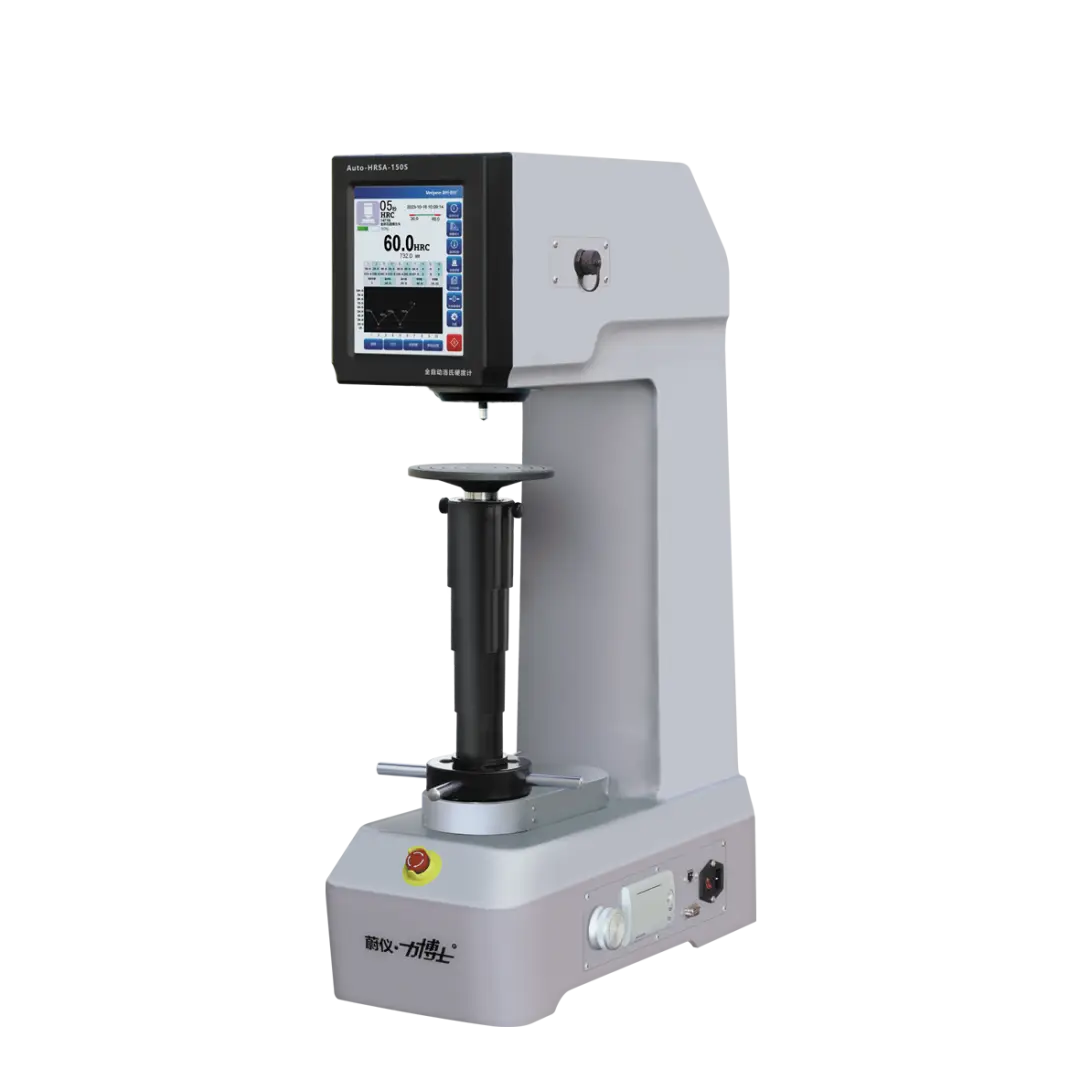

Auto-HRSA-150S Veiyee Fully Automatic Rockwell Hardness Tester
Discover the Auto-HRSA-150S Veiyee fully automatic Rockwell hardness tester at Maxlab Equipment. High-precision dual-scale smart metrology system optimized for industrial laboratories.
Product Information
Technological Breakthrough in Metrology: Auto-HRSA-150S Veiyee Fully Automatic Rockwell Hardness Tester
In the era of high-precision manufacturing, strictly controlling the mechanical properties of materials is crucial to the success of any product. To optimize quality control workflows in laboratories and workshop floors, Maxlab Equipment proudly introduces the Auto-HRSA-150S Veiyee fully automatic Rockwell hardness tester from the renowned manufacturer LaiZhou Weiyi.
This state-of-the-art solution seamlessly integrates both standard Rockwell and superficial Rockwell testing capabilities. It delivers exceptional testing efficiency for engineering companies aiming to achieve operational breakthroughs.
🛠️ Fully Automated Testing Technology – Precision Down to the Micrometer
The most defining feature that sets the Auto-HRSA-150S Veiyee apart from traditional semi-automatic models is its comprehensive automation. The tester features a fully motorized workpiece lifting mechanism.
The operator only needs to press a single button on the touch screen, and the machine automatically executes a seamless, closed-loop testing cycle:
- It automatically raises the spindle and makes contact with the sample surface.
- It automatically applies the initial minor load and the total major load.
- It dwells for a pre-set duration to ensure load stability.
- It automatically unloads, calculates, and displays the hardness value.
- It automatically lowers the testing platform to a safe position.
This closed-loop automated sequence completely eliminates human operator error, ensuring absolute repeatability and accuracy across all test specimens.
🌟 Outstanding Technical Features of the Auto-HRSA-150S Veiyee
1. Advanced Closed-Loop Control System
Instead of utilizing traditional deadweight and mechanical lever systems, which are bulky and prone to mechanical wear over time, the Auto-HRSA-150S applies a high-performance load cell sensor combined with a closed-loop stepper motor control system. This electronic technology controls the force smoothly, eliminates inertia errors, and maintains excellent long-term force stability, greatly reducing the frequency of required calibration.
2. Dual Scale Integration – Maximum Cost Efficiency
The instrument serves as a perfect “2-in-1” metrology station by integrating full testing scales:
- Standard Rockwell Scales: 60 kgf, 100 kgf, 150 kgf (including HRA, HRB, HRC, and more).
- Superficial Rockwell Scales: 15 kgf, 30 kgf, 45 kgf (including HR15N, HR30T, and more).
This immense versatility allows manufacturing plants to evaluate heavy, hardened steel blocks as well as thin metal sheets, surface coatings, or nitrided/carburized layers without investing in two separate testing systems.
3. Smart User Interface – Real-Time Data Visualization
The system is equipped with an 8-inch high-resolution touch screen running a smooth, user-friendly proprietary software. A key benefit of this software is its ability to graph the material deformation behavior in real time using a live data curve. The computer also automatically converts hardness results to alternative scales such as Vickers (HV) or Brinell (HB) in accordance with international ASTM E18 and ISO 6508 standards, allowing laboratory technicians to conduct deep data analysis.
🔬 Practical Industrial Applications in Manufacturing
Built with a rigid, one-piece cast iron frame that minimizes structural vibration, the Auto-HRSA-150S Veiyee fully automatic Rockwell hardness tester is an indispensable asset for:
- Material testing laboratories, independent inspection institutes, and research and development centers.
- Metal casting foundries, metallurgy plants, and precision injection mold makers.
- Automotive parts suppliers, aerospace engineering manufacturers, and heat treatment shops specialized in quenching, tempering, or surface hardening.
🤝 Maxlab Equipment – Your Trusted and Professional Metrology Partner
When choosing to acquire the high-end Auto-HRSA-150S Veiyee from Maxlab Equipment, customers receive more than just a top-tier machine. We provide comprehensive engineering and technical support:
- 100% genuine Veiyee equipment with full documentation including certificates of origin and quality.
- Experienced application engineers providing on-site installation, commissioning, and technology transfer training.
- Extended warranty terms and precise, periodic metrology calibration services.
Investing in automation is a strategic milestone to increase your manufacturing throughput and boost brand reputation. Contact Maxlab Equipment today to receive an optimal quote and expert advice tailored to your industrial workshop.
