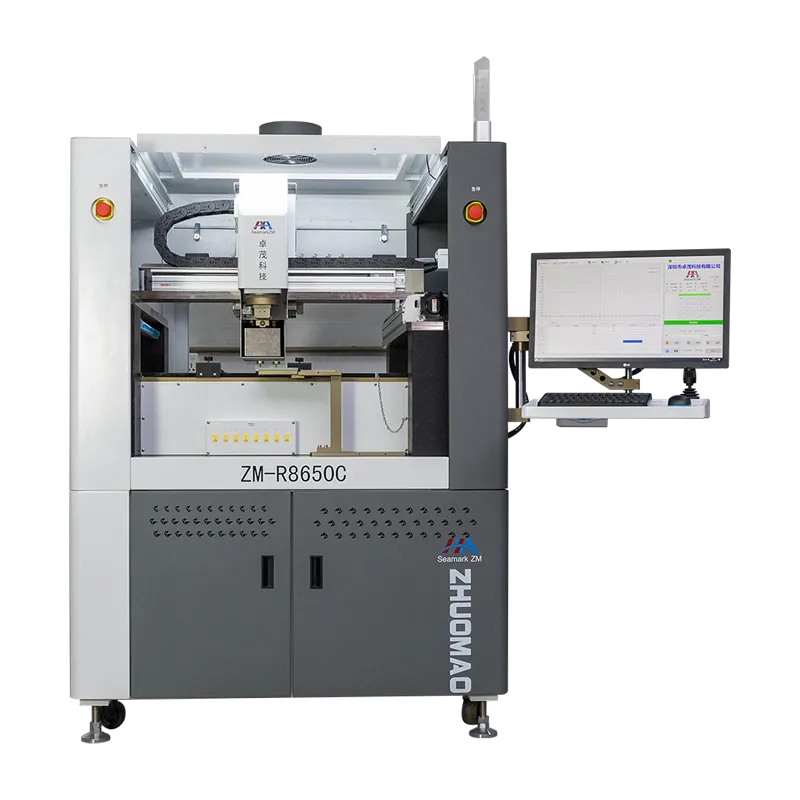

Seamark ZM-R8650C Fully Automatic BGA Rework Station
Looking for a fully automatic BGA rework station for EMS, Server, or 5G factories? Discover Seamark ZM-R8650C, the ultimate high-precision solution with ±0.01mm accuracy!
Product Information
Fully Automatic BGA Rework Station: The Ultimate Solution to Maximize Repair Yield Rates for EMS Factories
In the modern electronics manufacturing era, printed circuit boards (PCBs) are becoming increasingly complex, featuring highly dense component layouts. Repairing and replacing high-end components such as microprocessors, GPUs, and chipsets on server motherboards, 5G telecommunications equipment, and automotive electronics requires absolute precision. In this demanding landscape, traditional manual or semi-automatic hot-air rework systems can no longer meet the strict quality standards of the industry. Investing in a fully automatic BGA rework station is a strategic move that helps businesses and EMS (Electronics Manufacturing Services) factories optimize their workflows, minimize risks, and push repair success rates to the absolute maximum.
Why Does Your Factory Need a Fully Automatic BGA Rework Station?
When handling BGA (Ball Grid Array) components that feature massive physical dimensions or micro-pitch ball arrays, a placement error of just a few micrometers can entirely ruin an expensive, multi-layered PCB. A fully automatic BGA rework station eliminates human error from the equation by utilizing a fully closed-loop process controlled by an industrial-grade computer system.
Every critical stage—including desoldering the defective chip, cleaning the residual solder pads, optical alignment, precise component placement, and final reflow soldering—is executed 100% automatically through pre-programmed profiles. This ensures flawless process repeatability and consistent quality across every single unit, perfectly satisfying the rigorous technical audits imposed by global technology giants.
Seamark ZM-R8650C – The Pinnacle of Automatic BGA Rework Technology
For enterprises seeking a premium, top-tier fully automatic BGA rework station to handle heavy-duty industrial workloads, the Seamark ZM-R8650C stands out as the ultimate industry benchmark. This flagship system introduces groundbreaking technological advancements:
1. Ultra-Precise Automatic Vision Alignment System
The ZM-R8650C is equipped with a high-definition industrial camera coupled with a high-resolution optical telecentric lens. The software automatically recognizes PCB mark points, calculates the physical offset angles across the X, Y, and θ (theta) axes, and drives high-precision Panasonic Servo motors to align the component perfectly. With a staggering placement accuracy of ±0.01mm, it ensures even the smallest micro-BGAs are placed flawlessly onto their target pads.
2. Advanced 3-Zone Independent Temperature Control
To prevent thermal shock and catastrophic PCB warping during the reflow process, this fully automatic BGA rework station utilizes a closed-loop temperature control system driven by proprietary PID algorithms:
- Top and Bottom Heaters: Utilize highly efficient hot-air convection to distribute thermal energy uniformly across the BGA surface.
- Bottom Preheating Zone (IR): Features massive, high-performance infrared ceramic plates imported directly from Germany, ensuring uniform base temperatures while safeguarding surrounding heat-sensitive components.
3. Heavy-Duty Structure and Comprehensive ESD Protection
Weighing approximately 660 kg and built upon a solid, single-block marble base, the machine entirely absorbs minor industrial floor vibrations during operation. Furthermore, an integrated ESD ionizer neutralizes static charges, protecting sensitive semiconductor devices from potential electrostatic discharge failures.
Real-World Applications in High-Tech Industries
Boasting a massive power output of up to 22kW and the capacity to handle large-scale PCBs (up to 660 x 600mm), this fully automatic BGA rework station serves as an indispensable asset across several critical sectors:
- Telecommunications Infrastructure: Reworking main processing chips on 5G macro base station motherboards.
- Data Centers: Replacing high-power CPUs, chipsets, and enterprise GPUs on multi-socket server motherboards.
- Automotive Electronics: Repairing crucial Engine Control Units (ECUs), advanced driver-assistance systems (ADAS), and smart infotainment modules.
Conclusion
Integrating a fully automatic BGA rework station into your assembly line is more than a mere equipment upgrade; it is a strong statement regarding your factory’s technological capability and commitment to quality. The Seamark ZM-R8650C represents a highly sustainable, long-term investment that ensures your factory stays ahead of the competition in the high-precision electronics manufacturing industry
