ZM-R750 Automatic BGA Rework Station

Discover the Seamark Zhuomao ZM-R750, a premium automatic bga rework station. Features optical alignment, 7500W power, and advanced PCB anti-warping technology

Product Information

Description
Reviews (0)

Automatic BGA Rework Station ZM-R750: The Ultimate Industrial Repair Solution

🏷️ SEO MARKETING ARTICLE

In the era of 5G technology, high-performance computing, and multi-core processors, modern printed circuit boards (PCBs) have become incredibly dense and complex. Repairing or replacing large Ball Grid Array (BGA) chips requires absolute precision. Manual soldering methods no longer suffice for these high-value components. If you are searching for a heavy-duty solution capable of automating 100% of this intricate process, the Seamark Zhuomao ZM-R750(PC) stands out as the definitive premium automatic bga rework station on the market today.

🚀 Split-Vision Optical Alignment for Absolute Precision

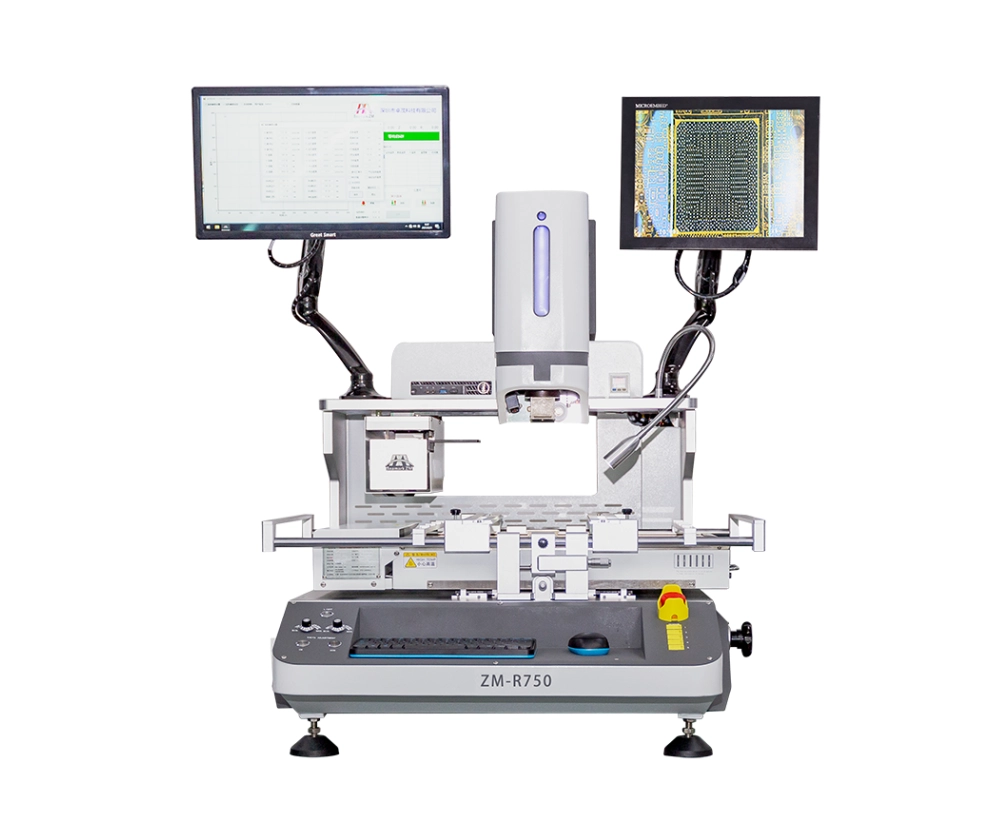

The defining feature that sets the ZM-R750 apart from entry-level repair equipment is its sophisticated optical alignment system. Utilizing a high-definition prism split-vision lens combined with a 2-Megapixel digital camera, the machine displays real-time images of both the BGA solder balls and the PCB pads simultaneously.

Through a crystal-clear HD monitor, technicians can micro-adjust the X and Y axes, as well as the R angle via a 360-degree motorized control. Once the two images are perfectly overlaid, the high-precision mechanical driving system—boasting a placement accuracy of ±0.01mm—takes over. This advanced alignment completely eliminates the risks of misaligned joints or solder bridging, which are the most common failures in hardware rework.

⚙️ Fully Automated Closed-Loop Process: One-Touch Operation

A true automatic bga rework station must liberate manual labor and drastically reduce human error. The ZM-R750 accomplishes this seamlessly through its intelligent control system powered by an industrial PC running Windows.

With a single press of the start button, the machine independently executes a complete, closed-loop rework cycle:

Auto Desoldering & Pick-Up: The upper heater melts the solder, and the integrated vacuum nozzle safely lifts the defective chip without manual intervention.
Auto Vision Alignment: The camera system maps out and aligns the coordinates of the new chip and the PCB board.
Auto Placement: The system lowers the component onto the PCB surface with precisely controlled pressure.
Auto Reflow Soldering: The machine runs a pre-programmed thermal profile to securely bond the new solder balls.
Auto Cooling: Industrial cooling fans activate immediately post-soldering to rapidly solidify the joints.

🌡️ 3-Zone Independent Heating – Eliminating Board Warpage

For massive multilayer boards found in gaming motherboards, high-end graphics cards (GPUs), and enterprise servers, thermal shock causing PCB warpage or chip blistering is a major challenge. The ZM-R750 tackles this issue head-on with a massive total power output of 7500W distributed across three independent heating zones:

Top Hot Air Heater (1200W/1450W) & Bottom Hot Air Heater (1200W): Target localized energy directly onto the BGA chip to melt solder without affecting surrounding SMD components.
Ultra-Wide Infrared (IR) Bottom Preheater (4800W): Uniformly heats the entire underside of the PCB. This massive preheating area relieves internal thermal stress within the substrate material, preventing any board distortion or delamination.

Furthermore, a highly sensitive pressure sensor (<0.2N) is embedded into the mounting head. The moment the chip makes minimal contact with the PCB surface, the downward movement halts immediately, protecting fragile silicon dies from cracking.

🎯 Who is the ZM-R750 Automatic BGA Rework Station Designed For?

Engineered with a heavy-duty industrial frame weighing 128 kg to dampen all motor vibrations, the ZM-R750 is built for demanding production environments rather than small smartphone repair shops. It is the gold standard solution tailored for:

Large-Scale Rework Centers: Specializing in premium hardware like gaming laptops, high-end GPUs, and gaming consoles (PS5/Xbox).
Industrial Maintenance & Telecom: Servicing 5G base stations, server motherboards, and complex automated control units (PLCs/Variable Frequency Drives).
Manufacturing Facilities & R&D Labs: Electronics manufacturing services (EMS) factories requiring strict thermal profiling, log file storage, and data traceability for QA/QC compliance.

Investing in the Seamark Zhuomao ZM-R750(PC) automatic bga rework station is a strategic move for businesses aiming to maximize repair yield rates, optimize cycle times, and showcase world-class technical capabilities in a competitive marketplace.

📞 GET A PROMPT QUOTE

Looking to elevate your repair infrastructure with the industry-leading ZM-R750? Contact us today to receive an official price quotation, learn about our global shipping options, and explore our comprehensive technical training and warranty support programs!
