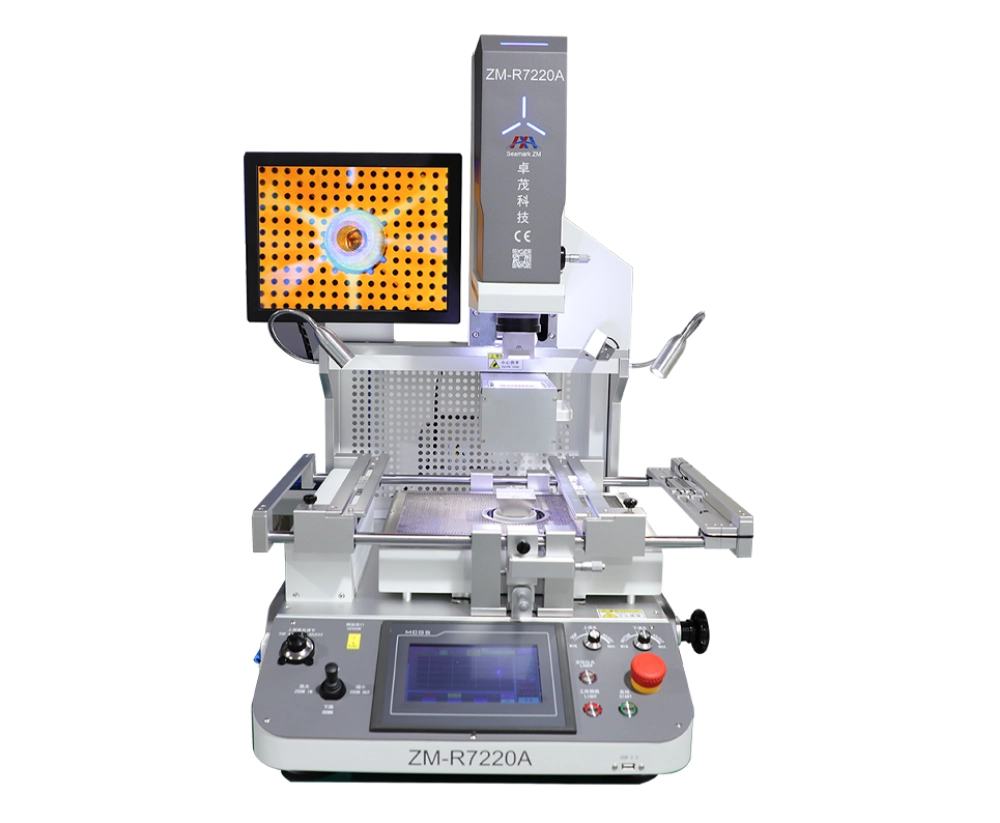

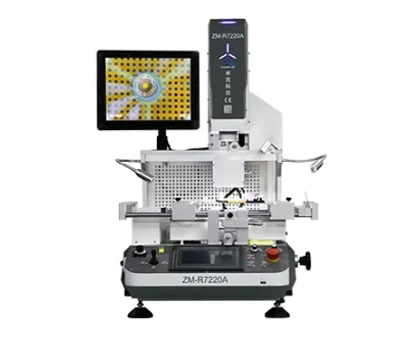

Seamark ZM-R7220A BGA Rework Station

Seamark ZM-R7220A BGA Rework Station: Ultimate Optical Alignment. Discover the authentic Seamark ZM-R7220A BGA Rework Station featuring a high-definition optical alignment system with 0.01 mm precision. Ideal for advanced chipset, IC, and LED repairs.

Product Information

Description
Reviews (0)

Seamark ZM-R7220A BGA Rework Station: The Ultimate Solution for Precision Optical Alignment

In the modern era of rapidly advancing microelectronics, repairing and remounting surface mount devices (SMD) demands near-absolute precision. For professional electronics repair centers, hardware manufacturing plants, and lab environments, owning a high-quality BGA Rework Station is the single most critical factor determining the success rate of complex board-level repairs.

Renowned as a next-generation intelligent circuit board repair system, the Seamark ZM-R7220A BGA Rework Station delivers a comprehensive solution. It effectively solves every major challenge technical engineers face when dealing with high-end chipsets, dense PCBs, and lead-free soldering profiles.

1. Unmatched Accuracy with an HD Optical Alignment System

The most premium feature that sets this advanced BGA Rework Station apart from standard hot-air tools is its integrated Digital Optical Alignment System. The machine utilizes a high-definition 2-Megapixel CCD camera system that supports automatic optical zoom functionality.

Through a specialized split-optics prism mechanism, engineers can simultaneously observe the underside array of the BGA chip and the target footprint on the motherboard. This overlapping image is displayed in vivid clarity on a 15-inch industrial monitor. By utilizing high-precision micrometers for multi-directional adjustments (X, Y axes, and

angle rotation), aligning the chip perfectly with the PCB pads becomes effortless. Combined with an automatic vacuum adsorption mechanism, this BGA Rework Station achieves a staggering linear alignment accuracy of up to

mm. This ultra-precise placement entirely eliminates the risk of misaligned solder joints, bridging, or short circuits.

Furthermore, this particular BGA Rework Station features an integrated red-dot laser indicator system. This smart positioning aid allows the operator to quickly identify the exact center point of the component and the PCB during initial setup, vastly accelerating the workflow.

2. 3-Zone Independent Heating and Real-Time Temperature Monitoring

To protect multi-layer motherboards from warping and delicate silicon chipsets from thermal shock, the ZM-R7220A BGA Rework Station incorporates a rigorous thermal management layout consisting of three independently controlled heating zones:

Top Heater (1.45KW): Delivers precise hot-air flow directly to the top of the component.
Bottom Heater (1.2KW): Supplies auxiliary hot air from beneath the board to balance thermal distribution.
Large Area Infrared Preheater (2.7KW): Measuring
mm, this zone utilizes medium-wave ceramic infrared heating plates to evenly warm the entire PCB profile, drastically reducing local thermal stress.

An advanced closed-loop control system utilizing highly sensitive K-type thermocouples maintains temperature stability with a minimal margin of error of just

. Crucially, via its built-in 7-inch HD touchscreen interface, the BGA Rework Station offers a real-time temperature curve display and automatic profile analysis function. Technicians can easily program multi-stage thermal profiles (including preheating, soaking, reflow, and cooling stages) tailored to meet the exact specifications of both leaded and lead-free solder alloys. Once the reflow cycle concludes, an integrated laminar cooling fan activates automatically to cool the assembly rapidly and preserve the structural integrity of the components.

3. Detailed Technical Specifications of the Seamark ZM-R7220A

The following detailed data table highlights the robust operational capabilities and physical parameters of this professional-grade BGA Rework Station:

Technical Attribute	Specification Details for ZM-R7220A
Power Supply	AC220V $\pm$10% (50/60Hz Frequency)
Maximum Total Power	5.65 KW
Top Hot-Air Heater Power	1.45 KW
Bottom Hot-Air Heater Power	1.2 KW
IR Preheater Power	2.7 KW
Supported PCB Dimensions	Maximum: 412 370 mm \| Minimum: 6 6 mm
Supported BGA Chip Dimensions	Maximum: 60 60 mm \| Minimum: 2 2 mm
Alignment Accuracy	$\pm$0.0 mm
PCB Positioning Mechanism	V-groove design combined with a universal fixture
Net Equipment Weight	76 KG
Overall Machine Dimensions	Length 685 Width 633 Height 850 mm

4. Broad Industrial Applications and Enhanced Safety Protocols

Thanks to its highly flexible component size handling capabilities, the Seamark ZM-R7220A BGA Rework Station is widely adopted across multiple demanding fields of high-tech hardware repair:

Reworking core hardware components on laptops, desktops, server mainboards, and tablets.
Reballing and reflow repairs for heavy-duty CPUs and GPUs found in modern gaming consoles.
Replacing power management ICs and flash memory chips in smartphones and telecom infrastructure equipment.
Repairing LED module strips, medical electronics, and industrial automation control boards.

To guarantee absolute safety for the operator, this BGA Rework Station is engineered with an emergency stop button prominently positioned on the front panel. An integrated intelligent pressure sensor automatically shuts down the heating power and triggers an audible alarm if excessive physical pressure or anomalous thermal conditions are detected on the PCB, protecting both the expensive circuitry and the user.

Conclusion

Blending a state-of-the-art optical alignment system with an absolute precision of

mm, a smart 3-zone thermal profiling setup, and an intuitive control interface, the Seamark ZM-R7220A BGA Rework Station represents an incredibly worthwhile investment for any business aiming for excellence in micro-soldering. By pushing successful repair rates up to 99.9%, it actively minimizes scrap rates, accelerates turnaround times, and maximizes profitability for modern service centers.
