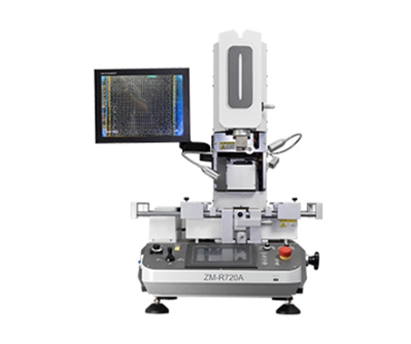

Seamark ZM-R720A BGA Rework Station
Explore the high-precision Seamark ZM-R720A BGA Rework Station featuring an automatic feeding device and carbon fiber IR heating. Perfect for 0201 micro-components and LED repairs.
Product Information
Seamark ZM-R720A BGA Rework Station: The Ultimate Solution for Micro-Component and LED Repair
As modern electronics continue to shrink in size, the manufacturing and servicing of next-generation micro-circuits demand incredibly strict technical standards. Advanced smartphone chips, high-end LED modules, and micro-components like 0201 packages cannot be safely handled by standard hot-air tools. To adapt to this trend, large-scale service centers and manufacturing facilities require a technological breakthrough.
This is precisely why the Seamark ZM-R720A BGA Rework Station was engineered. It stands as a premium, high-tech machine specifically designed to handle micro-sized components with unrivaled precision and automated efficiency.
1. Smart Automatic Feeding System Integrated into the BGA Rework Station
The most groundbreaking and high-value improvement on this premium BGA Rework Station is the automation of the entire component handling process. Unlike conventional machines, this system comes standard with an Automatic Feeding Device and an optional feeding fixture optimized for precision LED chips.
This automation works in perfect sync with an imported 2-Megapixel high-definition CCD camera that features automatic optical zoom capabilities. Complex, microscopic solder ball arrays are projected with crisp, lifelike clarity on a 15-inch industrial monitor boasting a Full HD 1080P resolution (16:9 aspect ratio). Complemented by a red-dot laser positioning indicator, this BGA Rework Station allows operators to automatically pick, place, and reflow chips with a linear alignment accuracy of $\pm0.01$mm. This eliminates manual handling errors and completely prevents hand tremors from ruining micro-component placement.
2. Breakthrough Carbon Fiber Infrared Heating and Precise Thermal Control
When dealing with miniature devices like 0201 micro-components, managing temperature distribution is a matter of life and death for the silicon die and the surrounding PCB layout. To address this challenge, the ZM-R720A BGA Rework Station upgrades its heat management infrastructure to an advanced configuration:
- Top Heater (1.45KW): Channels a highly focused hot-air stream directly onto the tiny component’s surface area.
- Bottom Heater (1.2KW): Supplies consistent hot air from beneath the board to balance the thermal load.
- Carbon Fiber IR Preheater (3.2KW): Features a large preheating footprint ( mm) that utilizes carbon fiber infrared tube heating technology, protected by a high-temperature resistant microcrystalline panel. This technology delivers deeper thermal penetration and exceptionally uniform energy distribution without causing localized thermal shock.
The entire reflow process is monitored via a closed-loop system utilizing sensitive K-type thermocouples. Consequently, this BGA Rework Station achieves a strict temperature control tolerance of (vastly superior to standard industry variations). Through a 7-inch touchscreen controller, engineers can easily customize multi-stage temperature curves—including preheating, soaking, reflow, and cooling stages—making it fully compliant with both leaded and lead-free soldering profiles.
3. Detailed Technical Specifications of the Seamark ZM-R720A
The data table below outlines the robust performance characteristics and professional parameters of this specialized BGA Rework Station:
| Technical Attribute | Specification Details for ZM-R720A |
|---|---|
| Power Supply | AC220V $\pm$10% (50/60Hz Frequency) |
| Maximum Total Power | 6.15 KW |
| Top Hot-Air Heater Power | 1.45 KW |
| Bottom Hot-Air Heater Power | 1.2 KW |
| Carbon Fiber IR Preheater Power | 3.2 KW (Other auxiliary components: 0.2 KW) |
| Supported PCB Dimensions | Maximum: 412
|
| Supported BGA Chip Dimensions | Maximum: 60
|
| Alignment Accuracy | $\pm$0.01 mm |
| Automatic Feeding Device (Feeder) | Fully Integrated |
| Image Display System | 15″ HD Industrial Monitor (1080P 16:9) |
| Temperature Control Precision | $\pm$1 °C |
| Net Equipment Weight | 84.5 KG |
| Overall Machine Dimensions | Length 810
|
4. Broad Industrial Applications and Intelligent Safety Protocols
Capable of operating on components down to an ultra-micro scale of just mm, the Seamark ZM-R720A BGA Rework Station opens up extensive opportunities across highly sophisticated industries:
- Reworking and reballing power management ICs, flash memories, and processors on flagship smartphones and smartwatches.
- Replacing micro-LEDs on premium high-resolution LED matrix screens and commercial digital displays.
- Servicing minute surface mount components (0201) on telecom infrastructure, high-definition security cameras, and wearable technology.
- Repairing dense laptop, tablet, and server logic boards where component density is extremely high.
To safeguard the user and the expensive hardware being serviced, this BGA Rework Station features an array of multi-layered safety mechanisms. It includes a highly visible emergency stop switch on the main interface. Furthermore, smart pressure and thermal sensors will automatically kill the heating elements and trigger an audible alarm if safe temperature thresholds are broken or if abnormal physical pressure is applied to the PCB assembly.
Conclusion
The flawless synthesis of carbon fiber infrared preheating, automated component feeding, and a hyper-accurate thermal tolerance cements the Seamark ZM-R720A BGA Rework Station as a market leader for micro-component rework. Investing in this machine provides long-term strategic value for repair labs and electronics factories looking to future-proof their operations and embrace the microscopic evolution of modern hardware design.
