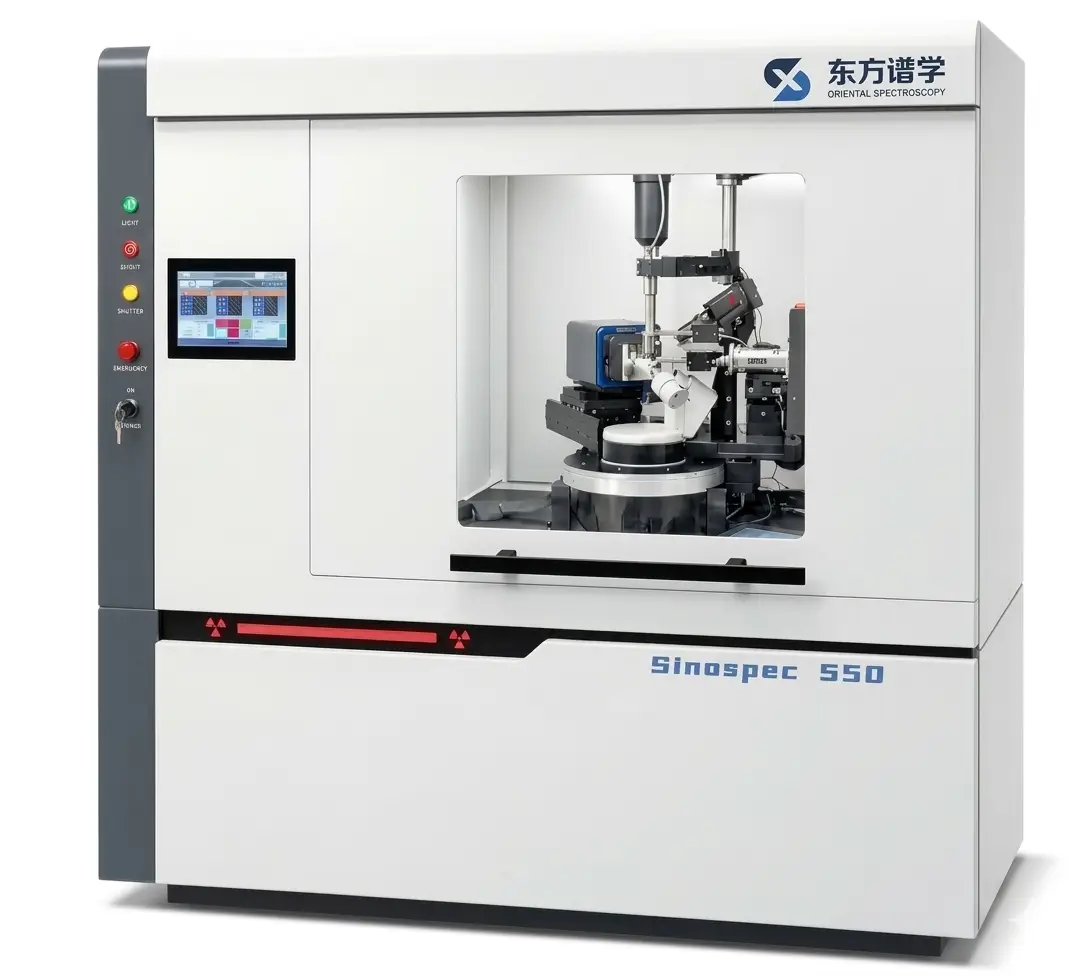

Sinospec S50 Single-Crystal X-ray Diffractometers
An in-depth analysis of the high-tech single-crystal X-ray diffractometer from Sinospectra. Explore advanced 3D atomic structure resolution solutions along with authorized distribution and technical support services in Vietnam by Maxlab Equipment.
Product Information
Breakthrough From Crystals To 3D Atomic Structures With Single-Crystal X-ray Diffractometers
In the era of rapid development in materials science, pharmaceuticals, and semiconductor technology, understanding the solid-state crystalline microstructure at the atomic level is the key factor determining the success of any research. Unlike the powder diffraction method, which only provides average phase structure information, the single-crystal analysis technique opens a direct window. It allows for the precise determination of the spatial positions of individual atoms, bond lengths, and bond angles within the crystal lattice.
To meet the increasingly stringent analytical standards in Vietnam, the new generation of single-crystal X-ray diffractometers, integrated with advanced solutions from Sinospectra, is becoming the standard configuration sought after by leading laboratories. In the Vietnamese market, Maxlab Equipment is proud to be the pioneer in distributing this high-tech solution, bringing a comprehensive analytical ecosystem from powerful hardware to optimized automated software workflows.
1. What Is A Single-Crystal X-ray Diffractometer?
A single-crystal X-ray diffractometer (SC-XRD) is the most specialized and accurate instrument for crystal structure analysis available today. Operating on the principle of X-ray diffraction when interacting with the periodic lattice of atoms within a single crystal, the device records diffraction spots. It then applies mathematical calculations to reconstruct electron density and construct a complete 3D atomic structure model.
This equipment plays a core role in:
- Coordination Chemistry: Determining the structure of complex metal complexes and metal-organic frameworks (MOFs).
- Pharmaceuticals & Biology: Identifying polymorphism in active pharmaceutical ingredients (APIs), the structure of small molecules, and sensitive biological structures.
- Materials Science: Researching novel materials, semiconductor components, and optical crystals with challenging structures.
2. Sinospectra Solution Suite – Redefining Single-Crystal Diffraction Standards
When discussing modern technological advances in X-ray diffraction, the manufacturer Sinospectra stands out. Known for its highly integrated design philosophy and open system architecture, Sinospectra has developed single-crystal X-ray diffractometers (such as the Sinospec S50 or Sinospec S1200) to fundamentally resolve classic laboratory bottlenecks: microcrystals, weakly diffracting samples, and environment-sensitive crystals.
The outstanding technological features composing the system’s performance include:
High-Brilliance Rotating-Anode Source
For micro-sized crystals or samples with poor diffraction capabilities, traditional sealed-tube X-ray sources often fail to deliver sufficient photon flux density. Sinospectra equips its systems with a high-power source combined with multilayer focusing optics. This combination concentrates an intense X-ray beam onto an ultra-small sample area, maximizing the intensity of diffraction spots and enabling high-quality data collection from crystal samples previously deemed “impossible.”
High-Precision Four-Circle Kappa Goniometer
The flexible four-axis coordinated movement mechanism of the Kappa goniometer allows the crystal sample to be precisely positioned within the X-ray beam at any angle. This optimizes data acquisition strategies, ensures maximum coverage of reciprocal space, and efficiently collects complete diffraction data in a single setup.
High-Sensitivity Direct Photon-Counting Detector
The system utilizes a next-generation direct photon-counting area detector. Featuring small pixel sizes and a large active area, the detector offers excellent energy discrimination to eliminate physical background noise and secondary fluorescence. Due to its rapid readout speed and wide dynamic range, the device accurately records even the weakest diffraction spots located adjacent to intense ones.
Variable Low-Temperature System
Organic crystals or biological complexes are often unstable at room temperature under the thermal effects of a high-intensity X-ray beam. An integrated liquid-nitrogen cryosystem option maintains the sample under stable low-temperature conditions (down to 90K or lower). This protects sensitive crystals from thermal degradation and reduces atomic thermal motion, resulting in sharper and more accurate structural data.
3. End-to-End Workflow For Optimal Efficiency
The superiority of the Sinospectra single-crystal X-ray diffractometer extends beyond its hardware into the seamless execution of its closed-loop software workflow, tracking from sample loading to 3D structure resolution:
- Crystal Alignment & Screening: The system automatically centers the crystal into the X-ray beam focus. After a few seconds of preliminary screening, the software evaluates crystal quality (peak sharpness, single vs. multi-crystalline status) to determine whether to proceed with deep data collection.
- Data Integration & Merging: Data collection proceeds automatically based on the programmed optimal strategy. Raw data from thousands of diffraction frames are integrated for intensity, corrected for physical absorption factors, and merged into a single data file.
- Structure Solution & Refinement: Utilizing modern algorithms, the system assists researchers in phase determination, locating atoms within the unit cell, and refining the model until the optimal reliability factor (R-factor) is achieved.
4. Maxlab Equipment – A Trusted Partner For Vietnamese Laboratories
Investing in a single-crystal X-ray diffractometer system requires a significant budget alongside strict technical requirements for operation and maintenance. Therefore, choosing a highly competent supplier is critical to maximizing the equipment’s potential.
Maxlab Equipment is currently the official distributor of X-ray diffraction product lines from the Sinospectra brand in the Vietnamese market. When choosing Maxlab, research institutes and customers receive key foundational values:
- 100% Genuine Products: Maxlab Equipment guarantees the supply of complete instrument systems, accessories, and accompanying software imported directly from Sinospectra, fully supported by certificates of origin (CO) and quality (CQ).
- Specialized Configuration Consulting: Maxlab’s expert team conducts physical assessments of research requirements (inorganic materials, pharmaceutical polymorphs, or biological structures) to recommend the most suitable configuration of sources, detectors, and goniometers, preventing budget waste.
- Factory-Standard Technical Support: Maxlab maintains a team of engineers trained directly by Sinospectra specialists, fully prepared to handle radiation-safe lab design, installation, calibration, specialized operational training, and routine periodic maintenance.
5. Conclusion
A single-crystal X-ray diffractometer remains the ultimate tool for unlocking structural mysteries at the atomic level. With the combination of top-tier hardware technology from Sinospectra and comprehensive technical support from Maxlab Equipment, research centers, institutes, and universities in Vietnam can confidently establish a world-class crystal structure laboratory, driving high-impact scientific discoveries and elevating industrial product control standards.
