Iqiege 10 Veiyee Integrated Petrographic Cutting And Grinding Machine

Discover the genuine Iqiege 10 Veiyee Integrated Petrographic Cutting And Grinding Machine at Maxlab Equipment. An “All-in-One” solution for precise geological thin section preparation, featuring a recirculating cooling system and 3000 rpm stepless grinding for optimal lab efficiency.

Peak of Geological Sample Preparation Technology: Iqiege 10 Veiyee Integrated Petrographic Cutting And Grinding Machine

In the fields of geology, mining, and civil engineering material testing, preparing thin sections with micrometer-level thickness requires absolute precision. This critical process directly determines the accuracy of microscopic structural analysis under optical microscopes. To optimize this complex workflow, Maxlab Equipment proudly introduces the Iqiege 10 Veiyee Integrated Petrographic Cutting And Grinding Machine – a comprehensive, breakthrough solution from China’s leading manufacturer.

🌟 Product Overview

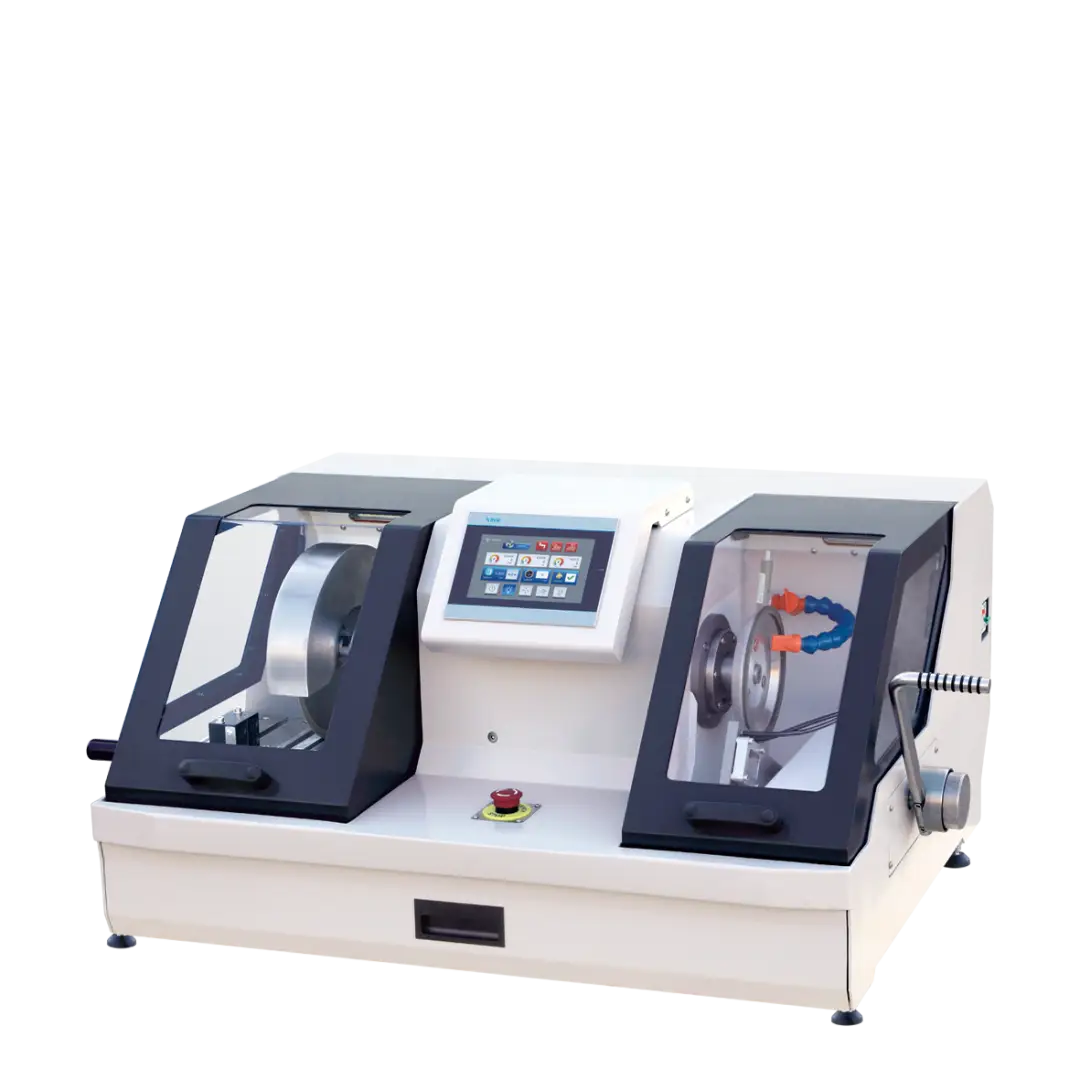

The Iqiege 10 Veiyee Integrated Petrographic Cutting And Grinding Machine is a high-tech apparatus that perfectly combines two independent processes—sample cutting and sample grinding/polishing—into a single desktop system. This intelligent configuration eliminates the necessity of purchasing multiple bulky machines, maximizing laboratory space utilization while significantly reducing initial investment capital for enterprises.

Manufactured on the precision mechanical production lines of Veiyee, the equipment features a robust chassis, corrosion-resistant materials, and exceptional durability under high-intensity workloads. It serves as an indispensable asset for geological research institutes, mining operations, cement production facilities, and specialized university laboratories.

⚙️ Notable Technical Specifications

To fully appreciate the robust performance capabilities of this model, here are the core technical specifications:

Power Supply: AC 220V / 50Hz (Single Phase), perfectly compatible with standard electrical grids in modern laboratories.
Rated Power: 2.5 kW, delivering strong torque to effortlessly process high-hardness rock specimens such as granite and quartz.
Cutting System: Utilizes a Φ250 mm diamond cutting blade (with optional shaft hole diameters of Φ32mm or Φ25.4mm), ensuring smooth, clean cuts without fracturing the samples.
Grinding System: Equipped with a specialized grinding disc featuring a diameter of Φ175 mm.
Grinding Disc Speed: Steplessly adjustable from 0 to 3000 rpm, flawlessly catering to every stage from coarse grinding to ultra-fine polishing.

✨ Outstanding Advantages Of The Iqiege 10 Veiyee

1. Smart “All-in-One” Integrated Design

The combination of independent cutting and grinding chambers allows technicians to execute a continuous, closed-loop workflow. Immediately after cutting a rock slice to its preliminary thickness, the sample can be instantly transferred to the adjacent grinding disc for micro-thickness refinement, saving valuable time otherwise spent moving between different workstations.

2. High-Efficiency Recirculating Cooling System

Friction-induced heat generated during the rock cutting and grinding process is the primary factor that can alter the original mineralogical structures. The Iqiege 10 Veiyee Integrated Petrographic Cutting And Grinding Machine features a high-pressure recirculating coolant spray system directed at the contact zone. This not only preserves the structural integrity of the petrographic sample but also substantially extends the operational lifespan of the diamond blades and grinding discs.

3. High-Precision Thickness Control

Driven by the stepless speed regulation system of up to 3000 rpm and paired with specialized sample clamping fixtures, the equipment enables operators to thin down rock, concrete, and ceramic specimens to a standard thickness of 20 to 30 micrometers. The finalized sample surface achieves absolute flatness without scratches, making it perfectly prepared for polarized light microscopy observation.

4. Safe and User-Friendly Operation

The cutting chamber is enclosed by a heavy-duty, transparent mica protective cover, enabling technicians to safely monitor internal progress while providing total protection against water splashes and flying debris. The intuitive control panel features waterproof buttons, ensuring that operations remain simple, straightforward, and highly secure.

💼 Maxlab Equipment – Your Leading Trusted Supplier

When choosing the Iqiege 10 Veiyee Integrated Petrographic Cutting And Grinding Machine from Maxlab Equipment, customers receive unparalleled corporate value:

100% Genuine Products: Full certification of origin and quality direct from the manufacturer Veiyee.
Long-Term Warranty: Dedicated professional technical support and periodic maintenance provided by experienced engineers.
Readily Available Consumables: A continuous supply of high-grade diamond cutting blades, grinding discs, and polishing powders, ensuring your laboratory operations run smoothly without interruption.

Contact Maxlab Equipment today to receive the best promotional quotes and optimal technological solutions for your laboratory facility!
