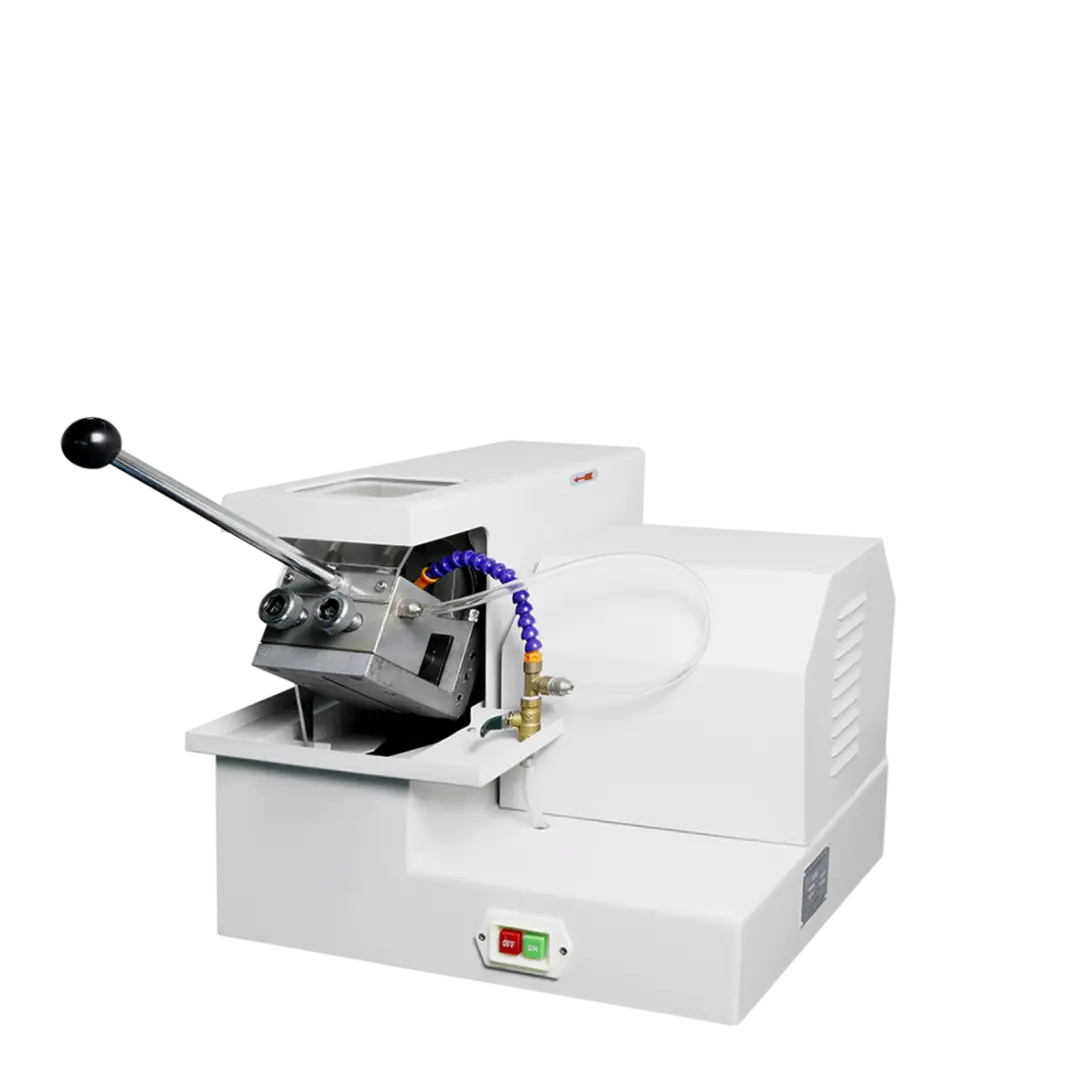

iqiege® 155D Veiyee Manual Metallographic Specimen Cutting Machine

Discover the genuine iqiege® 155D Veiyee manual metallographic specimen cutting machine at Maxlab Equipment. Featuring a powerful 2.2kW motor and optimal cooling system, it delivers precise 55x55mm sample sectioning at an economical cost.

Key Guide to Selecting the iqiege® 155D Veiyee Manual Metallographic Specimen Cutting Machine for Your Laboratory

In the precise workflow of material microstructure analysis, the specimen preparation phase plays a decisive role in the accuracy of your final inspection results. If the cut surface suffers from thermal damage or heavy vibration, subsequent steps like grinding, polishing, and metallographic microscope observation will yield flawed data. To completely solve this challenge while keeping your initial investment budget-friendly, the iqiege® 155D Veiyee manual metallographic specimen cutting machine stands out as the premier solution trusted by mechanical and material testing laboratories worldwide.

Currently, this robust equipment is distributed and fully supported by Maxlab Equipment, ensuring absolute peace of mind regarding operational quality, longevity, and technical service.

1. iqiege® 155D Veiyee – A Flawless Legacy and Modern Upgrade

The Veiyee brand (Laizhou Weiyi Experimental Machine Manufacturing Co., Ltd.) has long established its dominant position in global material testing markets thanks to its durable metallographic sample preparation lines. The iqiege® 155D model is the direct, modernized evolution of the legendary Q-2A cutting machine series.

This equipment features a compact, space-saving benchtop design without compromising on structural integrity. The upgraded heavy-duty cast chassis drastically minimizes operational vibrations. As a direct result, laboratory technicians can effortlessly achieve flat, smooth cut surfaces, eliminating common specimen preparation errors such as structural burning or localized surface deformation.

2. Core Technical Specifications of the iqiege® 155D Model

To fully understand why this manual cutting system is perfectly suited to your daily laboratory throughput, let us look over the essential technical specifications provided by Maxlab Equipment:

Maximum Cutting Capacity: Accommodates specimen cross-sections up to 55 × 55 mm.
Standard Cutting Disc Dimensions: Fits Φ300 × 2 × Φ32 mm abrasive wheels.
Spindle Rotation Speed: Operates at 2800 to 2860 rpm, delivering swift and clean cutting force.
Powerful Motor Capacity: Features a 2.2 kW motor, optimizing the handling of tough alloy steels.
Power Supply Requirements: Utilizes 3-phase AC 380V at 50Hz, ensuring continuous operation without voltage drops.
Net Machine Weight: Weighs approximately 80 kg, providing excellent stabilization during heavy workpiece sectioning.

3. Outstanding Advantages Attracting Material Engineers

Flexible Manual Cutting Mechanism with Direct Force Feedback

Operating via an ergonomic manual lever system to lower the cutting wheel onto the workpiece, the iqiege® 155D allows technicians to directly feel the material’s resistance during sectioning. Consequently, the user can manually modulate the feed rate dynamically. This tactile feedback prevents premature wheel wear, chipping, or fracturing when encountering localized hard spots within the metal sample.

High-Flow Integrated Recirculating Cooling System

Friction-induced heat generated during metal sectioning is the primary enemy of metallographic microstructures. This machine comes standard with an integrated cooling system featuring dual nozzles that spray cooling fluid directly onto the cutting interface. This rapid heat dissipation prevents overheating from altering the material’s microstructural organization, preserving the true physical characteristics for subsequent analysis.

Low Operational and Maintenance Cost

Compared to fully automated cutting machines which demand premium budgets, the iqiege® 155D manual cutting machine offers an incredibly economical initial cost. Furthermore, standard consumable parts, such as silicon carbide abrasive discs or quick-clamping vises, are constantly stocked at Maxlab Equipment at affordable prices, optimizing annual operating budgets for testing facilities.

4. Real-World Applications of the iqiege® 155D Manual Cutting Machine

Thanks to its stable performance and heavy-duty build, this model is widely deployed across diverse industrial sectors and scientific research facilities:

Industrial QA/QC Laboratories: Inspecting the quality of castings, evaluating effective case depth of carburized or nitrided layers after heat treatment.
Welding Inspection: Cross-sectioning welded joints to check for internal defects such as porosity, slag inclusion, or micro-cracking.
Research Institutes & Universities: Supporting academic instruction and hands-on laboratory practice for metallurgy and materials science students.

5. Why Choose Your Equipment From Maxlab?

When purchasing the iqiege® 155D Veiyee manual metallographic specimen cutting machine from Maxlab Equipment, customers receive far more than a standalone hardware unit. Every purchase comes backed by a comprehensive after-sales ecosystem:

Guaranteed 100% genuine imported equipment directly from Veiyee factories.
Experienced engineering team providing setup assistance and detailed technology handovers.
Long-term warranty coverage with a reliable supply of genuine spare parts and consumable cutting wheels.

Contact Maxlab Equipment today to receive the most competitive quotation for this highly efficient and economical metallographic sample cutting machine!
