GTQ-5000A PCB Sample Cutting Machine
Discover the genuine GTQ-5000A PCB Sample Cutting Machine at Maxlab Equipment. An ideal automatic precision cutting device for electronic circuit boards, preventing thermal deformation with high accuracy for QA/QC laboratories.
Product Information
GTQ-5000A PCB Sample Cutting Machine: The Ultimate Solution For Electronics Laboratories
In the electronics manufacturing and testing industry, analyzing the microstructure of printed circuit boards (PCBs) plays a decisive role in product quality. To accurately evaluate copper layers, via holes, or solder joints, engineers need a perfect, non-deformed, crack-free sample surface. The GTQ-5000A PCB Sample Cutting Machine, distributed by Maxlab Equipment, is the comprehensive answer to this demanding technical challenge.
1. Introduction To The GTQ-5000A PCB Sample Cutting Machine

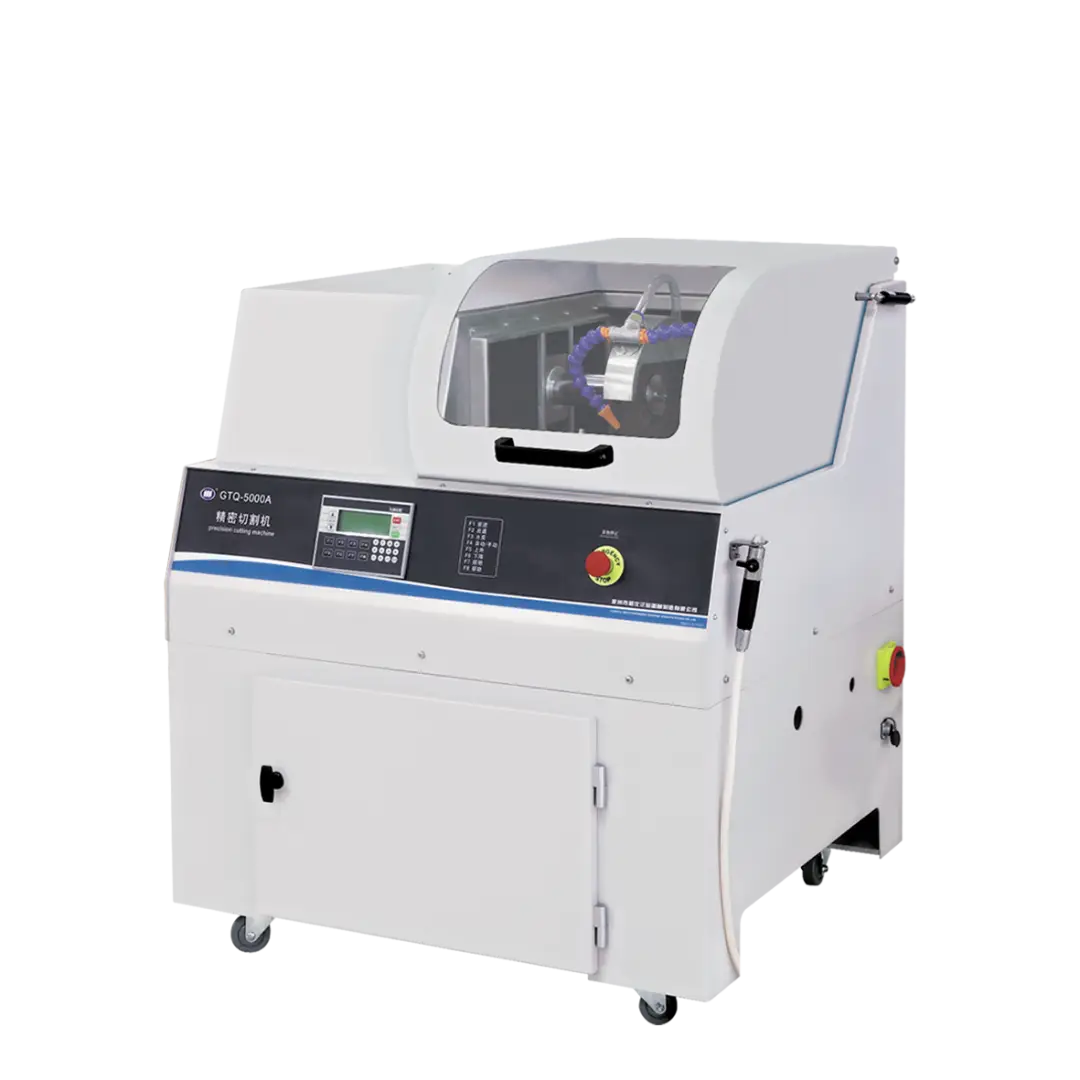

The GTQ-5000A PCB Sample Cutting Machine is a high-end, automatic precision cutting device designed for metallographic sample preparation of heat-sensitive and force-sensitive materials, especially multi-layer printed circuit boards (PCBs), semiconductor components, ceramics, and hard alloys. Coming from a leading brand in material analysis equipment, this model delivers micrometer-level precision, preserving the original structure of the measurement specimen perfectly.
2. Outstanding Features Of The GTQ-5000A PCB Sample Cutting Machine
🔹 Intelligent And Precise Automatic Cutting Mode
The biggest difference of the GTQ-5000A PCB Sample Cutting Machine is its automatic operation capability via a menu control system displayed on a clear LCD screen. Users can easily set the feed speed from 0 to 1.50 mm/s with a micro-adjustment step of 0.01mm. This mechanism completely eliminates the instability of manual cutting, ensuring uniform cutting pressure and protecting the ultra-fine circuits on the PCB from peeling or delamination.
🔹 High-Efficiency Recirculating Cooling System
When cutting PCB boards, high friction easily generates heat, which can melt the base resin layer (epoxy resin, fiberglass) or deform lead/tin solder joints. The GTQ-5000A PCB Sample Cutting Machine is equipped with a large-flow recirculating cooling system. The cooling fluid is sprayed directly onto the cutting zone to dissipate heat immediately, keeping the cut surface completely flat, smooth, and free from thermal burn marks.
🔹 Optimal Design For Blade Wear Compensation
After a period of use, the abrasive cutting disc will wear out and decrease in diameter. The main shaft lifting system of the GTQ-5000A PCB Sample Cutting Machine allows users to flexibly adjust the distance between the diamond blade and the specimen. This feature maximizes the life of diamond or silicon carbide blades, significantly reducing consumable material costs for the laboratory.
🔹 Durable And Safe Cutting Chamber
The machine casing and cutting chamber are made of high-quality stainless steel, ensuring absolute resistance to corrosion from water and cooling chemicals. The chamber door features a wide viewing window and integrates a safety switch. The machine will stop operating immediately if the door is opened unexpectedly during cutting, providing maximum protection for the laboratory technicians.
3. Detailed Technical Specifications
- Maximum Cutting Capacity: Material diameter up to Φ80mm
- Spindle Speed: Fixed at 1950 rpm, optimized for 250mm diameter cutting discs
- Standard Blade Size: 250 × 1.5 × 32 mm
- Axis Travel Distance: Automatic Y-axis (200mm), Z-axis height adjustment (50mm), manual X-axis specimen shift (50mm)
- Motor Power: 1.8 kW, powerful and stable 3-phase 380V/50Hz power supply
- Machine Weight: 210 kg, heavy-duty rigid structure minimizes vibration during operation
4. Practical Applications In The Electronics Industry
For printed circuit boards, the GTQ-5000A PCB Sample Cutting Machine is an indispensable piece of equipment in the quality assurance (QA/QC) and failure analysis workflow:
- Cross-section Cutting: Inspecting the copper plating thickness inside via holes and micro-vias.
- SMT Solder Joint Analysis: Checking the wetting, alignment, and voiding defects underneath BGA and QFN chips.
- Substrate Material Inspection: Evaluating the bonding quality between fiberglass layers and resin matrix without causing mechanical delamination.
5. Why Choose Maxlab Equipment As Your Partner?
Maxlab Equipment is proud to be a leading, prestigious unit in Vietnam specializing in providing metallographic laboratory equipment and material analysis solutions. When choosing the GTQ-5000A PCB Sample Cutting Machine at Maxlab Equipment, customers will receive:
- 100% Genuine Products: Fully accompanied by Certificates of Origin (CO) and Certificates of Quality (CQ).
- Long-Term Warranty Policy: The engineering team at Maxlab Equipment is thoroughly trained, ready to support technical issues, installation, and technology transfer on-site.
- Comprehensive Consumables Solution: Providing a full range of diamond blades, SiC abrasive wheels, and specialized anti-rust cooling fluids that best fit the GTQ-5000A PCB Sample Cutting Machine.
Contact Maxlab Equipment today to get the best quotation and expert advice on PCB sample preparation solutions for your business!
