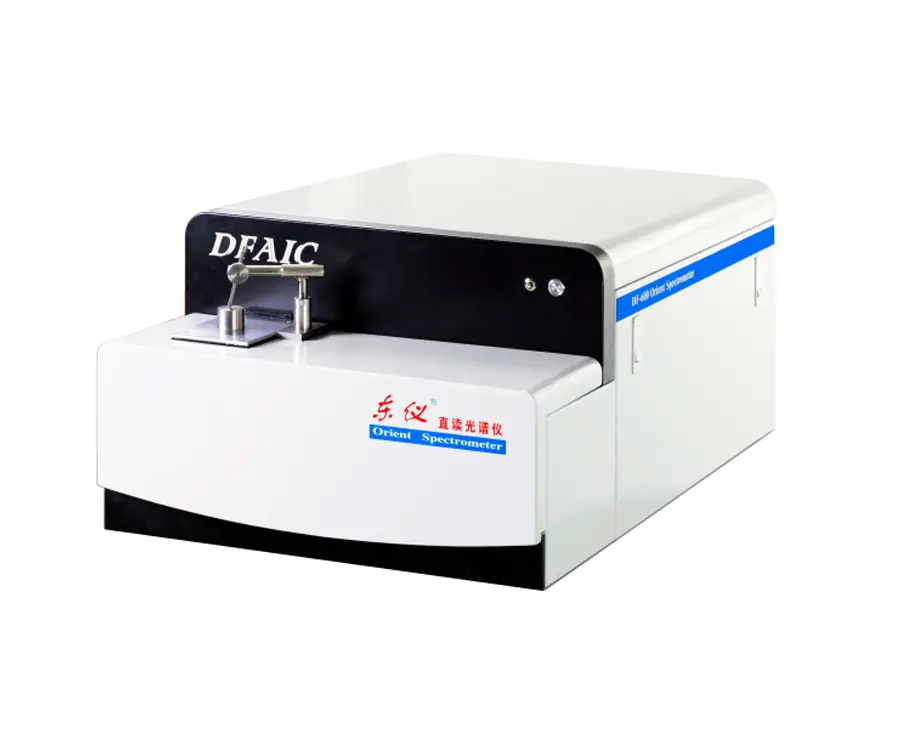

DF-660 Dongyi Photoelectric Spark OES Optical Emission Spectrometer

Discover the genuine Spark OES Optical Emission Spectrometer DF-660 from Maxlab Equipment. A fast, accurate full-spectrum CCD metal analysis solution measuring C, S, P, N for all labs and foundries.

Product Information

SPARK OES OPTICAL EMISSION SPECTROMETER DF-660: A BREAKTHROUGH METAL ANALYSIS SOLUTION FOR MODERN LABS
In the metallurgy, casting, and precision mechanical engineering industries, controlling the exact chemical composition of materials plays a decisive role in product quality. A minor error in the percentage of elements can lead to the rejection of an entire batch, causing massive financial losses and damaging a company’s reputation. To completely solve this problem, Maxlab Equipment proudly introduces the DF-660 Spark OES Optical Emission Spectrometer—the ultimate, rapid, and cost-effective solution for comprehensive metal composition analysis on the market today.

What Is A Spark OES Optical Emission Spectrometer?

A Spark OES Optical Emission Spectrometer utilizes a high-energy spark excitation source to vaporize and excite atoms within a metal sample. When these excited atoms return to their ground state, they emit characteristic light radiations. The optical system captures and analyzes these spectral bands to identify and determine the precise percentage concentration of each element present in the sample. This is widely considered the standard, irreplaceable method for industrial metal quality control.

Outstanding Highlights Of The DF-660 Distributed By Maxlab

The DF-660 model possesses powerful technological upgrades, delivering superior operating performance compared to older generation spectrometers available on the market:

1. Next-Generation Full-Spectrum CCD Detector Technology

Instead of using Photomultiplier Tubes (PMT) which are strictly limited by the number of fixed elemental channels, the DF-660 applies advanced full-spectrum CCD detector technology (DF-VI). The machine is capable of capturing the entire spectral range of the sample simultaneously. This allows users to easily add or upgrade new elements for analysis via software modifications without any physical intervention or additional hardware installation.

2. Extended Wavelength Range – Measuring Difficult Non-Metal Elements

With a customizable extended wavelength range spanning from 130nm to 800nm, the DF-660 easily and accurately analyzes critical non-metal elements in the deep ultraviolet region such as Carbon (C), Sulfur (S), Phosphorus (P), and especially Nitrogen (N). These are the core elements that dictate the mechanical properties, hardness, and durability of various alloy steels and cast iron.

3. Flexible Multi-Matrix Metal Analysis

With just a single compact bench-top device, the DF-660 can handle almost all common metal matrices and alloys on the market today, including: Iron (Fe), Aluminum (Al), Copper (Cu), Nickel (Ni), Zinc (Zn), Tin (Sn), Titanium (Ti), and Magnesium (Mg). This versatile feature transforms the DF-660 into an effective assistant for testing centers or multi-material casting foundries.

4. Absolute Temperature-Controlled Optical Chamber

The equipment integrates a 3rd generation temperature control system with an extreme precision of up to ±0.2°C. The optical chamber is always maintained at an ideal temperature level, completely preventing wavelength drift caused by external weather fluctuations. This ensures that the measurement results maintain high repeatability and stability across thousands of sample runs.

Key Benefits For Businesses Choosing The DF-660

    • Lightning-Fast Analysis Speed: It takes only 20 to 30 seconds for a comprehensive measurement, multiplying shift productivity compared to traditional wet chemical methods.
    • Maximum Energy Efficiency: The device features a standby power consumption of only 100W and a maximum excitation power of 800W, significantly reducing operating overhead for the laboratory.
    • Convenient Bench-top Design: Weighing approximately 90kg with optimized dimensions, the machine does not take up much space and is easy to install directly in a workshop QA/QC room or laboratory.

Why Buy Your Spark OES Spectrometer From Maxlab Equipment?

Maxlab Equipment is proud to be a leading prestigious unit in providing analysis solutions and laboratory equipment. When choosing to purchase the DF-660 Spark OES optical emission spectrometer at Maxlab, customers will receive:
    • 100% genuine products with full certificates of origin and quality.
    • A team of highly experienced engineers supporting on-site installation, technology transfer, and calibration curve adjustment.
    • Long-term genuine warranty policy, 24/7 technical support, and full availability of replacement parts and consumables.
Contact Maxlab Equipment today to receive an attractive price quote and the most suitable configuration for your business needs!
