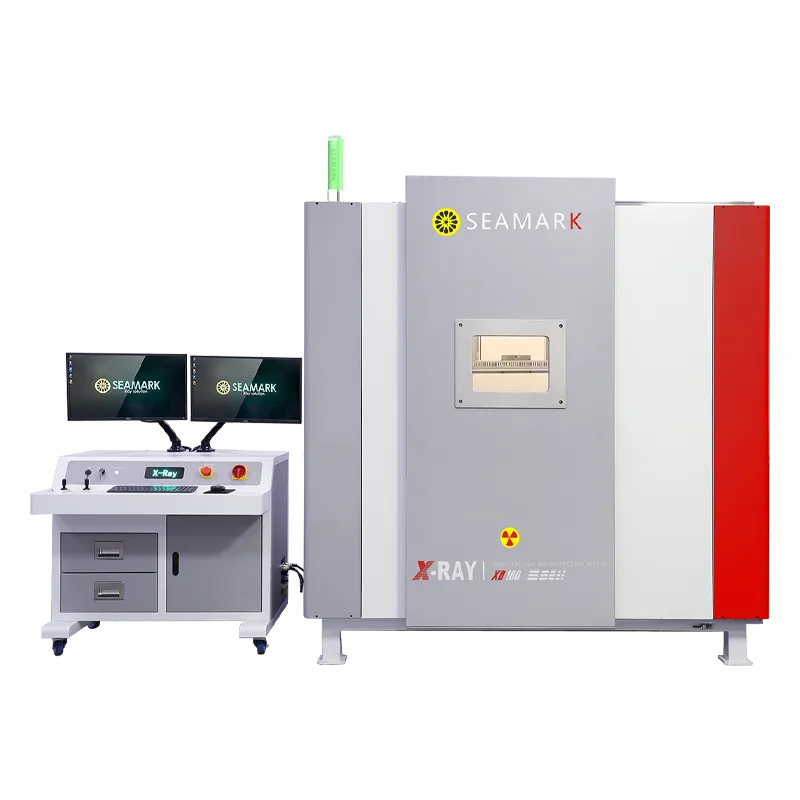

Seamark XD160 Industrial X-Ray: The Gold Standard for Precision Casting and Aluminum Inspection
In the high-stakes world of aerospace, automotive, and precision engineering, the integrity of a cast component is non-negotiable. Subsurface defects such as porosity, shrinkage, and cracks can lead to catastrophic structural failures. The Seamark XD160 Industrial X-Ray System is engineered specifically to solve these challenges. As a high-power, micro-focus inspection solution, the XD160 allows manufacturers to see through dense materials like aluminum and magnesium with unparalleled clarity.

Product Information

Seamark XD160 Industrial X-Ray: The Gold Standard for Precision Casting and Aluminum Inspection

In the high-stakes world of aerospace, automotive, and precision engineering, the integrity of a cast component is non-negotiable. Subsurface defects such as porosity, shrinkage, and cracks can lead to catastrophic structural failures. The Seamark XD160 Industrial X-Ray System is engineered specifically to solve these challenges. As a high-power, micro-focus inspection solution, the XD160 allows manufacturers to see through dense materials like aluminum and magnesium with unparalleled clarity.

1. Introduction to Seamark and the XD160 Series

Seamark ZM is a global leader in intelligent X-ray technology. While many X-ray systems are limited to thin electronic PCBs, the XD160 model is a specialized powerhouse designed for the Precision Casting industry. It bridges the gap between laboratory-grade imaging and shop-floor durability, providing a non-destructive testing (NDT) solution that ensures every part meets the most stringent quality standards.

2. Revolutionary Technical Features

High-Power 160kV Micro-Focus X-Ray Source

The heart of the XD160 is its 160kV X-ray tube. Unlike standard 90kV or 100kV systems, the 160kV capacity provides the high energy required to penetrate thick-walled aluminum castings and dense alloy components. Despite this power, the “Micro-focus” technology maintains a focal spot of less than 5µm, ensuring that the resulting images are sharp enough to detect microscopic hair-line cracks and tiny gas inclusions that lower-power machines would miss.

Advanced 7-Axis Linkage Motion System

Precision castings often feature complex 3D geometries, such as cooling fins, internal chambers, and threaded bosses. To inspect these effectively, the XD160 is equipped with a sophisticated 7-axis motion system. This allows for:
  • 360-degree rotation of the workpiece.
  • Extreme tilt angles (up to 60°) to inspect shadows and hidden interfaces.
  • Synchronized movement between the X-ray source and the detector to maintain optimal focus during dynamic inspection.

Next-Generation Flat Panel Detector (FPD)

The system utilizes a high-resolution digital Flat Panel Detector. This technology eliminates the distortion found in older image intensifiers, providing a “true-to-life” digital representation of the internal structure. With high frame rates, the XD160 offers smooth, real-time imaging, allowing operators to scan parts quickly without “ghosting” or motion blur.

AI-Powered Defect Recognition

Seamark’s proprietary software is more than just a viewing tool; it is an analytical engine. Integrated AI algorithms assist operators by:
  • Automatic Porosity Calculation: Instantly measuring the percentage of voids within a specified area to check against ASTM or ISO standards.
  • Inclusion Detection: Highlighting foreign materials or slag trapped within the casting.
  • CNC Programming: Allowing for automated inspection routines where the machine moves to pre-set positions, captures images, and makes pass/fail decisions without human intervention.

3. Technical Specifications Summary

FeatureSpecification Details
X-Ray Tube Type160kV Micro-focus (Closed Tube)
Focal Spot Size< 5µm
DetectorHigh-Resolution Digital Flat Panel (FPD)
Motion Control7-Axis Linkage (X, Y, Z, Rotate, Tilt, etc.)
Max. Inspection Area430mm x 320mm
Tilt Angle± 60°
Safety StandardRadiation Leakage < 1 μSv/h

4. Strategic Industry Applications

The Seamark XD160 is a versatile asset across several high-tech manufacturing sectors:
  • Automotive Die Casting: Inspecting engine blocks, transmission housings, and structural pillars for electric vehicles (EV).
  • Aerospace Components: Checking turbine blades and fuel system manifolds where zero-defect policies are mandatory.
  • EV Battery Trays: Ensuring the integrity of large-scale aluminum battery enclosures to prevent thermal runaway risks.
  • Precision Hardware: Inspecting high-end sporting goods, medical implants, and industrial valves.

5. Why the Seamark XD160 is a Smart Investment

Optimization of Production Costs

By detecting internal defects in the “as-cast” stage, manufacturers avoid wasting expensive CNC machining time on parts that are destined for the scrap bin. The XD160 pays for itself by significantly reducing tool wear and labor hours lost on defective workpieces.

Compliance with Global Standards

The XD160 helps facilities comply with international NDT standards such as ASTM E155 (Reference Radiographs for Inspection of Aluminum and Magnesium Castings). Having digital X-ray reports adds a layer of professionalism and trust when bidding for international contracts.

Operator Safety and Ergonomics

Safety is paramount. The XD160 features a lead-lined cabinet with heavy-duty interlocking doors. The system is designed to keep radiation leakage well below international safety limits, ensuring a safe environment for 24/7 operation.

Rapid ROI (Return on Investment)

Compared to high-end European or Japanese X-ray systems, Seamark offers a competitive price point without sacrificing technical specs. This allows small to medium-sized foundries to access Tier-1 inspection technology, leveling the playing field in the global supply chain.

6. Sourcing Genuine Seamark XD160 Equipment

When purchasing a Seamark XD160, it is essential to work with authorized distributors who provide:
  • On-site Installation & Calibration: Ensuring the system is tuned for your specific material types.
  • Operator Training: Teaching your staff how to interpret X-ray images and identify specific casting defects.
  • Radiation Safety Certification: Assisting with local government compliance for industrial X-ray use.
Conclusion: The Seamark XD160 is not just an inspection tool; it is a quality assurance powerhouse. For any business involved in the casting of aluminum or magnesium, this 160kV system provides the “eyes” needed to ensure perfection, protect the brand’s reputation, and drive manufacturing efficiency into the future.
