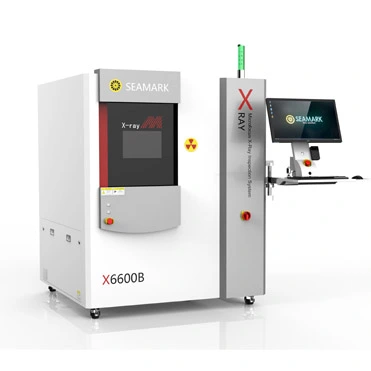

Seamark X6600B 130kV X-ray Machine
The 130kV X-ray machine Seamark X6600B is a leading-edge intelligent offline micro-focus inspection solution for BGA boards, IGBT modules, and sensors. Equipped with advanced AI algorithms and automated CNC operation, it delivers absolute precision and maximum throughput for modern manufacturing facilities.
Product Information
Seamark X6600B 130kV X-ray Machine Review: Advanced Intelligent Offline Inspection for Modern Smart Factories
In an era where electronics and semiconductor manufacturing demand unprecedented levels of precision, identifying hidden internal defects is a critical factor for business survival. Engineered as a high-end offline non-destructive testing system, the Seamark X6600B 130kV X-ray machine stands out as the definitive answer to stringent quality control (QC) challenges faced by today’s advanced manufacturing plants.
1. Overview of the Seamark X6600B 130kV X-ray Machine
The Seamark X6600B is a universal, highly precise micro-focus offline X-ray inspection system. This equipment seamlessly integrates proprietary, innovative, self-developed intelligent detection software with next-generation image processing algorithms.
At the core of the system lies a high-performance X-ray tube design capable of deep material penetration. This enables operators to effortless locate tiny internal structural defects that are invisible to the naked eye. Offering a flexible voltage range, this versatile machine is ideally suited for a wide variety of industrial application scenarios and product specifications.
2. Breakthrough Technological Features of the Seamark X6600B
Ultra-HD Image Processing and Customized AI Algorithms
By combining a high-voltage 130kV X-ray machine source with an Amorphous Silicon Flat Panel Detector featuring a 1536×1536 pixel matrix, the X6600B provides superior image contrast and high magnification. Advanced image enhancement techniques and preset filter algorithms effectively eliminate background noise, emphasizing micro-structural boundaries. Furthermore, the system supports custom-tailored AI intelligent inspection algorithms, allowing the software to automatically detect specific flaws based on individual factory requirements.
Fully Automated CNC Operation
To drive productivity, the machine features a multi-point automatic CNC inspection mode. Operators can program free-point or matrix coordinates based on specific product layouts. Once configured, the automated system takes over, executing batch inspections, capturing images, storing data, and compiling detailed reports automatically. This minimizes human error and significantly accelerates the factory’s quality assurance cycle.
Ergonomic Design and Multi-Layered Safety Protection
The Seamark X6600B optimizes human-machine interaction through an automated sliding door that opens and closes with a single button press. Features like automatic centering display and automatic tracking keep the inspected sample perfectly positioned in the field of view.
Safety remains paramount. The unit features real-time monitoring of radiation values, safety interlocks, and an automatic radiation source shutdown mechanism when the equipment is idle. Security is further bolstered by an integrated fingerprint recognition module, ensuring that only authorized personnel can operate the high-voltage hardware.
3. Comprehensive Technical Specifications
To provide a deeper technical look into the hardware capabilities, here are the core engineering specifications of the X6600B system:
- X-Ray Tube Type: Reflective sealed micro-focus X-ray source.
- Tube Voltage Capacity: Highly adaptable range reaching up to 130kV.
- Micro-Focus Spot Size: Ultra-fine focal spot from 5μm (at 4W) to 40μm.
- Digital Image Detector: High-definition Amorphous Silicon Flat Panel Detector.
- Maximum Sample Capacity: Supports wide-area samples up to 620mm × 620mm.
- System Dimensions & Weight: Net weight of 1800KG; physical footprint of L1380 × W1425 × H1951 mm.
4. Real-World Applications of the 130kV X-ray Machine
Thanks to its robust hardware and agile software suite, this versatile 130kV X-ray machine is widely deployed across specialized manufacturing fields:
- BGA Soldering Inspection: It easily detects voiding percentages, bridging, open joints, or micro-cracks in PCBA ball grid arrays.
- Sensor Crack Detection: It exposes structural micro-fractures inside fragile and highly sensitive sensor packages without damaging the outer housing.
- IGBT Module Verification: It is used for specialized IGBT void inspection and multi-angle analysis, ensuring power semiconductors handle high currents reliably.
Conclusion
The Seamark X6600B 130kV X-ray machine is far more than a basic measurement tool; it represents a comprehensive quality-standardization solution for your manufacturing floor. By combining powerful high-voltage penetration, intelligent AI algorithms, and automated CNC mechanics, this system helps businesses minimize operational costs, eliminate defective batches, and elevate brand reputation in highly competitive markets.
