iEDX-100G Electroplating Solution Analyzer
Discover the authentic iEDX-100G electroplating solution analyzer at Maxlab Equipment. An automatic plating bath ion concentration analysis solution with a high-accuracy 130eV SDD detector and a 12-position tray, optimizing cost and operation time for your electroplating factory.
Product Information
Boosting Revenue in the Electroplating Industry with the Next-Generation iEDX-100G Spectrometer
In the era of high-tech manufacturing, the electroplating and metal surface finishing industries are facing unprecedentedly strict standards. To supply components to global supply chains, the plating layer must not only look aesthetically pleasing but also achieve absolute precision in thickness and microstructure. The key to maintaining this high quality lies in the strict control of metal ion concentrations within the plating baths.
However, traditional analysis methods are revealing significant loopholes in terms of cost and time. That is why the iEDX-100G electroplating solution analyzer was born, setting a new benchmark for speed, precision, and economic efficiency for every workshop.
1. Pain Points of the Electroplating Industry in Traditional Plating Bath Control
Testing the ion concentration of electrolyte solutions is a mandatory daily, hourly task at manufacturing plants. Nevertheless, most businesses today still rely on two legacy methods:
- Chemical Titration: This method depends heavily on the skill of the lab engineer. A minor error in dropping the color indicator can lead to significant discrepancies. Furthermore, it takes anywhere from 30 minutes to several hours per sample, causing delays in production schedules.
- Atomic Absorption Spectroscopy (AAS): Although more precise, AAS systems are extremely bulky and require complex sample preparation (dissolving and diluting solutions with strong acids). The operating cost of AAS is also very high due to the consumption of high-purity argon or acetylene gas.
Both of the above methods generate a large volume of toxic liquid waste, putting heavy pressure on the factory’s wastewater treatment system to meet environmental standards.
2. iEDX-100G Electroplating Solution Analyzer – A Technological Leap from Maxlab Equipment
Understanding these challenges, Maxlab Equipment brings to the market a specialized energy-dispersive X-ray fluorescence (ED-XRF) spectrometer: iEDX-100G. This breakthrough device completely automates the analysis process of plating bath components, thoroughly solving the time and cost puzzle for enterprises.
Breakthrough Core Technology
The power of the iEDX-100G lies in its superior hardware configuration. The machine is equipped with a premium imported Silicon Drift Detector (SDD), delivering an ultra-high energy resolution of up to 130eV.
In electroplating solutions, metals such as Copper (Cu), Nickel (Ni), Zinc (Zn), or Iron (Fe) often have fluorescence energy levels that are very close to one another. The 130eV SDD detector allows the machine to perfectly isolate signal spectral peaks, completely eliminating background noise and spectral overlapping. As a result, the measurement results achieve accuracy comparable to complex chemical methods but with significantly optimized time.
3. Outstanding Advantages Dominating the Market
No Sample Pre-treatment Required – Sample and Measure Instantly
The most unique feature of the iEDX-100G is its direct analysis capability. QC engineers no longer need to perform complex dilution steps or add auxiliary chemicals. The operation workflow is encapsulated in 3 simple steps:
- Withdraw a small amount of solution from the plating bath.
- Pour the solution into the machine’s specialized sample cup.
- Place it into the measurement chamber and press start on the software.

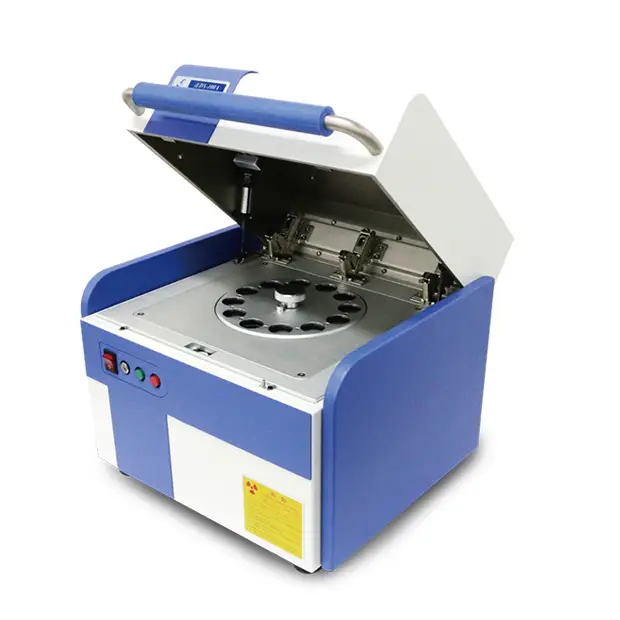

Automatic 12-Position Sample Changer
For large-scale factories with multiple concurrent plating lines, waiting to measure each sample individually is a major bottleneck. The iEDX-100G solves this problem with an integrated 12-position automatic sample changer system. You can load up to 12 sample cups from different plating baths at the same time (strike plating, bright plating, protective plating, etc.). The machine will automatically shift and analyze them sequentially, maximizing labor and waiting time savings.
Maximum Consumable Cost Savings
Unlike other analyzers on the market that require replacing sample cups or analytical film after every measurement, the iEDX-100G utilizes a specialized sample cup system that can be reused multiple times after cleaning. By eliminating the use of consumable chemicals completely, businesses can cut down up to 90% of annual lab operation costs.
A “Green” Solution for Modern Factories
The iEDX-100G operates entirely based on the physical principles of X-rays. The measurement process does not generate a single drop of chemical waste or require hazardous shielding gases. This equipment serves as a “strategic weapon” helping factories easily pass rigorous environmental audits for ISO 14001 certification by international partners.
4. Diverse Applications in Every Electroplating Process
The iEDX-100G model possesses an exceptionally wide element analysis range, spanning from Aluminum (Al) to Uranium (U), and effectively controls concentration ranges from 1ppm to 100%. Therefore, the machine perfectly accommodates various industrial plating baths today:
- Base Metal / Precious Metal Plating Baths: Accurately analyzes Gold (Au), Silver (Ag), and Palladium (Pd) content in the printed circuit board (PCB), semiconductor, and component connector manufacturing industries.
- Heavy Industrial Plating Baths: Measures Copper (Cu) ion concentration in acid/cyanide baths, Nickel (Ni) in electrolytic or electroless (chemical nickel) baths, and Chromium (Cr) in hard plating baths for wear resistance.
- Plating Bath Impurity Control: The machine not only measures primary elements but also detects early foreign metal impurities (such as Iron or Zinc leaking into a Nickel bath), enabling engineers to plan filtration or chemical replacement before mass product defects occur.
5. Why Choose to Buy the iEDX-100G at Maxlab Equipment?
A high-tech device like the iEDX-100G demands rigorous after-sales technical service to ensure the machine always operates stably and accurately. Maxlab Equipment is proud to be a leading reputable unit providing comprehensive solutions:
- Comprehensive Technology Transfer: Maxlab’s engineers will directly visit the customer’s workshop to install and calibrate the machine according to the actual plating bath solution, while providing thorough training for the factory’s QC team.
- Optimized Calibration Curve Building: Each type of plating bath has different background effects and solution matrices. Maxlab assists customers in setting up exclusive, optimized Calibration Curves, neutralizing matrix errors to achieve the highest reliability in measurement results.
- Rapid Warranty and Maintenance: A team of experienced technicians is always ready to support troubleshooting online or onsite in the shortest possible time, ensuring your production chain remains uninterrupted.
The iEDX-100G spectrometer is not simply a measuring device; it is a strategic investment that helps businesses enhance competitiveness, reduce defect rates, and optimize operating costs. Contact Maxlab Equipment today for in-depth consulting and to experience this state-of-the-art plating bath analysis solution.
