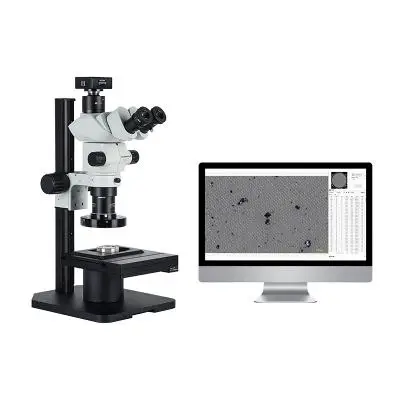

CA15A Technical Cleanliness Analysis System

CA15A Technical Cleanliness Analysis System full compliance with the requirements of VDA 19.1-2015, ISO 16232, ISO4406 and ISO 4407, QV11111 and customer-defined standards. Adopted optical polarization technology, manually rotate the polarization device, the metallic luster reflection properties of all pollutants on the entire filter can be determined by two scans. At the same time, according to the morphological definition of fiber in VDA19.1 (stretch length/maximum inscribed circle diameter>20, maximum inscribed circle diameter≦50 microns), the classification and classification of the following four types of particles can be quickly and automatically completed within a few minutes. Size measurement: reflective particles, reflective fibers, non-reflective particles, non-reflective fibers.
