UV-6020 UV-Vis Spectrophotometer

Discover the UV-6020 UV-Vis Spectrophotometer from EWAI. A true dual-beam system with a 190-1200nm range, available with genuine warranty at Maxlab Equipment.

Product Information

Description

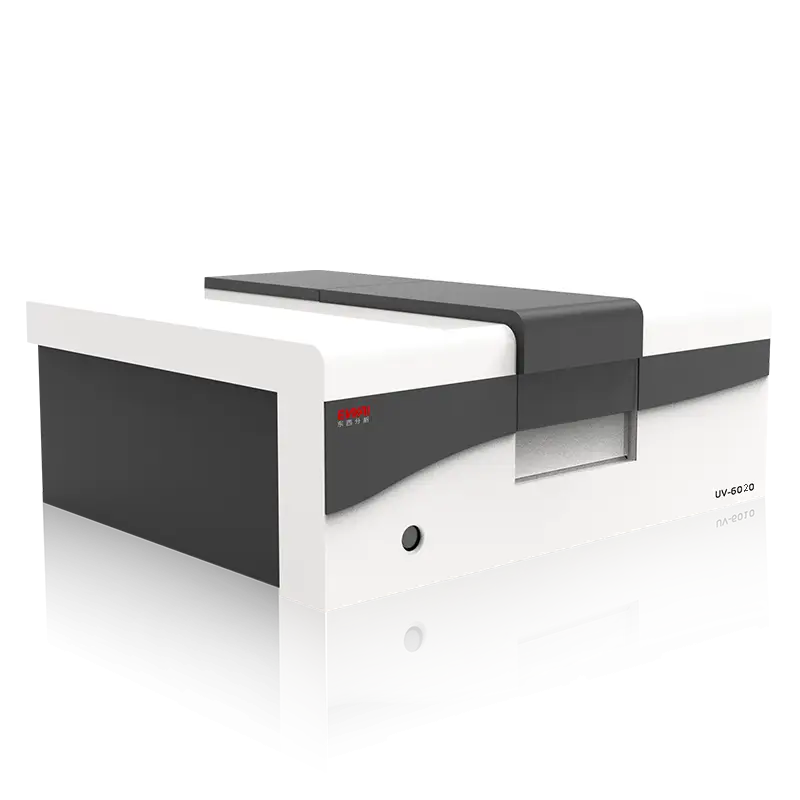

UV-6020 UV-Vis Spectrophotometer: The Ultimate Analytical Solution from EWAI

In modern laboratories, the qualitative and quantitative analysis of chemical compounds demands absolute precision. To meet the increasingly strict standards in research and quality control, Maxlab Equipment proudly introduces the UV-6020 UV-Vis Spectrophotometer from the renowned brand EWAI.

This cutting-edge device offers a perfect balance of maximum flexibility and powerful performance. It serves as an indispensable assistant for any laboratory looking to elevate its testing capabilities.

1. An Overview of the UV-6020 UV-Vis Spectrophotometer

The UV-6020 UV-Vis Spectrophotometer is an expanded, high-end model belonging to the next generation of UV-Vis instruments. This equipment is expertly designed to handle everything from routine daily laboratory testing to highly advanced and complex research applications.

What truly sets the UV-6020 apart in the market is its True Dual-Beam optical system. This technology delivers exceptional long-term baseline stability. By eliminating potential measurement errors caused by light source fluctuations, it ensures that every single result reaches the highest level of reliability.

2. Impressive Technical Specifications of the UV-6020

To evaluate an optical instrument, technical specifications are the most objective yardsticks. With the UV-6020 model, EWAI has integrated powerful hardware components and advanced configurations:

Expanded Wavelength Range (190 nm – 1200 nm): Standard UV-Vis instruments in the market usually limit their measuring range to 1100 nm. However, the UV-6020 extends its wavelength capability up to 1200 nm. This expansion into the near-infrared (NIR) region allows the device to analyze special types of samples that conventional machines simply cannot reach.
Continuously Adjustable Slit Width (0.5 nm – 3.0 nm): Instead of offering fixed slit width levels, the UV-6020 allows users to adjust the slit width continuously. This critical feature helps lab technicians flexibly optimize the balance between spectral resolution (when separating close peaks) and light signal intensity (when measuring low-concentration samples).
Ultra-High Scanning Speed (10,000 nm/min): Thanks to advanced mechanical engineering and high-speed signal processing, the machine can perform full-range scans up to 100 times faster than conventional instruments. More importantly, this rapid scanning process happens without any spectral distortion, perfectly preserving the shape and peaks of the sample spectrum.
High Absorbance Measurement (Up to 3 Abs): Utilizing a proprietary holographic grating, the device keeps stray light levels to an absolute minimum. This allows the UV-6020 to maintain excellent photometric accuracy even when measuring highly concentrated samples with absorbance levels up to 3 Abs, eliminating the need for repeated dilutions.

3. Core Technologies That Define the EWAI UV-6020

Beyond its robust hardware specifications, the UV-6020 UV-Vis Spectrophotometer incorporates a series of smart technological solutions to solve tough laboratory challenges:

Automatic and Continuous Dark Current Correction

A common cause of error during long hours of spectrophotometer operation is the dark current drift of the detector. EWAI has completely solved this issue. The UV-6020 automatically measures and corrects the detector dark current twice per chopper rotation. This guarantees a flat baseline, eliminating drift errors while enhancing measurement stability and linearity all day long.

Optimized Optical Design for Micro-liter Samples

In fields such as molecular biology or rare sample analysis, the volume of collected samples is often extremely limited. The improved optical design of the UV-6020 ensures a highly concentrated and stable light energy focus. This allows for accurate measurements even with micro-liter sample volumes.

Smart Software Complying with Strict IQ/OQ Standards

The instrument comes with an intuitive yet powerful software control system. It features an Automatic System Performance Validation module. This function makes it easy for laboratories to perform equipment qualification (IQ/OQ), fully meeting the strict requirements of major pharmacopoeias and international ISO standards.

4. Versatile Real-World Applications

Thanks to its wide wavelength range and dedicated software modules, the UV-6020 is widely used across various core industrial and research sectors:

Pharmaceutical Testing: Quantitative analysis of active pharmaceutical ingredients (APIs), checking the purity of raw materials, and validating finished products according to pharmacopoeia standards.
Food Safety & Feed Milling: Determining the content of nutrients, vitamins, and preservatives, or detecting toxins and antibiotic residues in food products.
Environmental Analysis: Monitoring the quality of wastewater and drinking water by measuring heavy metals, COD levels, nitrates, phosphates, and organic pollutants.
Molecular Biology Research: Determining the concentration and purity of DNA/RNA, analyzing enzyme kinetics, and conducting complex DNA melting analysis.
Chemicals, Coatings, and Paints: Analyzing chemical compositions, controlling product color quality, and tracking chemical reactions over time.

5. Flexible Upgrades with a Rich System of Accessories

A great spectrophotometer must be able to expand as research needs change. The UV-6020 perfectly satisfies this criterion by supporting a diverse ecosystem of accessories:

Autosampler: Optimizes workflow efficiency for high-throughput laboratories by minimizing manual sample handling.
Temperature Control Systems (Peltier/Water Bath): Keeps the cuvette temperature completely stable, which is vital for reaction kinetics or temperature-dependent biochemical analyses.
Reflectance Integrating Sphere: A premium accessory that expands the instrument’s capability to measure the reflectance spectra of solid, powder, or thin-film samples up to 1150 nm.

6. Why Choose the UV-6020 UV-Vis Spectrophotometer at Maxlab?

Among the many UV-Vis instruments on the market, the UV-6020 from EWAI stands out as a highly economical and effective choice. It delivers analytical performance comparable to much more expensive UV-Vis-NIR instruments, offering a highly optimized performance-to-price (P/F) ratio for your budget.

When choosing Maxlab Equipment as your supplying partner, you will receive outstanding values:

100% Genuine Products: We commit to providing genuine imported equipment from EWAI, complete with full Certificates of Origin (CO) and Quality (CQ).
Professional Technical Service: Maxlab’s team of well-trained engineers is always ready to support installation, technology transfer, user training, and professional IQ/OQ procedures.
Long-Term Warranty and Maintenance: We offer authentic warranty policies along with periodic maintenance services, ensuring your equipment always operates at its peak precision.
Optimal Solution Consultation: Maxlab listens to the practical needs of each laboratory to recommend the most suitable machine configuration and accessories, preventing any budget waste.

Let the UV-6020 UV-Vis Spectrophotometer elevate your laboratory’s analytical power today! If you need expert consultation or a competitive quote, please contact Maxlab Equipment directly for immediate assistance.
