NanoVoxel-2000 X-ray Computed Tomography System: A Breakthrough Micro CT Solution by Sanying Shaping the Future of Non-Destructive Testing
In today’s era of high-tech industrial manufacturing and advanced research, understanding the internal microstructure of materials without altering or damaging the original sample is a critical challenge. To address this need, three-dimensional high-resolution X-ray imaging has emerged as the definitive solution. Standing at the pinnacle of this advanced analytical segment is the NanoVoxel-2000 X-ray Computed Tomography System, a premier instrument developed by the globally recognized manufacturer Sanying Precision Instruments. Combining state-of-the-art image processing, sub-micron spatial resolution, and a maintenance-free design, this system has become an indispensable asset for leading research centers and quality control laboratories. This article provides a comprehensive analysis of this cutting-edge technology and highlights why organizations should invest in this solution through trusted equipment suppliers.
1. Overview of the NanoVoxel-2000 X-ray Computed Tomography System

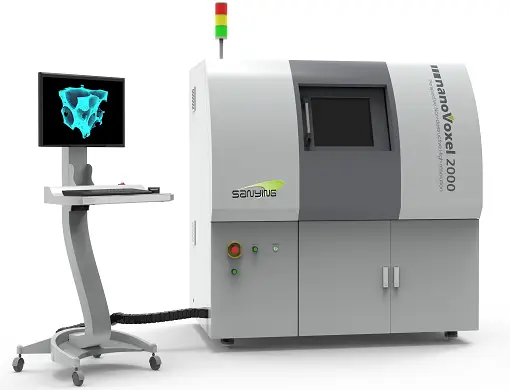

The NanoVoxel-2000 is a high-performance 3D X-ray microscope and high-resolution micro-computed tomography (Micro CT) system. It is engineered and manufactured by Sanying, a pioneering enterprise that holds proprietary core technologies in the field of non-destructive testing (NDT).
Unlike conventional X-ray inspection systems that only provide flat 2D projection images, this advanced Micro CT system utilizes a smart X-ray beam to penetrate objects from hundreds of different angles as the sample rotates. Subsequently, the system’s specialized big-data reconstruction software automatically generates a complete 3D digital twin of the object. Operators can effortlessly perform virtual cross-sections at any position and isolate specific material layers. This allows for the realistic observation of hidden defects, pores, or cracks buried deep inside the sample matrix—an analysis where traditional optical microscopes or standard radiography systems fall short.
2. Outstanding Features and Core Technologies of Sanying NanoVoxel-2000
To maintain its leading position in the high-end imaging market, the NanoVoxel-2000 is equipped with impressive technical specifications and innovative hardware solutions:
Maintenance-Free, Sealed-Tube X-ray Source
A primary advantage of the NanoVoxel-2000 is its reflection-type, tube-sealed X-ray source design. Traditional open-tube systems require frequent, costly replacements of consumable filaments and demand complex technical maintenance protocols. In contrast, Sanying’s sealed-tube technology offers absolute operational convenience. The system runs with exceptional stability over extended periods and incurs zero consumable costs. This key factor significantly reduces the total cost of ownership (TCO) for modern laboratories.
Ultra-High Resolution Down to the Nanometer Scale
The system delivers remarkable analytical performance for microstructures thanks to its flexible dual-detector configuration:
- Standard Flat Panel Detector: Provides a feature detectability of 1 µm and a spatial resolution of 3 µm. This configuration is highly optimized for rapid scanning of larger samples or high-throughput quality inspections of industrial components.
- Optional Objective Coupling Detector: This premium setup incorporates optical magnification lenses (4X, 10X, 20X) coupled to a high-resolution scintillator. It allows the system to achieve a detail detectability of 50 nm and a spatial resolution of 500 nm. Crucially, this technology enables sub-micron imaging even at long working distances from the X-ray source, ensuring ample clearance for specialized in-situ testing rigs.
Spacious and Expandable Sample Chamber
Despite being a high-precision micro-tomography system, the equipment boasts a remarkably accommodating sample chamber. It can house large specimens with a maximum diameter of 400 mm and a height of 300 mm. The heavy-duty rotary stage supports a maximum sample weight of 15 kg. This spacious design provides the necessary real estate to integrate a wide array of experimental accessories for advanced research.
In-Situ 4D CT Imaging Technology
Moving beyond static 3D imaging, the system fully supports dynamic time-resolved imaging, known as 4D CT. Users can install external in-situ testing modules—such as mechanical loading devices (tensile, compression, bending) or thermal control cells—directly onto the stage inside the chamber. The Micro CT system can scan the sample while it undergoes physical stress or temperature variations, capturing material deformation, crack propagation, or phase transitions in real time.
Diverse Advanced Scanning Modes
The system integrates versatile, intelligent scanning algorithms to accommodate diverse sample geometries:
- Spiral Scanning: Enables continuous scanning of long, cylindrical specimens without being restricted by the vertical geometric boundaries of the detector.
- Offset Scanning: Artificially widens the effective field of view (FOV) to scan larger objects that exceed the width of a standard single-view X-ray beam.
- Limited Angle Scanning: Caters to unique experimental setups where the sample cannot rotate a full 360 degrees due to structural obstructions.
3. Multi-Industry Practical Applications
Thanks to its excellent operational versatility and absolute precision, the NanoVoxel-2000 X-ray Computed Tomography System is widely utilized across key industrial sectors and academic research disciplines:
- Electronics and Semiconductor Industry: Enables rapid detection of solder joint delamination, voids, and broken micro-vias inside multi-layered 3D integrated circuits (3D ICs). It also inspects defects in Ball Grid Array (BGA) packaging without requiring destructive cross-sectioning.
- Lithium Battery and Energy Sector: Analyzes the spatial distribution of electrode materials and tracks electrode layer contraction, alignment, or degradation after multiple charge-discharge cycles, enhancing battery safety and lifespan.
- Additive Manufacturing (3D Printing): Evaluates internal porosity in 3D-printed metal components, maps the size and distribution of entrapped gas bubbles, and directly compares actual geometry against the original CAD design file to detect deviations.
- Materials Science & Composites: Researches fiber orientation in reinforced polymers, evaluates delamination between composite layers, and analyzes the pore network of insulation foams or biomedical scaffolding materials.
- Petroleum Geology and Geotechnical Engineering: Characterizes the complex pore-throat networks within mineral core samples and models fluid flow behavior to optimize enhanced oil recovery (EOR) research.
- Biomedical, Dental, and Archaeology: Captures micro-structural details of small animal bones, tooth root morphology, and delicate archaeological artifacts that require strict preservation.
4. Maxlab – Your Trusted Provider for NanoVoxel-2000 Solutions
Investing in a high-tech system like a Micro CT scanner requires a partner with deep technical expertise. Maxlab Equipment is proud to be a comprehensive distributor and solution provider of advanced measurement instruments, digital imaging systems, and non-destructive testing equipment.
By choosing Sanying technology solutions supplied by Maxlab, clients benefit from core institutional advantages:
- 100% Genuine Equipment Guarantee: Complete documentation regarding country of origin (CO) and quality certification (CQ) directly from Sanying Precision Instruments.
- Tailored Engineering Consulting: Maxlab’s technical specialists assess specific application requirements, sample dimensions, and material properties to recommend the optimal configuration for detectors, X-ray power, and analytical software modules.
- Professional Technical Support: Seamless delivery, installation, technology transfer, and rigorous operator training. Maxlab commits to long-term partnerships, providing prompt maintenance and calibration services to ensure the system operates at peak performance throughout its lifecycle.
This nano-resolution computed tomography system serves as the definitive tool for organizations looking to elevate their R&D capabilities, perfect their quality control (QC) workflows, and enhance their competitive edge in international markets.
5. Summary Table of Key Technical Specifications
| Technical Feature | NanoVoxel-2000 Specifications |
|---|
| X-ray Tube Type | Sealed, Reflection-type tube; Max Voltage: 150 KV |
| Feature Detectability | 1 μm (Flat Panel Detector) / 50 nm (Objective Lens Detector) |
| Spatial Resolution | 3 μm (Flat Panel Detector) / 500 nm (Objective Lens Detector) |
| Maximum Sample Size | 400 mm × 300 mm (Diameter × Height) |
| Maximum Sample Weight | 15 kg |
| Total Equipment Weight | 2400 kg |
| Technological Expandability | Supports In-situ 4D imaging (tensile, compression, thermal modules) |
Pricing and Investment Policy
Because the NanoVoxel-2000 is a highly sophisticated scientific instrument featuring multiple high-end options—such as custom objective coupling detectors and specialized 4D in-situ mechanical stages—the final pricing is tailored to the specific research and engineering requirements of each organization. Please contact the technical sales department at Maxlab Equipment to receive a detailed quotation, explore available configurations, and discuss optimized financial investment plans for your laboratory.
