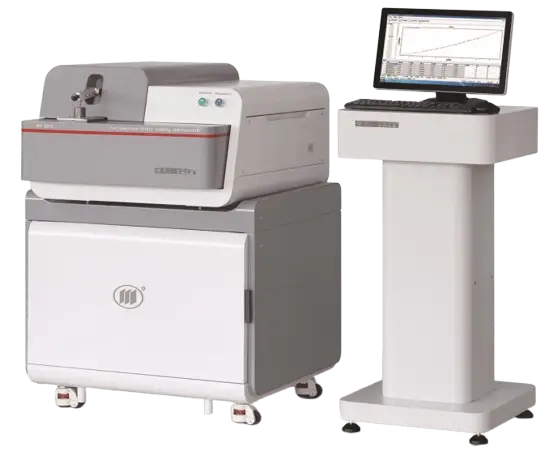

Veiyee WY-9000 OES Spectrometer
The Veiyee WY-9000 OES Spectrometer is a direct-reading spectrometer capable of analyzing metals and their alloys. It boasts excellent overall stability and is easy to debug; software adjustments allow users to easily modify and add channels, even adding an analytical matrix.
Utilizing modern optoelectronic and automation technologies, such as automatic spectral line correction, the instrument’s automation level is significantly improved, making it simple and flexible to operate. Vacuum extraction technology in the optical chamber minimizes O2 absorption of wavelengths <200nm, greatly enhancing the instrument’s stability and detection limits for elements like C, P, and S. A high-vacuum shut-off valve prevents vacuum oil contamination of optical components within the optical chamber. A constant temperature system (34℃) minimizes environmental temperature requirements and ensures long-term stability. The highly integrated, maintenance-free digital light source is a composite light source capable of generating sparks, arcs, and arc-like phenomena, allowing analysis of constant, high-content, trace, and even ultra-high-content elements. The software features a Windows interface with a fully Chinese display, comprehensive functions, and user-friendly operation.
Each instrument is custom-manufactured, meticulously assembled, and fully calibrated according to the user’s requirements. Therefore, the WY-9000 direct-reading spectrometer is a quality assurance for metal smelting process control and is the user’s first choice and ideal analytical instrument.
Product Information
Veiyee WY-9000 OES Spectrometer: The Ultimate Metal Analysis Solution for Modern Industry
In the fast-paced world of metallurgy, foundry, and precision manufacturing, controlling the chemical composition of materials is not just a requirement—it is the foundation of product integrity. The WY-9000 Optical Emission Spectrometer (OES) from Veiyee has emerged as a premier analytical tool, delivering laboratory-grade precision combined with industrial-strength durability.
1. Introduction to the Veiyee WY-9000 OES
The Veiyee WY-9000 is a high-performance, full-spectrum optical emission spectrometer designed for the rapid quantitative analysis of metal samples. Utilizing advanced spark discharge technology, this model allows users to determine the elemental concentration of various alloys—ranging from trace elements (ppm levels) to high-percentage alloying elements—in a matter of seconds.
Engineered by Veiyee, a leader in analytical instrumentation, the WY-9000 integrates sophisticated optical systems with intuitive software. This synergy enables enterprises to streamline their quality control (QC) processes, from raw material inspection to final product certification.
2. Key Technical Innovations of the WY-9000
What sets the WY-9000 apart from traditional spectrometers is its integration of cutting-edge hardware and smart processing algorithms:
- Next-Generation CMOS/CCD Sensor Array: Unlike older systems that rely on bulky Photomultiplier Tubes (PMTs), the WY-9000 utilizes high-resolution digital sensors. This allows for “full-spectrum” capture, meaning the device can detect all relevant spectral lines of every element simultaneously without needing hardware re-adjustments.
- Extended Wavelength Coverage (130nm – 800nm): This ultra-wide range is crucial for detecting non-metallic elements that are vital to steel quality, such as Carbon (C), Phosphorus (P), Sulfur (S), and Nitrogen (N).
- Vacuum Optical Chamber: The optical system is housed in a temperature-controlled vacuum chamber. By removing air, the system prevents the absorption of light in the deep UV spectrum, ensuring maximum sensitivity and stability for critical elements.
- Digital Spark Source: The programmable digital excitation source allows the operator to fine-tune discharge parameters based on the specific matrix (Fe, Al, Cu, Ni, Ti, etc.). This results in superior repeatability and long-term stability even in harsh industrial environments.
3. Core Benefits for Your Business
Investing in the Veiyee WY-9000 OES provides immediate tangible value to production lines and testing laboratories:
Lightning-Fast Analysis
Traditional “wet chemistry” methods can take hours or even days to return results. The WY-9000 delivers a comprehensive elemental report in just 20 to 30 seconds. This speed allows foundries to test the melt directly at the furnace, enabling real-time adjustments before the metal is poured, significantly reducing scrap rates.
Unmatched Accuracy and Reliability
Data generated by the WY-9000 complies with international laboratory standards (such as ISO). This gives manufacturers the confidence to certify material grades—whether it be 304/316 stainless steel or complex aluminum alloys—ensuring they meet strict client specifications.
Low Cost of Ownership
Veiyee has optimized the WY-9000 for efficiency. The system features a low-argon-consumption design and durable components that require minimal maintenance. Furthermore, the user-friendly software interface reduces the need for highly specialized operators, lowering long-term labor and training costs.
4. Industrial Applications
The versatility of the WY-9000 makes it an essential asset across multiple sectors:
- Foundries & Smelters: For rapid melt control and alloy verification.
- Mechanical Engineering: To verify the quality of incoming raw materials (bolts, bars, sheets).
- Scrap Metal Recycling: For high-speed sorting and grading of alloy scrap based on precise chemical content.
- Aerospace & Defense: For testing specialized superalloys where impurity limits are extremely tight.
5. Why Choose Veiyee for Your Spectrometric Needs?
Purchasing a spectrometer is a long-term partnership. When opting for the WY-9000, users benefit from:
- Global Technical Support: Access to expert engineers for calibration, software updates, and hardware troubleshooting.
- Comprehensive Training: Comprehensive modules on sample preparation (grinding/polishing) and software operation to ensure data integrity from day one.
- Customized Calibrations: The device can be factory-calibrated for specific alloy bases (Steel, Cast Iron, Aluminum, Copper, Zinc, etc.) to match your specific production needs.
Conclusion
The Veiyee WY-9000 OES Spectrometer represents the pinnacle of modern metal analysis. By combining speed, precision, and ease of use, it empowers businesses to maintain the highest quality standards while optimizing production costs. If you are looking to elevate your metallurgical testing capabilities, the WY-9000 is the clear choice for the future of your facility.
