Veiyee WY-E Metallurgical Microscope: The Ultimate Material Analysis Solution by Maxlab Vietnam
06
Apr
Apr
In the rapidly evolving landscape of industrial manufacturing and materials science, the ability to analyze microscopic structures with absolute precision is no longer a luxury—it is a necessity. For laboratories, quality control (QC) departments, and research institutions across Vietnam, finding a balance between high-end optical performance and cost-efficiency is a top priority.
The Veiyee WY-E Metallurgical Microscope, distributed officially by Maxlab Vietnam, stands as a premier solution designed to meet these rigorous demands. This professional-grade instrument offers the clarity, stability, and advanced imaging capabilities required for deep-tier material inspection.
1. What is the Veiyee WY-E Metallurgical Microscope?
The Veiyee WY-E is an inverted metallurgical microscope (also known as a metallographic microscope) specifically engineered for the observation of opaque specimens. Unlike biological microscopes that use transmitted light to pass through thin samples, the WY-E utilizes a sophisticated reflected light system. This allows users to inspect the surface structures of metals, alloys, ceramics, semiconductors, and composite materials that do not allow light to pass through them.
Manufactured by Veiyee (Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.), a leading name in metallographic sample preparation and analysis equipment in China, the WY-E model represents the pinnacle of their inverted microscope series. It is widely recognized for its robust mechanical build and superior “Infinite Distant Correction” optical system.
2. Technical Excellence: Key Features of the WY-E Model
The Veiyee WY-E is packed with technical innovations that streamline the workflow of metallurgists and lab technicians. Below are the core features that define this instrument:
Advanced Infinite Optical System
At the heart of the WY-E is an Infinite Distant Correction Optical System. This technology ensures that the light rays passing through the objective are parallel, which eliminates ghosting and optical aberrations. The result is a high-contrast, flat field of view that remains sharp from the center to the very edges of the image.
High-Precision Objectives and Eyepieces

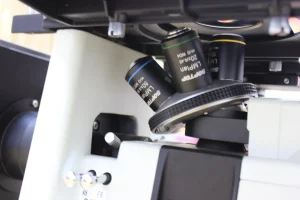

The standard configuration includes a suite of Long Working Distance (LWD) Plan Achromatic Objectives:
- LMPL5X / 0.15 (Working Distance: 10.8mm)
- LMPL10X / 0.3 (Working Distance: 10mm)
- LMPL20X / 0.45 (Working Distance: 4mm)
- LMPL50X / 0.55 (Working Distance: 7.8mm)
- LMPL100X / 0.80 (Working Distance: 2.1mm)
Combined with the PL10X/22mm ultra-wide field eyepieces, the system provides a total magnification range from 50X to 1000X, allowing for everything from broad survey scans to high-resolution structural analysis.

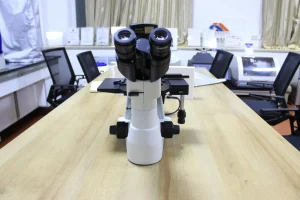

Ergonomic Inverted Design

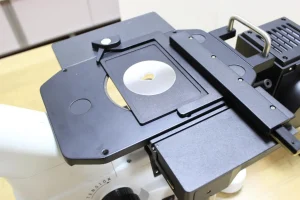

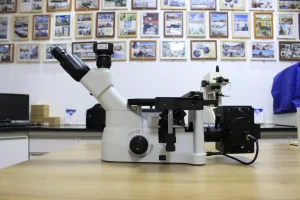

The inverted architecture of the WY-E is particularly advantageous for industrial settings. Because the objectives are located beneath the stage, the size and weight of the specimen are less restricted. Users can simply place a large, flat-polished metal sample on the stage without worrying about height limitations or hitting the objective lens. The viewing head is tilted at a comfortable 45-degree angle, reducing neck strain during long hours of observation.
Professional Kohler Illumination

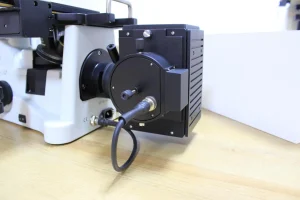

The WY-E features a 12V/50W halogen reflected lighting system based on the Kohler illumination principle. This system provides uniform brightness across the entire field of view. It includes a variable aperture diaphragm and a center-adjustable field diaphragm, giving the user complete control over contrast and depth of field.
3. Industrial Applications in the Vietnam Market
Vietnam’s growing status as a global manufacturing hub has increased the demand for reliable material testing. The Veiyee WY-E, supplied by Maxlab, serves several critical sectors:

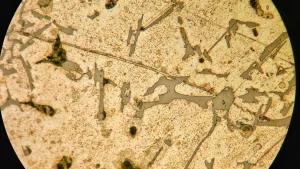

- Foundry and Steel Production: Essential for identifying grain size (ASTM E112), phase distribution, and non-metallic inclusions in cast iron and steel.
- Automotive and Aerospace: Used for failure analysis and checking the integrity of heat-treated components like gears and engine blocks.
- Electronics Manufacturing: Perfect for inspecting PCB cross-sections, solder joint quality, and semiconductor wafer surfaces.
- Heat Treatment Services: Helps verify the depth of decarburization and the success of surface hardening processes.
- Academic Research: Provides a cost-effective yet high-performance tool for universities and technical institutes focusing on materials science.
4. Digital Integration and Analysis Software
In modern laboratories, visual observation is only half the task. The Veiyee WY-E is a “Computer Metallographic Microscope,” meaning it is fully equipped for digital documentation.

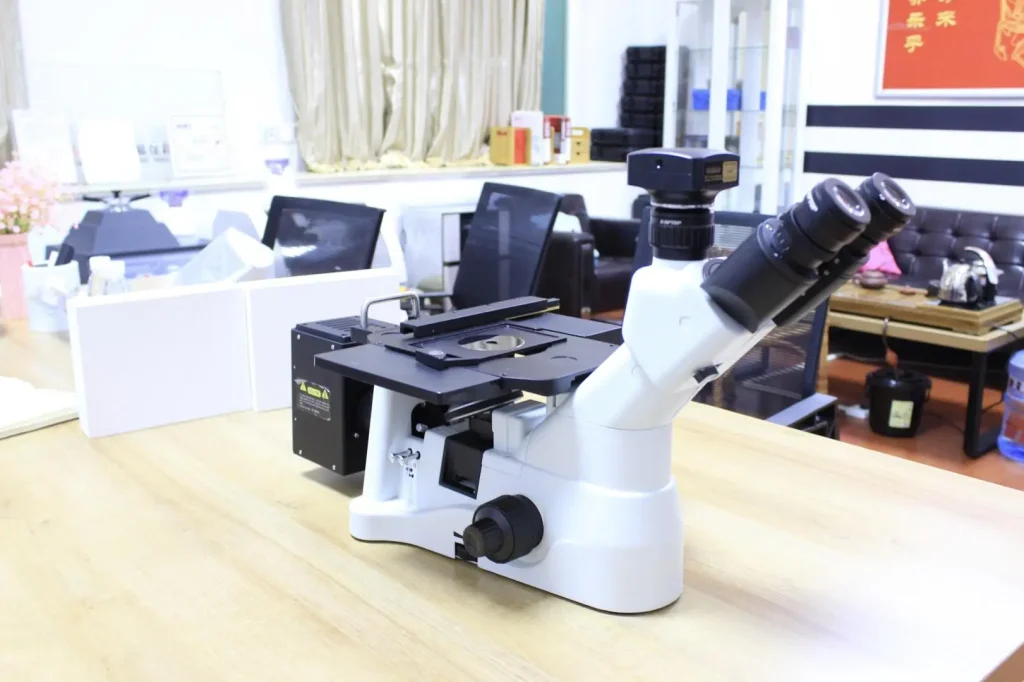

Maxlab provides the
WY-E
with a Trinocular head (three-eye design) that allows for the simultaneous mounting of a high-resolution camera. When paired with the FMIA2020 Metallographic Image Analysis Software and a 5MP or 9MP Sony-chip camera, the system can:
- Capture and Save: Store high-definition images for reporting.
- Measure: Perform precise measurements of lengths, areas, and angles.
- Analyze: Automatically calculate grain size, nodularity in cast iron, and porosity levels according to international standards.
