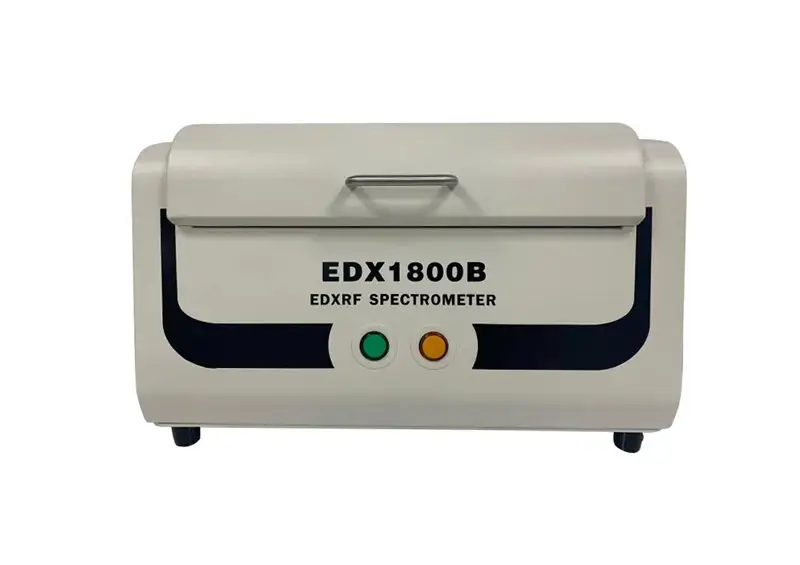

EDX1800B RoHS & Halogen Analyzer
The EDX1800B X-ray Fluorescence (XRF) Spectrometer stands as the premier technological solution, helping manufacturers in electronics, plastics, and electroplating industries control hazardous substances with precision, speed, and non-destructive testing. In the era of “Green Manufacturing,” compliance with international directives such as RoHS 2.0 (2011/65/EU), WEEE, and Halogen-Free standards is no longer optional—it is a vital requirement for entering global supply chains.
Product Information
The EDX1800B X-ray Fluorescence (XRF) Spectrometer stands as the premier technological solution, helping manufacturers in electronics, plastics, and electroplating industries control hazardous substances with precision, speed, and non-destructive testing. In the era of “Green Manufacturing,” compliance with international directives such as RoHS 2.0 (2011/65/EU), WEEE, and Halogen-Free standards is no longer optional—it is a vital requirement for entering global supply chains.
1. Overview of the EDX1800B Model
The EDX1800B is a next-generation Energy Dispersive X-ray Fluorescence (EDXRF) analyzer specifically engineered for hazardous element analysis. With a proven track record spanning over a decade, the EDX1800B has become the “gold standard” in factories supplying global giants like Samsung, LG, and Apple, thanks to its exceptional stability and accuracy.
Utilizing advanced XRF technology, the device can simultaneously analyze multiple elements—from Sulfur (S) to Uranium (U)—in a single scan lasting only seconds.
2. Technical Specifications of EDX1800B
To achieve detection limits at the ppm (parts per million) level, the EDX1800B is equipped with industrial-grade hardware:
- Elemental Analysis Range: Sulfur (S) through Uranium (U).
- Limit of Detection (LOD): Reaches 1ppm for key hazardous elements (Pb, Cd, Hg, Br, Cr).
- Detector: High-performance electrically refrigerated Si-PIN detector (USA imported), providing superior energy resolution to separate overlapping spectral peaks.
- X-ray Tube: 50W maximum power, 5kV – 50kV voltage, 1uA – 1000uA current.
- Signal Filters: Integrated 5-position automatic filter switcher to optimize the signal-to-noise ratio for specific element groups.
- Sample Chamber: Large-capacity chamber suitable for various samples, from micro-chips to large PCBs and plastic housings.
3. Groundbreaking Features of EDX1800B
3.1. Halogen-Free Analysis Capability
Unlike older models, the EDX1800B is optimized to detect Halogen elements (specifically Chlorine – Cl and Bromine – Br). This is critical for manufacturers producing flame-retardant materials or eco-friendly components required by international environmental protocols.
3.2. Smart Signal-to-Noise Enhancer (SNE)
The system integrates SNE technology, which improves the signal-to-noise ratio by up to 25 times. This allows the machine to detect ultra-low concentrations of toxic substances that conventional XRF machines might miss.
3.3. Non-Destructive Testing (NDT)
The greatest advantage of the EDX1800B is that it leaves the sample completely intact. Simply place the component in the chamber, press start, and receive results. This saves material costs and allows for 100% inspection of finished products.
3.4. High-Resolution In-built Camera
With its integrated high-definition camera, operators can visually locate the exact measurement point on a computer screen. This ensures the X-ray beam hits the precise target (e.g., a specific solder joint on a PCB) rather than the surrounding plastic substrate.
4. Practical Applications in Industry
- RoHS Compliance: Analyzing the “Big 6” (Lead, Cadmium, Mercury, Hexavalent Chromium, PBB, PBDE) in plastics, metals, and rubber.
- Halogen Testing: Measuring Cl and Br concentrations in plastic pellets and liquid samples.
- Plating Thickness Measurement: The EDX1800B can also measure the thickness of metallic coatings (Gold, Silver, Copper, Nickel, etc.) on various substrates with high precision.
- Alloy Identification: Rapidly determining alloy grades (e.g., Stainless Steel 304, 316) and precious metal content in jewelry or scrap metal industries.
5. Why Choose EDX1800B Over Other Models?
- Long-term Stability: Rugged chassis design with X-ray tubes and detectors rated for tens of thousands of hours.
- Intuitive Software: User-friendly interface with one-click reporting in Excel and PDF formats, including full spectral data for customer audits.
- Maximum Safety: Lead-shielded housing and a dual-safety interlock system prevent X-ray leakage, ensuring 100% operator safety.
- Cost-Efficiency: The EDX1800B offers the best performance-to-price ratio in its class, ensuring a fast Return on Investment (ROI) for SMEs.
6. Operation and Maintenance Tips
To maintain peak performance, we recommend:
- Warm-up: Allow the machine to stabilize for 15-30 minutes before testing.
- Calibration: Perform daily energy calibration using the provided Silver (Ag) standard sample.
- Sample Prep: Ensure the sample is clean, flat, and covers the X-ray window for the most accurate results.
7. Conclusion
The EDX1800B RoHS & Halogen Analyzer is more than just a measurement tool; it is a “passport” for your products to enter the world’s most demanding markets. With high precision, durability, and a competitive price point, it is the smartest investment for any Quality Control (QC/QA) department.
