In the rapidly evolving electronics industry, printed circuit boards (PCBs) are continuously shrinking while packing more complex, multi-layer micro-circuitry. Conducting precise failure analysis, quality control, or cross-sectional inspection on these delicate components demands flawless sample preparation. Any excessive mechanical force or thermal stress applied during the cutting stage can severely deform the structural layers. This leads to inaccurate microscopic analysis and false laboratory conclusions.

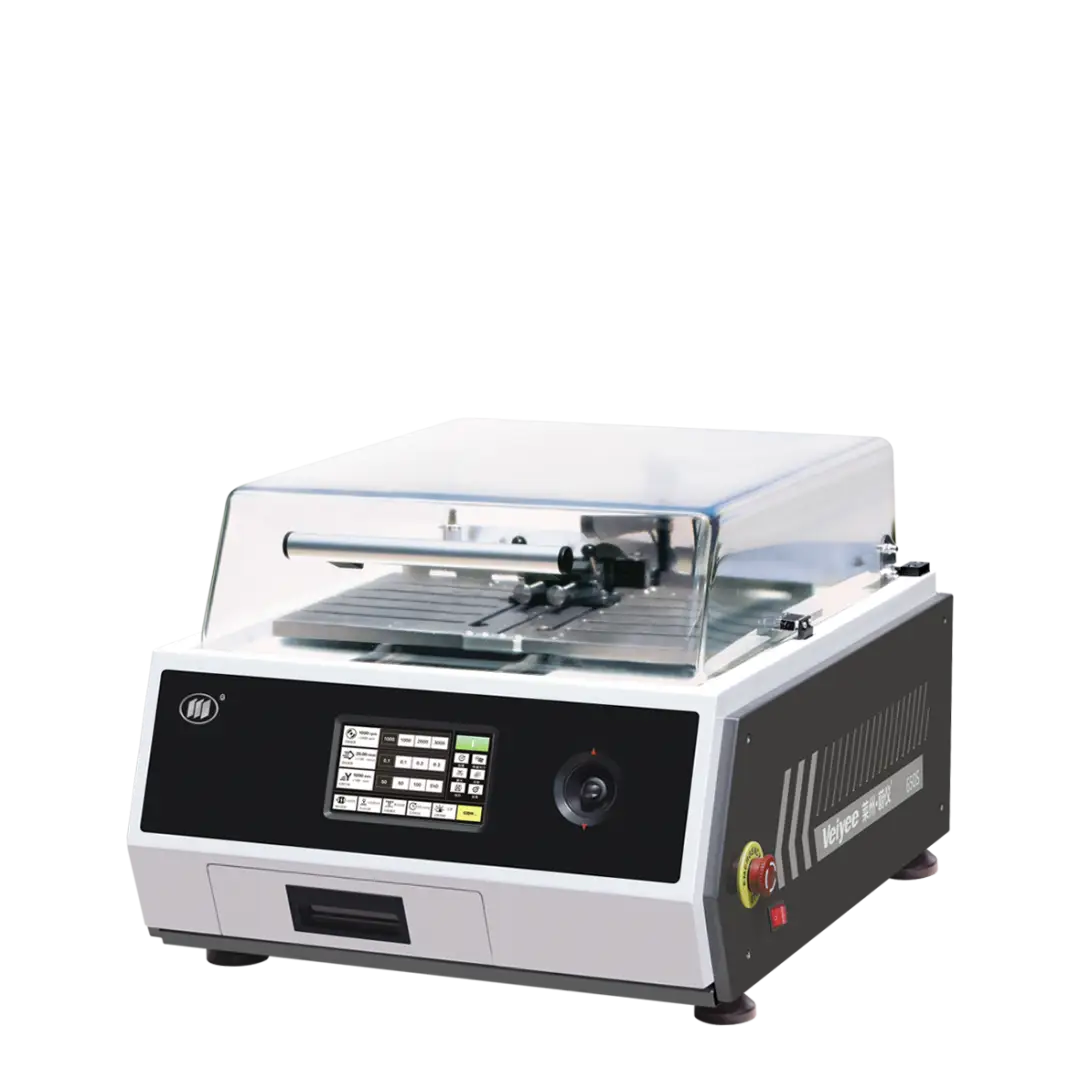

To address these critical challenges, the iqiege® 650S precision cutting machine engineered by Veiyee (Laizhou Weiyi) stands out as a premier industrial solution. It delivers pristine, uncompromised cross-sections for modern electronic manufacturing and advanced material research laboratories.

Modern PCBs are intricate composite structures consisting of woven fiberglass, polymer resins, copper foils, and fragile solder joints. When using a standard abrasive cutter for sectioning, labs frequently encounter severe structural artifacts:

The iqiege® 650S is specifically designed to completely eliminate these structural defects, setting a brand-new standard for microelectronic sample preparation.

The machine features a robust, programmable PLC control system paired with an intuitive, large touchscreen interface. Technicians can digitally pre-program exact parameters, including feed rates, cutting speeds, and travel distances. The fully automated cutting operation ensures 100% repeatability between separate runs. This eliminates any human error or inconsistency typical of manual hand-feed cutters.

Powered by a high-torque stepper/servo motor drive system, the iqiege® 650S offers an exceptionally wide range of rotational speeds alongside smooth feed movements. When paired with ultra-thin diamond wafering blades, the machine executes incredibly gentle sectioning. The result is a mirror-like finish that perfectly preserves the original alignment of micro-vias, solder balls, and buried board layers.

Friction-induced heat is a primary threat when sectioning polymer matrices and fiberglass. The iqiege® 650S solves this with a heavy-duty built-in cooling chamber. Multi-directional nozzles continuously spray cooling fluid directly onto the blade-to-sample contact zone. This instant thermal suppression prevents any melting or warping while rapidly flushing out metallic and resin debris.

Despite its compact precision-oriented footprint, the machine provides a highly spacious cutting enclosure. It features a bright internal LED lighting system for real-time process monitoring. For maximum laboratory safety, an electronic safety interlock switch is integrated directly into the hood. The motor automatically shuts off immediately if the chamber door is opened while the blade is spinning.

While it serves as an exceptional PCB precision cutting machine, the versatile iqiege® 650S effortlessly processes a diverse array of advanced materials found in R&D and QA testing departments:

Obtaining a flat, clean, and scratch-free surface during the initial cutting stage saves an immense amount of time later. By minimizing cutting damage, the iqiege® 650S reduces subsequent grinding and polishing times by up to 70%. It is the ideal long-term investment for electronics assembly plants, independent testing labs, and academic institutions aiming to accelerate failure analysis turnaround times.

Contact our sales team today to request a quotation, receive expert advice on blade selection, or schedule an application demonstration for your specific circuit board samples!
