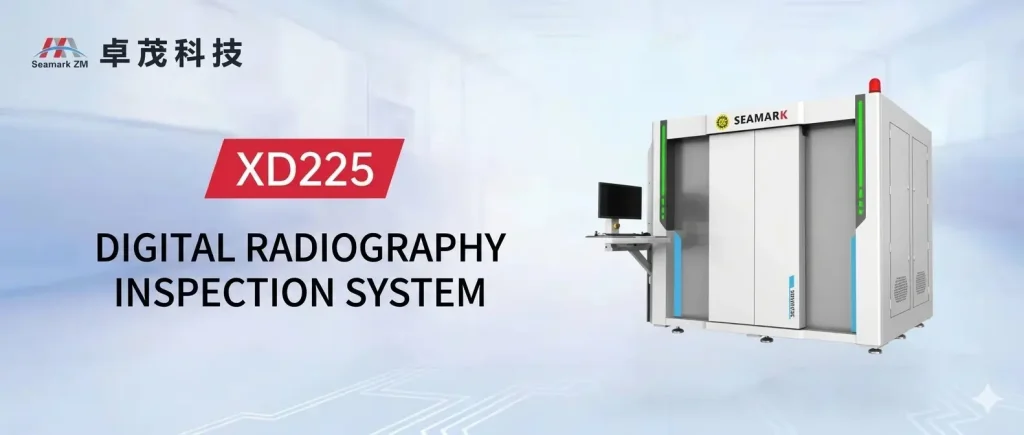

Máy X-ray 3D-CT Độ Phân Giải Cao
13
Sep
Seamark XD225: High-Precision Industrial X-Ray Inspection System for Quality Assurance
In high-stakes industries like automotive, aerospace, and hardware manufacturing, internal material defects are costly risks. Tiny flaws such as porosity, cracks, and weld defects can ruin product reliability. Traditional inspection methods often fail to balance both speed and accuracy.
The Seamark XD225 Digital Radiography NDT Solution solves this problem. Equipped with a high-power X-ray source, a large field of view, and a 5-axis motion system, it delivers fast, stable, and non-destructive testing (NDT) for critical industrial components.
🔹 High-Power Industrial X-Ray Machine for Micro-Defect Detection
The Seamark XD225 features a powerful 225kV X-ray tube (with 500W / 800W / 1800W options) and precise focal spot sizes (0.4mm, 0.5mm, or 1.0mm). This allows the beam to penetrate dense materials easily while capturing sharp images.
Combined with a high-resolution amorphous silicon flat-panel detector (3072×3072 pixels), it makes even the smallest micro-defects clearly visible. It is the perfect setup for aluminum die casting defect detection, welded parts inspection, turbine blades, and 3D-printed components.
🔹 5-Axis Precision Mechanics for Large and Complex Parts
Testing heavy or irregular parts is no longer a challenge. The system features a high-precision 5-axis (upgradeable to 6-axis) motorized mechanism and large double doors for effortless loading.
  • Max Inspection Range: φ600mm × 800mm.
  • Weight Capacity: Supports heavy parts up to 100kg (ideal for heavy automotive components).
  • Flexibility: The stage rotates a full 360°, with a 900mm vertical travel and ±15° tilt. This ensures you can inspect complex workpieces from any angle without blind spots.

🔹 Smart CNC Automation Software for Fast Batch Testing
Boost your factory throughput with professional inspection software. The system supports advanced image processing, gray level analysis, and exact geometric measurements (distance, angle, diameter).
With CNC auto-inspection, you can program the machine for automatic batch testing. This reduces human error, speeds up production line testing, and lowers labor costs.
🔹 Safe, Stable, and Built for Productive Factory Floors
Safety is a priority in modern manufacturing. The Seamark XD225 radiation safety strictly complies with international and national standards (≤1μSv/h), protected by triple safety interlocks. Operating at a quiet noise level (≤75dB) and powered by AC220V/50Hz (6.7kW), this machine is built for continuous, reliable 24/7 operation on the production floor.
Upgrade Your Quality Control with Seamark XD225
The Seamark XD225 offers the perfect balance between high-precision accuracy and industrial operational efficiency. Secure your product quality, eliminate customer complaints, and scale your manufacturing with confidence.
📧 Ready to eliminate manufacturing defects? [Contact Seamark Today] to get a free expert consultation, product catalog, or a live machine demonstration for your factory!
