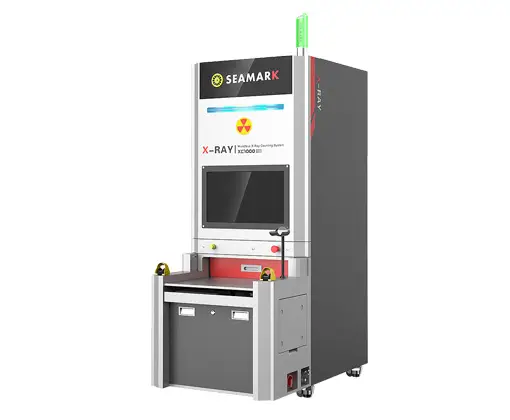

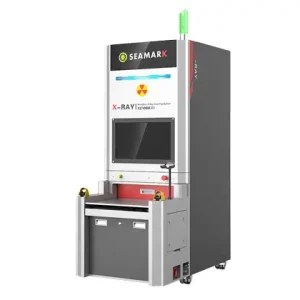

XC1000 Offline Reel Counter

XC1100 is a micro-focus X-ray full-automatic counting machine.

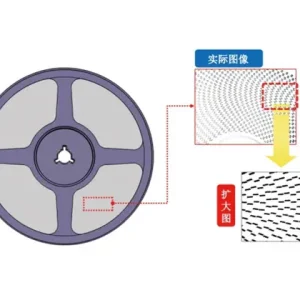

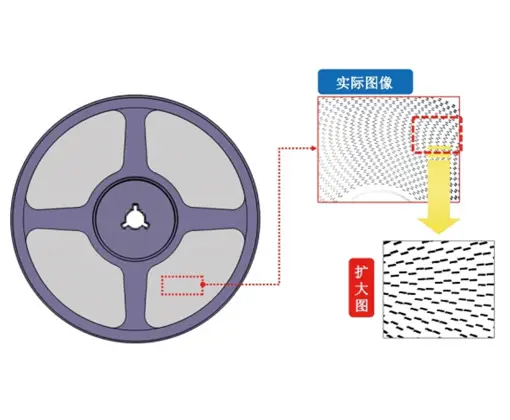

It uses X-Ray perspective principle and independently developed algorithm software with AI function, which can quickly and accurately calculate the number of materials in the material reel. This X-Ray chip counter also has MES Data upload and automatic printing of material labels. To achieve the function of improving work efficiency and saving manpower.

As a professional X-Ray reel counter supplier, Seamark trys our best to provide good products and service for you.

Product Information

Description
Reviews (0)

Compared with traditional counting/pointing machine, there is no need to unpack or transfer the reel in the X-Ray reel counter.
Suitable for all types of chip components, SMD devices above 01005.
Accuracy of counting reaches more than 99.99%.
Measurable reel diameter is 7-15 inches.
Innovative detection environment and algorithm with AI function.
Realize automatic counting.

Specification of XC1000 Offline Reel Counter

X-Ray Tube Source Specification
Type	Sealed Micro-Focus X-Ray Tube
Voltage	80 KV
Operating Voltage Range	30-80KV
Operating Current Range	200 -700μA
Max Output Power	56W
Micro Focus Spot Size	30μm-40μm

Flat Panel Detector Specification
Type	TFT Industrial Dynamic FPD
Pixel Matrix	3072×3072
Field of View	427mm×427mm
Resolution	3.6Lp/mm
Frame（1×1)	6fps
A/D Conversion Bit	16bits

Dimensions	L800mm×W1260mm×H1950mm
Input Power	220V 10A 50-60HZ
Max Sample Size	450mm×450mm
Control System	Industrial PC WIN7/ WIN10 64bits
Net Weight	Approx 800KG
Radiation	＜1μSv/h
