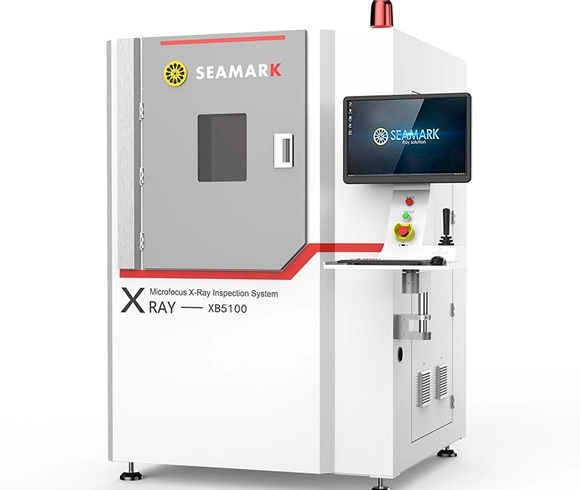

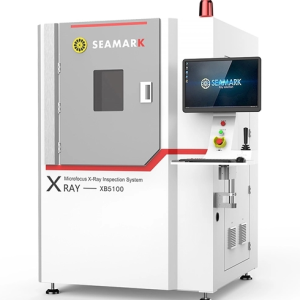

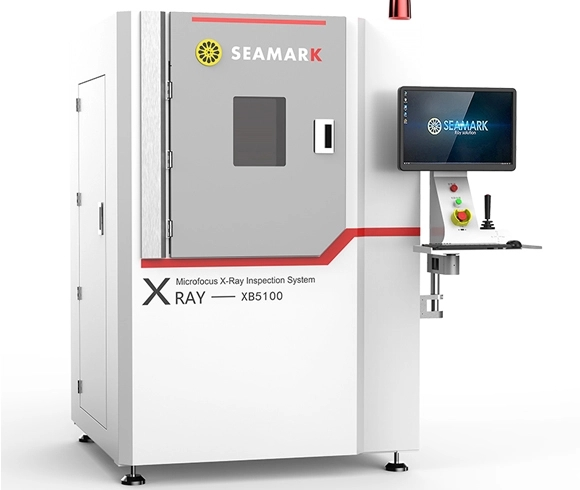

XB5100-Winding Battery Inspection

The Seamark XB5100 X-Ray inspection machine, equipped with expandable inspection capabilities such as plate fold and tab fold, and flat panel detector image acquisition technology, is an excellent choice for inspecting winding process-type batteries in the lithium battery industry. This X-Ray inspection system is well-suited for examining a variety of batteries, including aluminum shell batteries, cylinders, buttons, energy storage/power winding, and lithium digital soft packs.

Product Information

Description
Reviews (0)

Features of XB5100-Winding Battery Inspection

High Configuration Adopt the Hamamatsu X-ray tube, which is one of the best X-ray tubes around the world.
Advanced Algorithm
Equip with Seamark Self-developed algorithm software.
Professional Service
Professional R&D and after-sale service team that can provide in-time solutions.

Specification of XB5100-Winding Battery Inspection

X-ray Tube Parameters
Tube Type	Reflective Sealed Micro-Focus Ray Source
Tube Voltage Range	40-90KV/40-130KV
Tube Rurrent Range	10-200uA/10-300uA
Maximum Output Power	8W-39W
Micro Focus Size	5-15um
Receiver Parameters
Flat Panel Type	Amorphous silicon flat panel detector (optional)
Pixel Matrix	1536*1536
Field of View	130mm*130mm
Resolution	5.8Lp/mm
Image Frame Rate (1×1)	20fps
Ad Conversion Bits	16bits
Detection Efficiency And Accuracy Parameters
Repeated Test Accuracy	40um (standard piece measurement)
Detection Speed	≥1.0/detection point (excluding loading and unloading time)
Stage Parameters
Maximum Sample Size	420mmX420mm
Loading Capacity	≤8Kg
Other Parameter
Control System	Industrial computer Win10 (64-bit)
International Radiation Safety Standards	≤1μSV/hr
Equipment Size/Weight	122012601900mm, About 1000Kg
Power Supply	AC220V 10A, 50-60Hz
