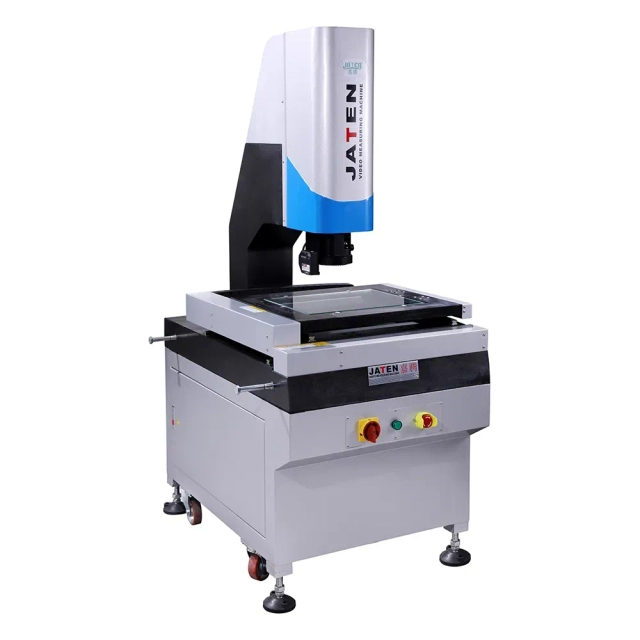

JTDQA-Automatic Video Measuring Machine

1、Instrument Features and Applications:

• High-Precision Granite Construction: The machine features a granite base, cantilever, and granite worktable, ensuring exceptional stability and rigidity.
• Precision Motion System: Equipped with precision ground ball screws and high-accuracy linear guides, driven by Panasonic servo motors (Japan) with dual closed-loop control, providing high-speed, precise positioning and stable motion.

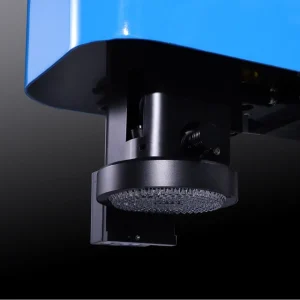

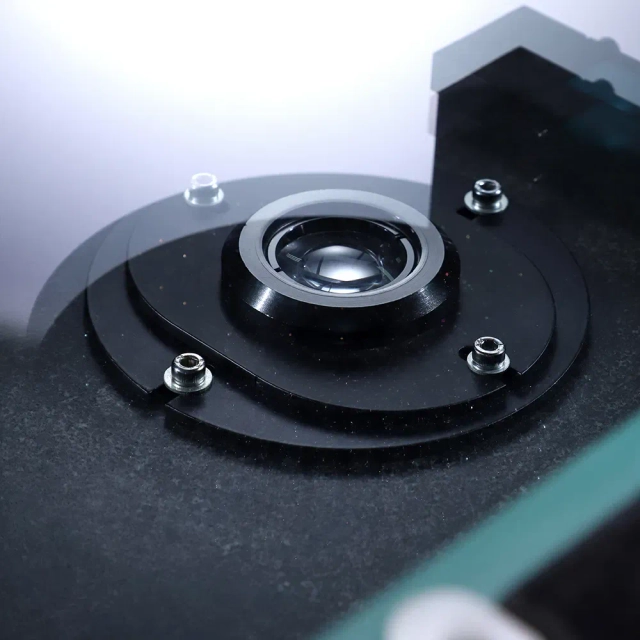

• High-Resolution Imaging: Fitted with a Jaten 2.3-megapixel color camera and our proprietary surface cold light source. The surface illumination consists of 48 independently controlled LED groups, each driven by a constant current source, with continuously adjustable intensity to ensure high-quality measurement images.
• Infrared Positioning Indicator: Facilitates rapid alignment of workpieces for measurement, significantly improving measurement efficiency.
• Embedded Motor Control Module: Developed in-house to enhance motor response speed and simplify the interface between the instrument and PC. The PC connects via USB and S-terminal cables.
• Automatic Zoom Lens Connection: The system automatically compensates for lens magnification changes without requiring manual recalibration.
• Quickmeasuring Software: Our dedicated fully automated measurement software allows programmable automatic inspection, greatly enhancing measurement efficiency.

2、Products Customized to Your Needs – Empowering Your Unique Applications
To meet the diverse requirements of our customers, we offer comprehensive product customization services, including functionality, dimensions, interfaces, and more. Feel free to contact us for detailed customization options.

3、Features

• Marble base&beam structure, in this structure, the work stage not moving i.e. the measured object not moving so when you do the high-speed measuring, it does not affect the measuring accuracy.
• With automatic zoom lens, after finishing automatic zoom no need to manually re-calibration accuracy.
• The image navigation system allows you to quickly locate the measured position of the measured object.
• Our company’s automatic measurement software QuickMeasuring programmable automatic detection.

4、Product Introduction

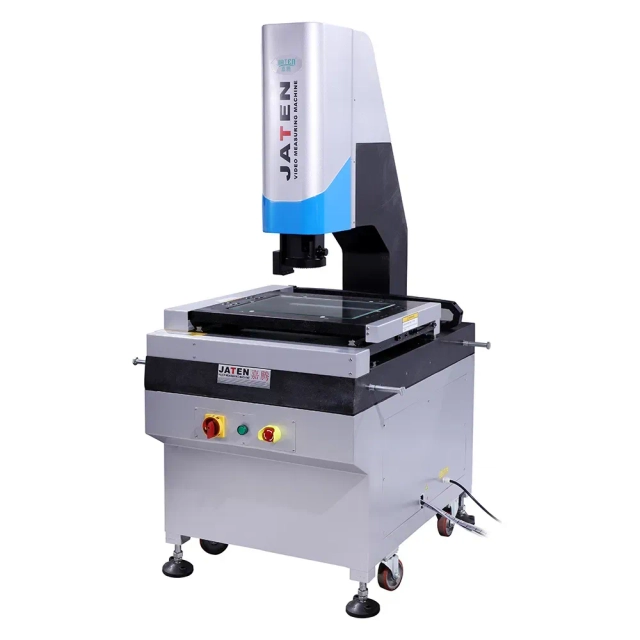

• The JTDQA Vision Measuring System is an optical inspection equipment designed for precise dimensional measurement and contour analysis. It features adjustable LED cold illumination and supports optional 3D modules with a UK Renishaw MCP-K2 touch probe for enhanced measurement capabilities.
• The system supports a maximum load capacity of 35kg or 30kg, making it suitable for inspection of small to medium-sized components. Standard delivery includes measuring software, CCD camera, linear scale, operation joystick, working cupboard, and essential documentation.
• The system is well-suited for industrial metrology, quality inspection, component manufacturing, and laboratory applications.

5、Software Features

• The design of Quickmeasuring geometry measuring software is easy to study——configured in the Microsoft windows platform, like Word or Excel, it integrates various application designs and presents in complete new Quickmeasuring measuring sofware.
• Quickmeasuring provides multi geometry processing functions——you can use every kind of intuitive function key to get information easily in your work-piece and execute variety of geometry processing in order to get your needed coordinate, dimension and outside view etc.
• The program of Quickmeasuring is easy to edit-Quickmeasuring uses teach program to edit and automatically record and write in the process of measuring,the program edition is also be finished simultaneously as soonas measurement has finished. The program can be saved,calling-out and re-execution, You also can put in DXF file to Quickmeasuring and transform it quickly into executable program.
• Quickmeasuring can automatically record measuringresult-after finishing measuring, you can get your needed data,or calculate,recombine and save these data by measuringinformation and image instrument.
• Quickmeasuring can combine existing unit into new one-using the combination of unit construction function key,you can create other new units easily via existing unit.
• Quickmeasuring can set up reference coordinate system-by axis calibration and original point back to zero, you can create ausing coordinate system, Quickmeasuring allows you setting many reference origin points in the same measuring process and freely pointing out the collection between every measuring unit and every reference origin point.

6、Intuitive Measurement Software Interface and Data Export

• The software interface consists of multiple functional sections, including light control, image display, measuring area, and measurement tools, providing an intuitive and efficient workflow for users.
• It supports various measurement functions and geometric analysis for different workpiece types.
• Measurement results can be exported in multiple file formats, including EXCEL, WORD, TXT, and DXF, enabling convenient quality analysis, reporting, and engineering data management.
