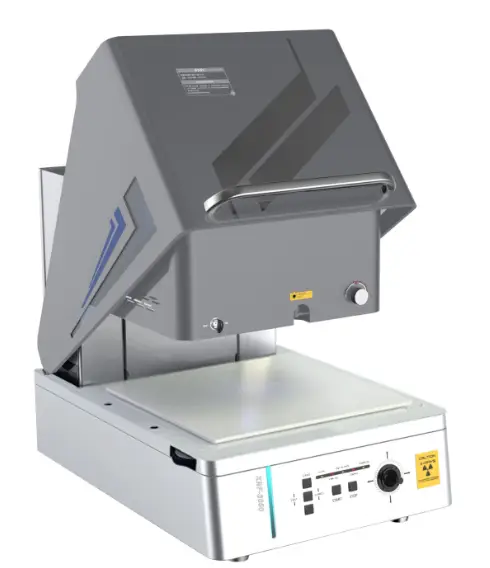

COATING THICKNESS GAUGE XRF-3050
An XRF (X-ray Fluorescence) Coating Thickness Gauge is a high-precision, non-destructive analytical instrument used to measure the thickness of metallic coatings on various substrates.
Product Information
| project | model |
|---|---|
| Measure the range of elements | Cl（17）- U（92） |
| Analysis range of the coating layer | Cl（17）/Li（3）- U（92） |
| EFP algorithm | standard configuration |
| Analysis software | Five coatings and 10 elements were analyzed simultaneously |
| Different layers are the same Elemental detection ability | standard configuration |
| Software operation | Humanized closed software, automatically judge the fault prompt correction and operation steps, to avoid misoperation |
| X-ray unit | Microfocused ray tube |
| collimator | Φ0.5mm；Φ0.2mm；Two collimators arbitrarily choose one |
| Microlight focusing technology | The most recent ranging spot diffusivity is less than 10% |
| measured range | With the distance compensation function, can change the measurement distance of concave and convex samples, the zoom distance can reach 0-90mm |
| Sample observation | 1 / 2.7 ” color CCD, zoom function |
| Focus method | Highly sensitive lens, non-inductive autofocus |
| enlargement factor | Optical 18-46X with a digital magnification of 20-200 x |
| Instrument size | 550mm760mm635mm |
| Mobile mode of the sample table | Manual XY slide table |
| Available range | 100mm*150mm |
| instruments weight | 100KG |
| Wood box size | Length 1012mm * width 637mm * height 737mm |
| Wood box weight | 26KG |
| Other attachments | One set of computer, accessory box, twelve element piece, electroplating liquid measuring cup (optional), standard plate (optional) |
| X-ray standard | DIN ISO 3497, DIN 50987, ASTM B 568 |
