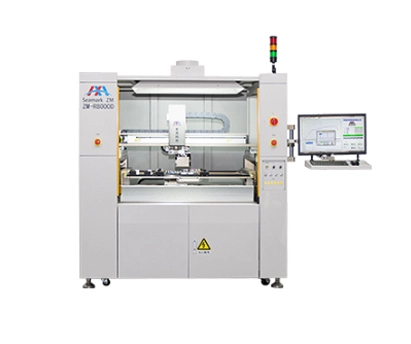

BGA Rework Station

The machine has stable temperature control, a large HD touch screen, HD optical alignment and intelligent control as well as removable infrared temperature zone and other advantages. As one of the most reputable and professional BGA Rework Station suppliers, Zhuomao promises to produce the best products with good quality.

Thông tin sản phẩm

Stable Temperature Control

Three temperature zones independently control, heated by convection hot air, the height of the bottom temperature zone is adjustable, the top temperature zone has a built-in vacuum suction nozzle for chip adsorption, with negative pressure monitoring and pressure protection device.
02

Large HD Touch Screen

Large HD touch screen operation with a variety of operation modes, real-time display, and edit temperature curve, each group of temperature curve can be set to 8 segments, can store 100 groups of temperature curve, can automatically analyze the curve, read through touch screen control.
03

Removable Infrared Temperature Zone

The IR preheating zone is heated by a carbon fiber infrared tube and protected by a high-temperature resistant microcrystalline panel. It can move left and right to facilitate maintenance of large and irregular PCBA.
04

HD Optical Alignment and Intelligent Control

Equipped with automatic feeding device, using Panasonic PLC and high-precision temperature control module, high-precision K-type thermocouple, dynamic PID multi-loop closed-loop control selective reflow soldering process, the accuracy can reach ± 1 ℃. Over temperature protection alarm function, software encryption and foolproof function.

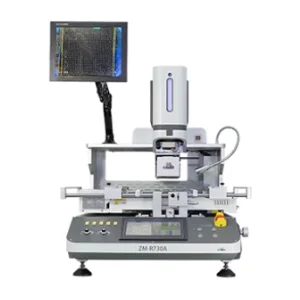

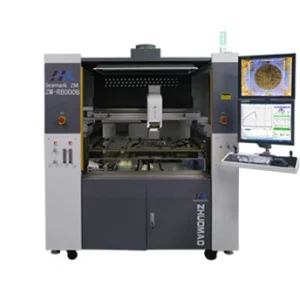

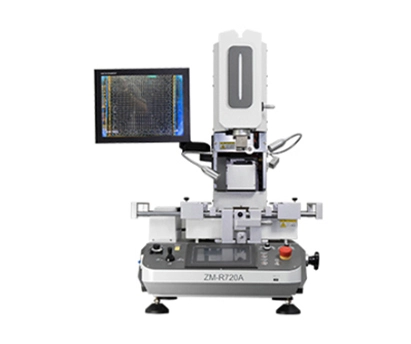

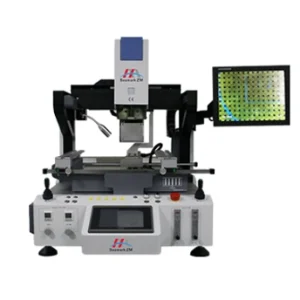

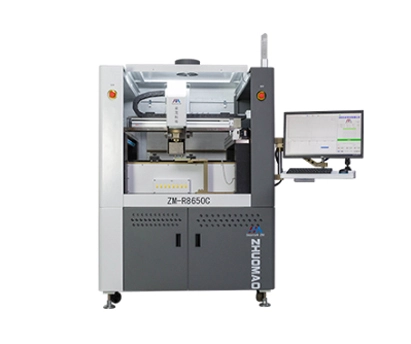

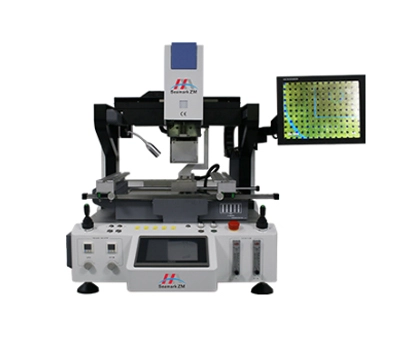

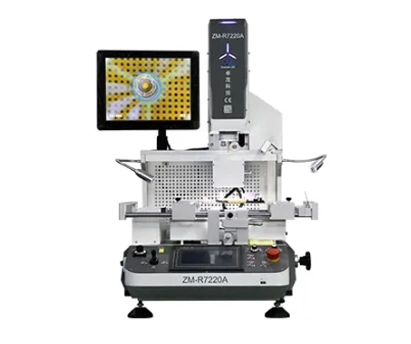

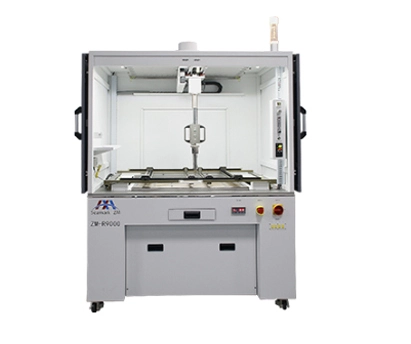

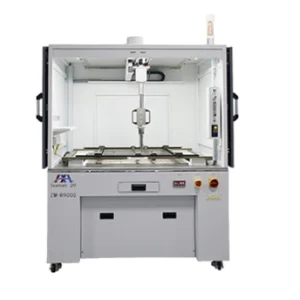

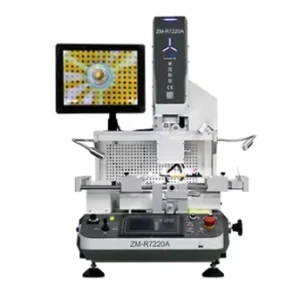

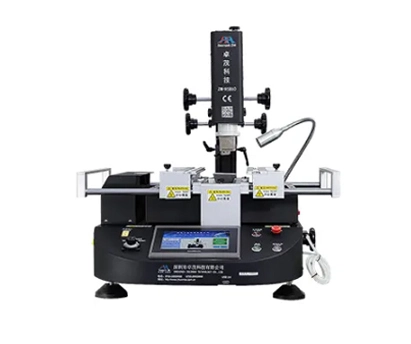

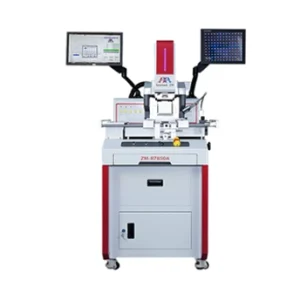

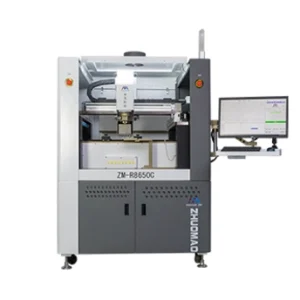

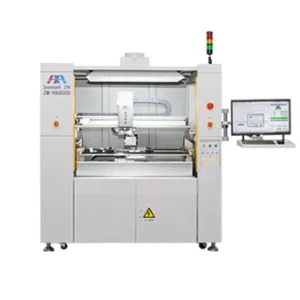

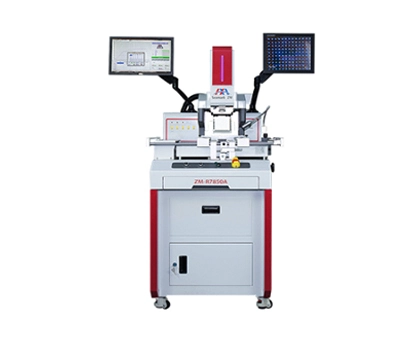

BGA Rework Station	ZM-R5860 Hot Air, ZM-R720A LED/Micro, ZM-R7220A, ZM-R730A Large Board, ZM-R7830A Smart Optical, ZM-R7850A Smart Optical, ZM-R8000B Large Precision, ZM-R8000D Large Precision, ZM-R8650 Fully Automatic, ZM-R9000
